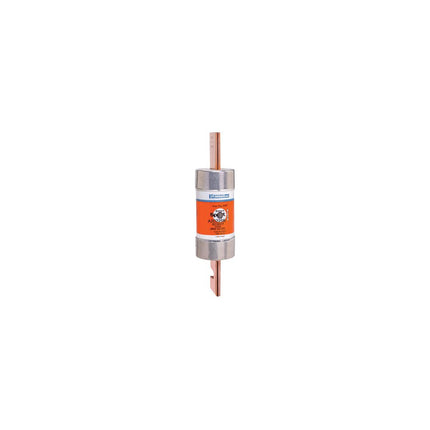

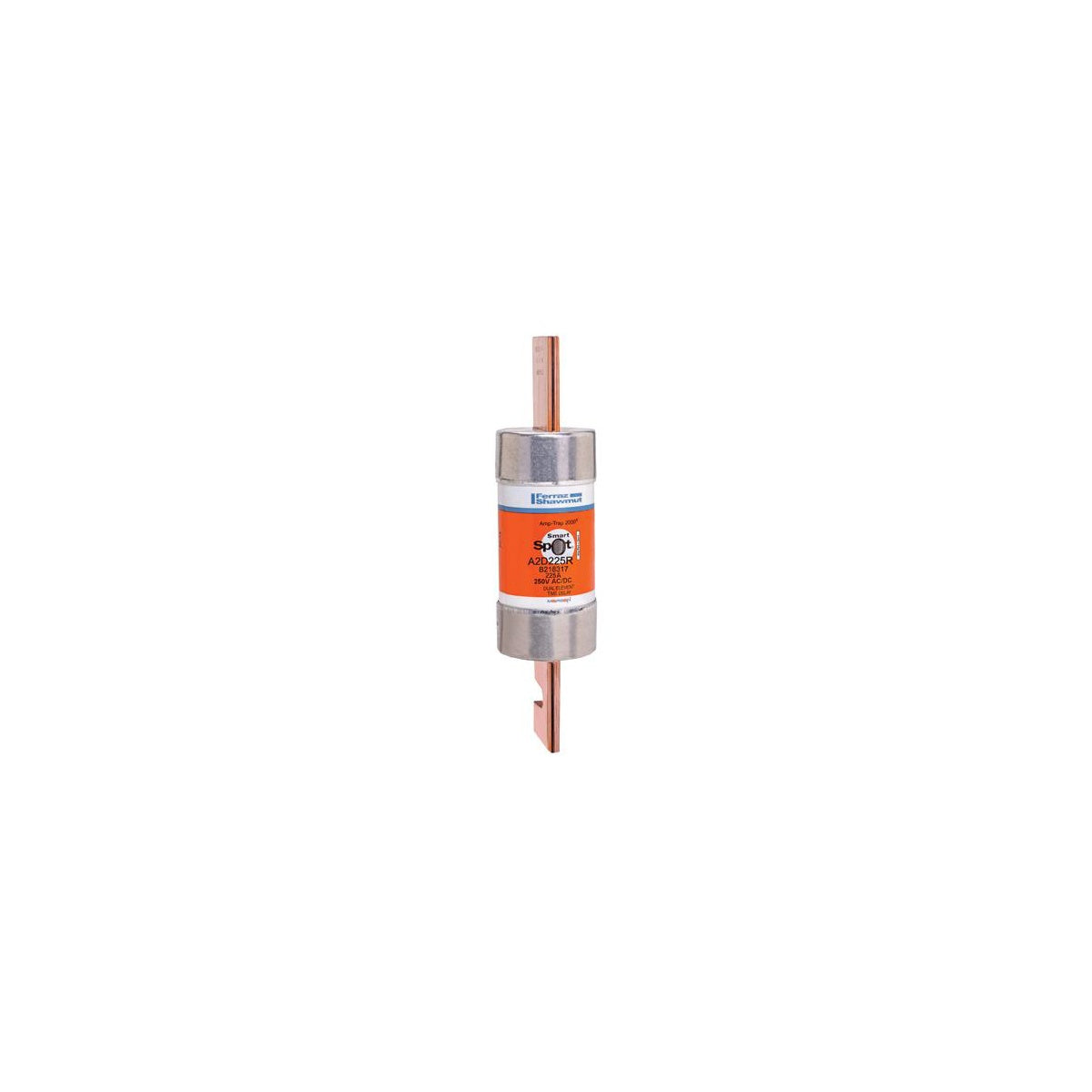

Fuse Amp-Trap 2000® 250V 225A Time-Delay Class RK1 A2D Series Smart-Spot

The Fuse Amp-Trap 2000® A2D-R Series SmartSpot is a time-delay, Class RK1 fuse designed for reliable protection of motors, safety switches, transformers, branch circuits, disconnects, and control panels. It provides IEC Type 2 "no damage" protection for main, feeder, and branch circuits serving motor and non-motor loads. This fuse features a visual SmartSpot indicator for quick blown fuse identification and is suitable for use by electrical distributors and switchgear suppliers requiring advanced lighting solutions and wire and cable circuit protection.

Specifications

• Voltage Rating: 250 VAC/DC
• Amperage Rating: 225 A
• Interrupting Rating: 200 kA
• Fuse Class: Class RK1
• Dimensions (L x W x H): 8.63 in x 2.06 in x 2.06 in
• Connection Type: Blade
• Mounting Type: Clip
• Insulation Material: PolyTube
• Product Weight: 1.64 lbs
• Manufacturer Part Number: A2D225R

Features

• SmartSpot solid-state visual blown fuse indicator for easy status verification
• Time-delay characteristic to accommodate motor starting and transformer inrush currents without nuisance opening
• Dual rated for 600 VAC and 600 VDC applications
• Self-certified 300kA interrupting rating with UL witnessed testing
• Extremely current-limiting to reduce peak let-thru currents and minimize damage
• Recommended for arc flash energy reduction
• Easy 2-to-1 selectivity to prevent nuisance shutdowns and blackouts
• Rejection-style design to prevent replacement errors when used with recommended fuse blocks
• High-visibility orange label for quick identification
• Reduces inventory by replacing older Class RK5, K, and H fuses
• Fiberglass body provides dimensional stability in harsh industrial environments
