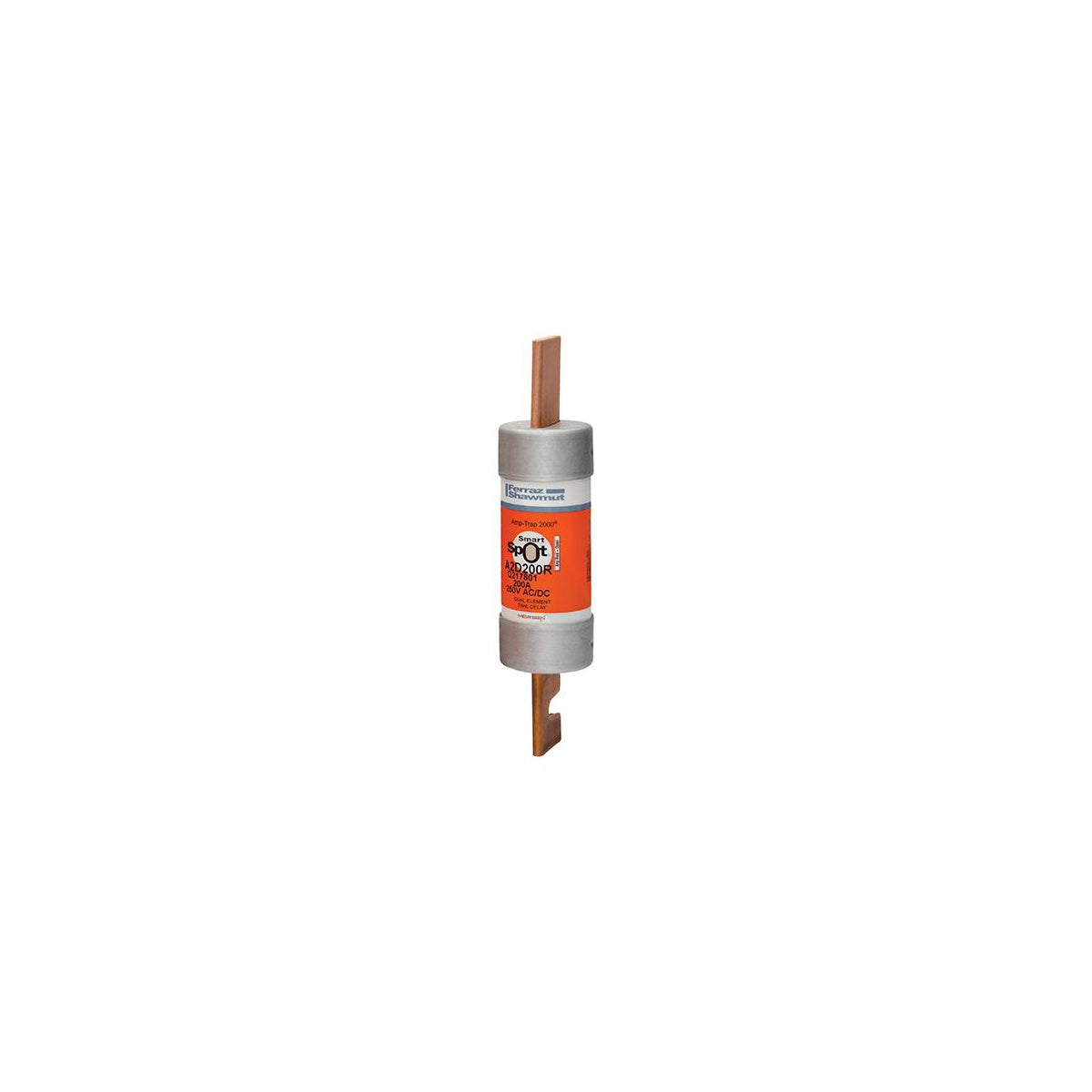

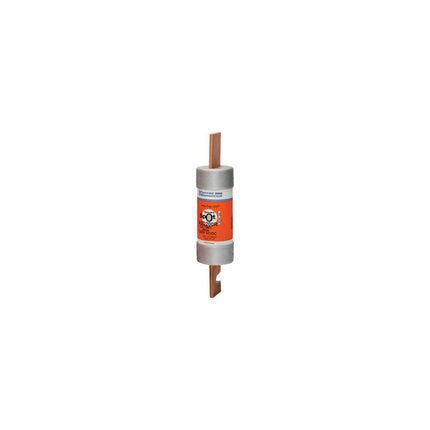

Fuse Amp-Trap 2000® 250V 200A Time-Delay Class RK1 A2D Series Smart-Spot

The Amp-Trap 2000 SmartSpot time-delay A2D-R fuse provides IEC Type 2 "no damage" protection for mains, feeders, and branch circuits serving motor and non-motor loads. Designed for electrical distributors and switchgear suppliers, this fuse offers fast interruption under extreme fault conditions to protect motor starters, switches, transformers, and control panels while allowing time-delay for motor inrush currents. It is suitable for use in general-purpose circuits and can replace older 250V Class H, K, or RK5 fuses.

Specifications

• Amperage Rating: 200 A
• Voltage Rating: 250 V AC/DC
• Interrupt Rating: 200 kA
• Fuse Class: Class RK1
• Dimensions (L x W x H): 7.13 in x 1.56 in x 1.56 in
• Diameter: 1.56 inches
• Mounting Type: Clip
• Connection Type: Blade
• Insulation Material: PolyTube
• Product Weight: 0.7520 lb
• Manufacturer Part Number: A2D200R
• Manufacturer: Mersen

Features

• Visual SmartSpot fuse operation indicator for quick status identification
• Time-delay characteristic ideal for motor starting and transformer inrush currents
• High interrupting capacity to prevent damage to motor starters and circuit components
• Replacement for older 250V Class H, K, and RK5 fuses to reduce inventory
• Orange label for rapid identification
• Durable fiber glass body ensuring dimensional stability in industrial environments
• Rejection system to prevent replacement errors when used with recommended fuse holders
