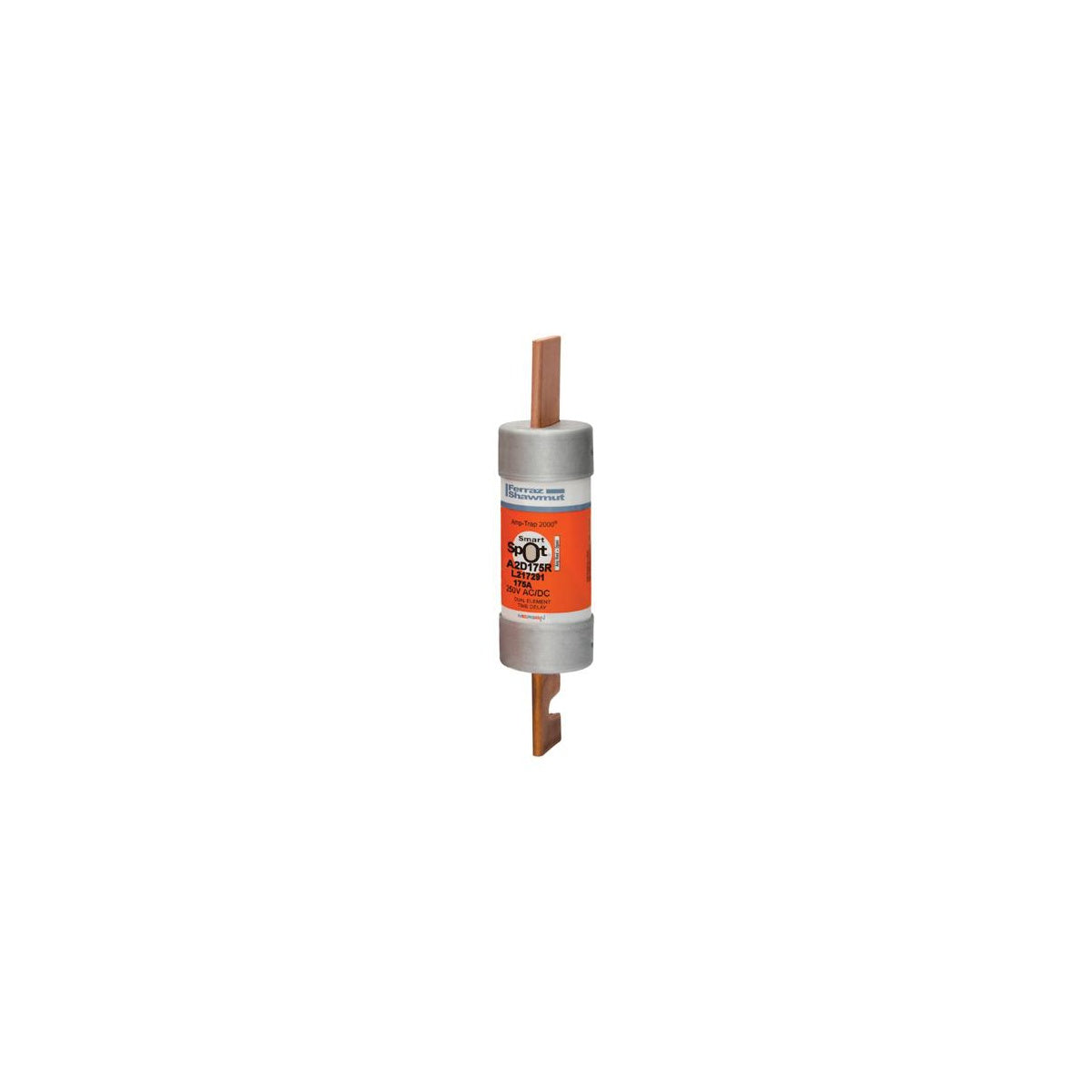

Fuse Amp-Trap 2000® 250V 175A Time-Delay Class RK1 A2D Series Smart-Spot
SKU: #194202
Part: #A2D175R
UPC: 782001991074
Fuse Amp-Trap 2000® 250V 175A Time-Delay Class RK1 A2D Series Smart-Spot
SKU: #194202
Part: #A2D175R
UPC: 782001991074
Description
Fuse Amp-Trap 2000® 250V 175A Time-Delay Class RK1 A2D Series Smart-Spot
The Amp-Trap 2000 SmartSpot A2D-R fuse provides IEC Type 2 "no damage" protection for mains, feeders, and branch circuits serving motor and non-motor loads. Designed for electrical distributors and switchgear suppliers, this time-delay fuse offers fast interruption under extreme fault conditions to protect motor starters, switches, transformers, and control panels, while allowing for motor inrush currents. It is suitable for general-purpose circuits and can replace older 250V Class H, K, or RK5 fuses.
Specifications
- Manufacturer: Mersen
- Manufacturer Part #: A2D175R
- Amperage Rating: 175 A
- Voltage Rating: 250 V AC/DC
- Interrupt Rating: 200 kA
- Fuse Class: Class RK1
- Dimensions (L x W x H): 7.13 in x 1.56 in x 1.56 in
- Diameter: 1.56 inches
- Weight: 0.7520 lbs
- Mounting Type: Clip
- Connection Type: Blade
- Insulation Material: PolyTube
- Application: Motors, Safety switches, Transformers, Branch circuit protection, Disconnects, Control panels, All general-purpose circuits
Features
- IEC Type 2 "no damage" time-delay protection
- SmartSpot visual fuse operation indicator
- Fast interruption for maximum short circuit protection
- Time-delay characteristic to accommodate motor inrush currents
- Compatible replacement for older Class H, K, or RK5 fuses
- PolyTube insulation for dimensional stability in industrial environments
- Orange label for easy identification
- Designed to reduce inventory by replacing multiple fuse classes
- Engraved manufacturing date and catalog number for traceability
- Blade connection with clip mounting for ease of installation
