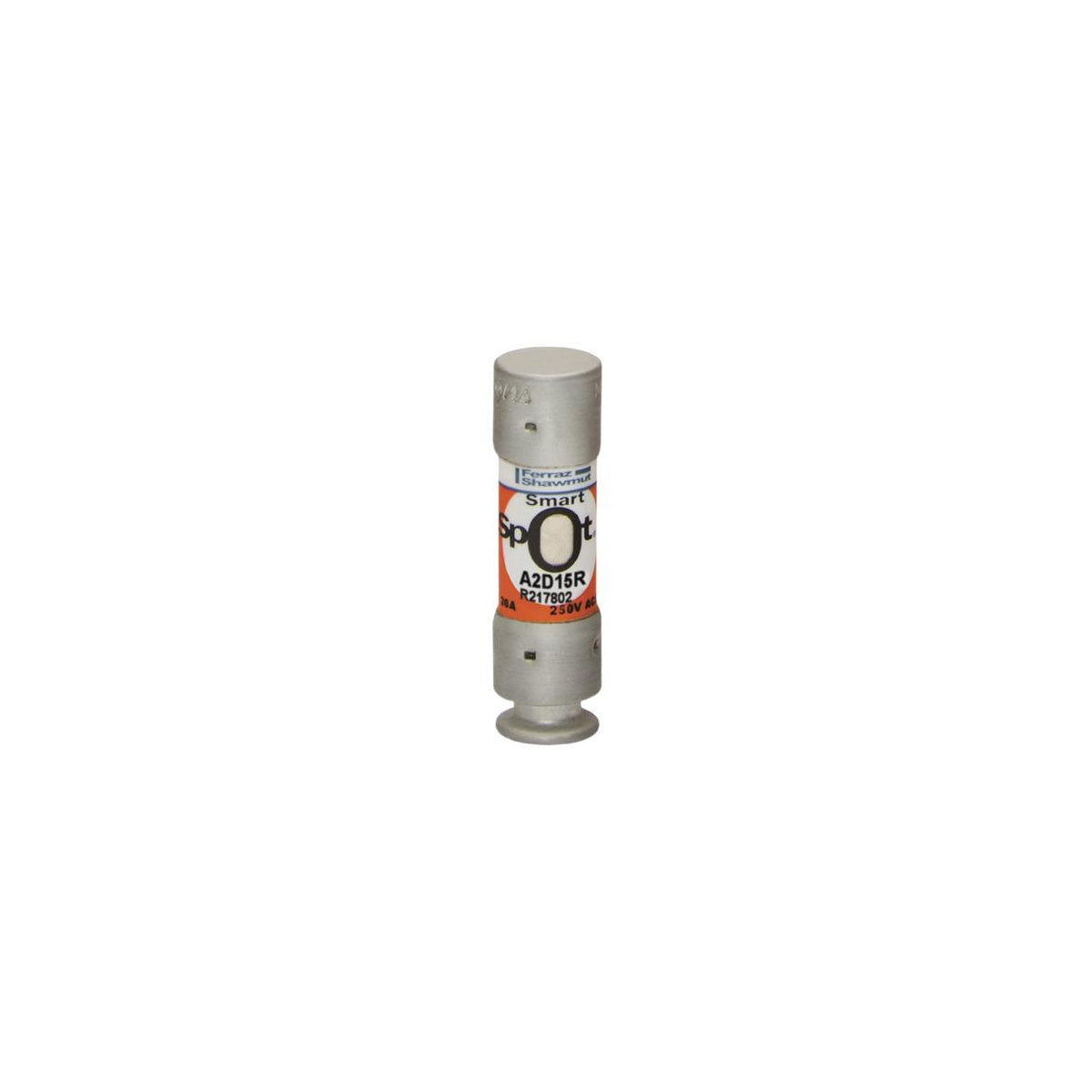

Fuse Amp-Trap 2000® 250V 15A Time-Delay Class RK1 A2D Series Smart-Spot – Electrical Fuse

The Fuse Amp-Trap 2000® 250V 15A Time-Delay Class RK1 A2D Series Smart-Spot provides IEC Type 2 "no damage" protection for mains, feeders, and branch circuits serving motor and non-motor loads. Designed for use in motors, safety switches, transformers, branch circuit protection, disconnects, and control panels, this fuse offers reliable time-delay characteristics suitable for motor in-rush currents while delivering fast interruption under extreme fault conditions. It is an ideal solution for electrical distributors and lighting solutions providers seeking dependable wire and cable protection and switchgear supplier applications.

Specifications

• Amperage Rating: 15 A
• Voltage Rating: 250 V
• Fuse Class: Class RK1
• Interrupt Rating: 200 kA
• Dimensions (L x W x H): 2 in x 0.56 in x 0.56 in
• Diameter: 0.56 inches
• Mounting Type: Clip
• Connection Type: Ferrule
• Insulation Material: PolyTube
• Product Weight: 0.0370 lbs
• Manufacturer: Mersen
• Manufacturer Part Number: A2D15R

Features

• SmartSpot visual fuse operation indicator for quick status identification
• Time-delay design to accommodate motor starting and transformer in-rush currents without nuisance blowing
• Provides fast-acting protection for short circuits to prevent damage to motor starters, switches, and circuit components
• Compatible replacement for older 250V Class H, K, or RK5 fuses
• Orange labeling for easy identification
• Fiber glass body construction ensures dimensional stability in industrial environments
• Designed to reduce inventory by replacing multiple fuse classes
• Engraved manufacturing date and catalog number for durable identification
