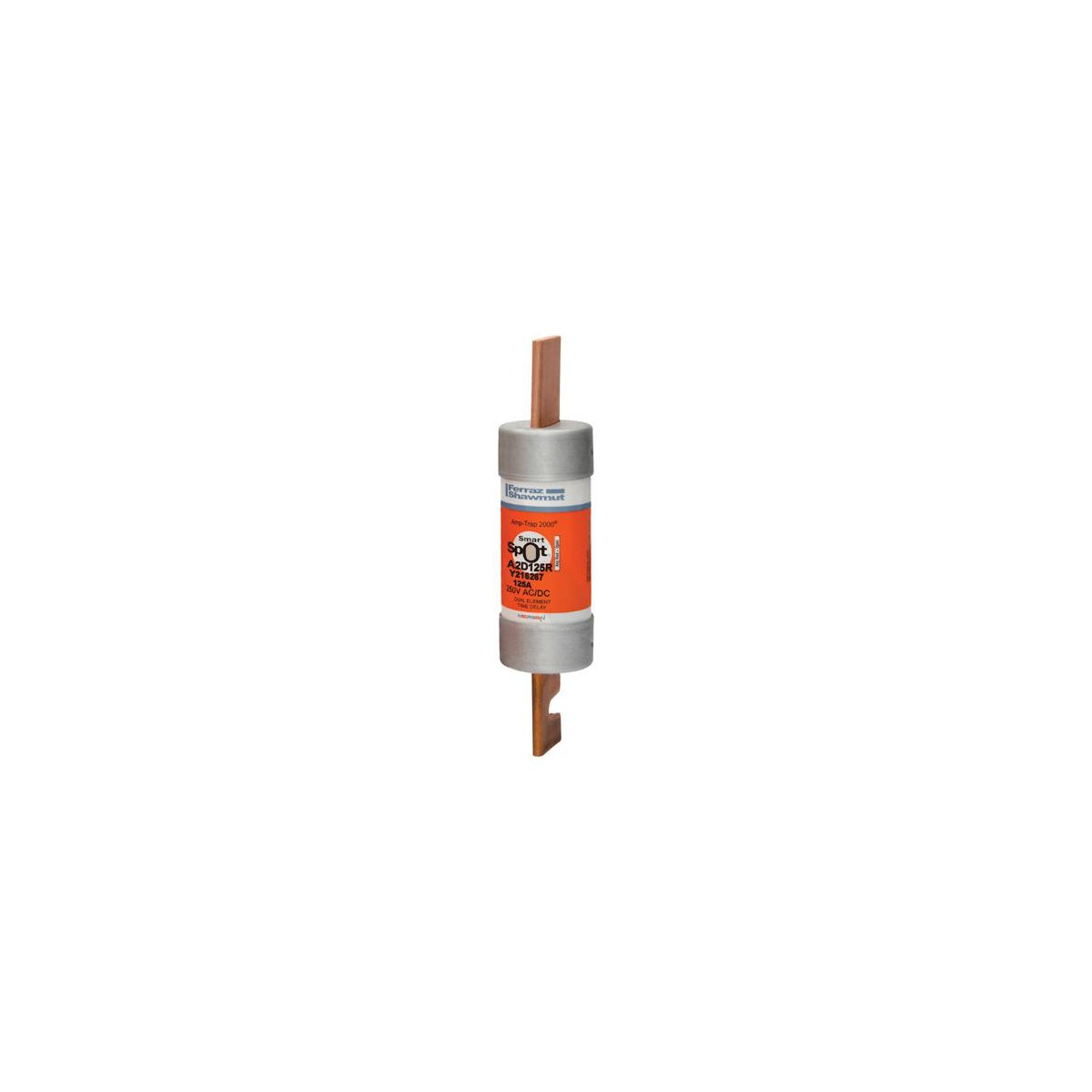

Fuse Amp-Trap 2000® 250V 125A Time-Delay Class RK1 A2D Series Smart-Spot
SKU: #194181
Part: #A2D125R
UPC: 782001991050
Fuse Amp-Trap 2000® 250V 125A Time-Delay Class RK1 A2D Series Smart-Spot
SKU: #194181
Part: #A2D125R
UPC: 782001991050
Description
Fuse Amp-Trap 2000® 250V 125A Time-Delay Class RK1 A2D Series Smart-Spot
The Amp-Trap 2000 SmartSpot time-delay A2D-R fuse provides IEC Type 2 "no damage" protection for mains, feeders, and branch circuits serving motor and non-motor loads. Designed for use by electrical distributors and switchgear suppliers, this fuse offers fast opening under extreme fault conditions to protect motor starters, switches, and circuit components while allowing time-delay for motor inrush currents. It is suitable for applications including motors, safety switches, transformers, branch circuit protection, disconnects, and control panels in general-purpose circuits.
Specifications
- Manufacturer: Mersen
- Manufacturer Part #: A2D125R
- Fuse Class: Class RK1
- Amperage Rating: 125 A
- Voltage Rating: 250 V
- Interrupt Rating: 200 kA
- Dimensions (L x W x H): 7.13 in x 1.56 in x 1.56 in
- Diameter: 1.56 inches
- Mounting Type: Clip
- Connection Type: Blade
- Insulation Material: PolyTube
- Product Weight: 0.7520 lbs
- UPC: 782001991050
Features
- IEC Type 2 "no damage" protection for motors and non-motor loads
- Time-delay characteristic to accommodate motor inrush currents
- Fast-acting under extreme fault conditions for maximum short circuit protection
- SmartSpot visual fuse operation indicator for quick status verification
- Replacement for older 250V Class H, K, or RK5 fuses
- PolyTube insulation for durable and stable performance in industrial environments
- Clip mounting for secure installation
