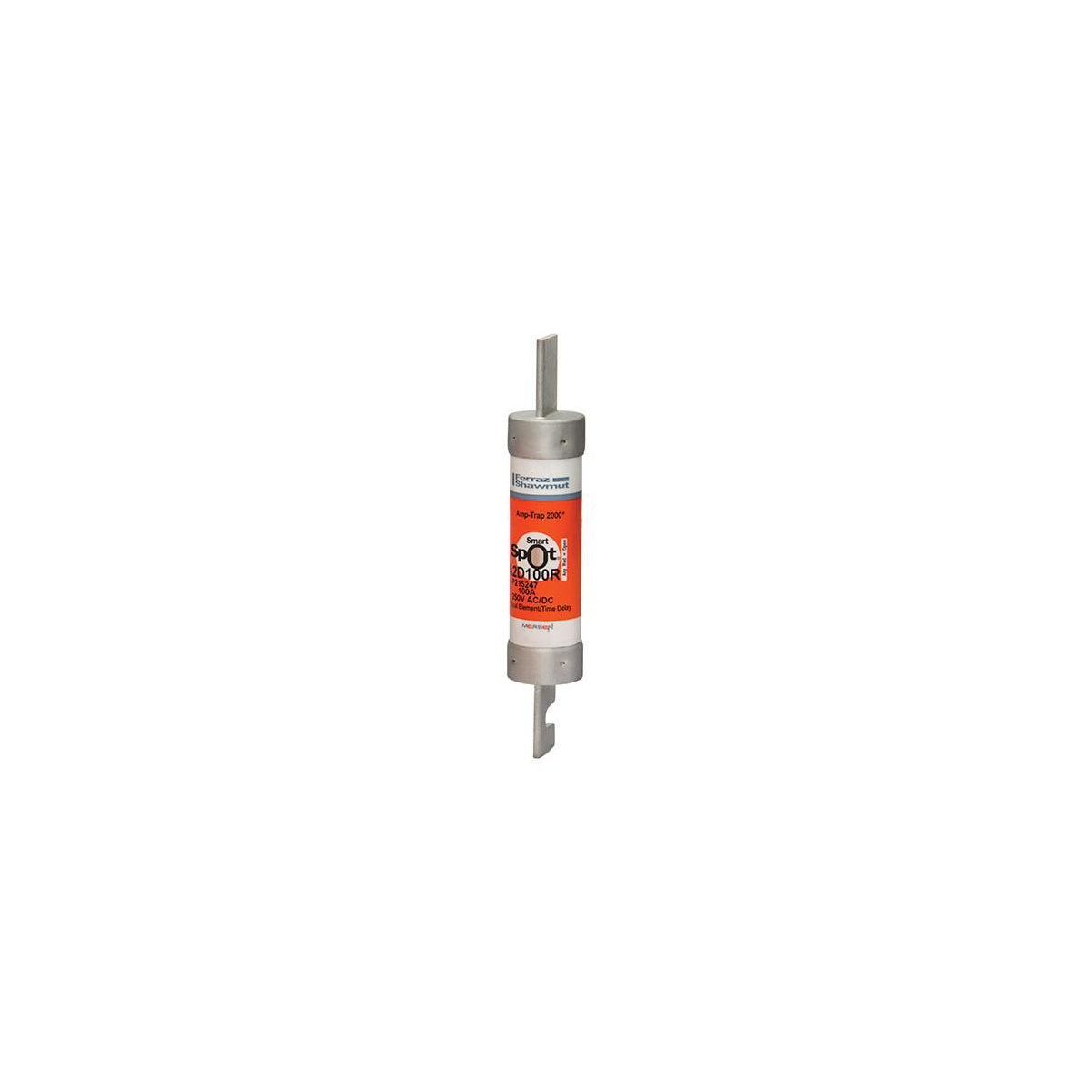

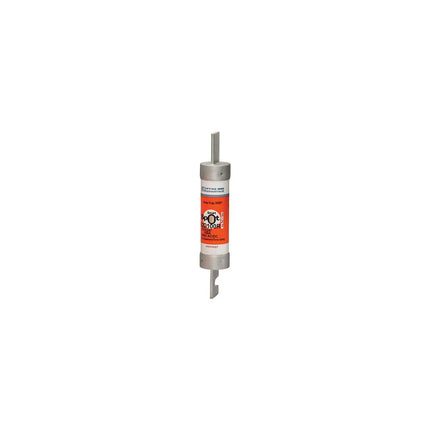

Fuse Amp-Trap 2000® 250V 100A Time-Delay Class RK1 A2D Series Smart-Spot

The Amp-Trap 2000 SmartSpot time-delay A2D-R fuse is designed to provide IEC Type 2 "no damage" protection for mains, feeders, and branch circuits serving both motor and non-motor loads. It offers fast opening under extreme fault conditions to protect motor starters, switches, and other circuit components, while allowing time-delay for motor inrush currents. This fuse is suitable for use in motors, safety switches, transformers, branch circuit protection, disconnects, and control panels, making it an essential component for electrical distributors and switchgear suppliers.

Specifications

• Manufacturer: Mersen
• Manufacturer Part #: A2D100R
• Fuse Class: Class RK1
• Amperage Rating: 100 A
• Voltage Rating: 250 V
• Interrupt Rating: 200 kA
• Dimensions (L x W x H): 5.88 in x 1.06 in x 1.06 in
• Diameter: 1.06 inches
• Weight: 0.2950 lb
• Connection Type: Blade
• Mounting Type: Clip
• Insulation Material: PolyTube
• UPC: 782001991012

Features

• Provides IEC Type 2 "no damage" protection to motors and general-purpose circuits
• Time-delay design accommodates motor inrush currents
• Fast opening under extreme fault conditions for maximum short circuit protection
• Compatible replacement for older 250V Class H, K, or RK5 fuses
• SmartSpot indicator for easy fuse status identification
