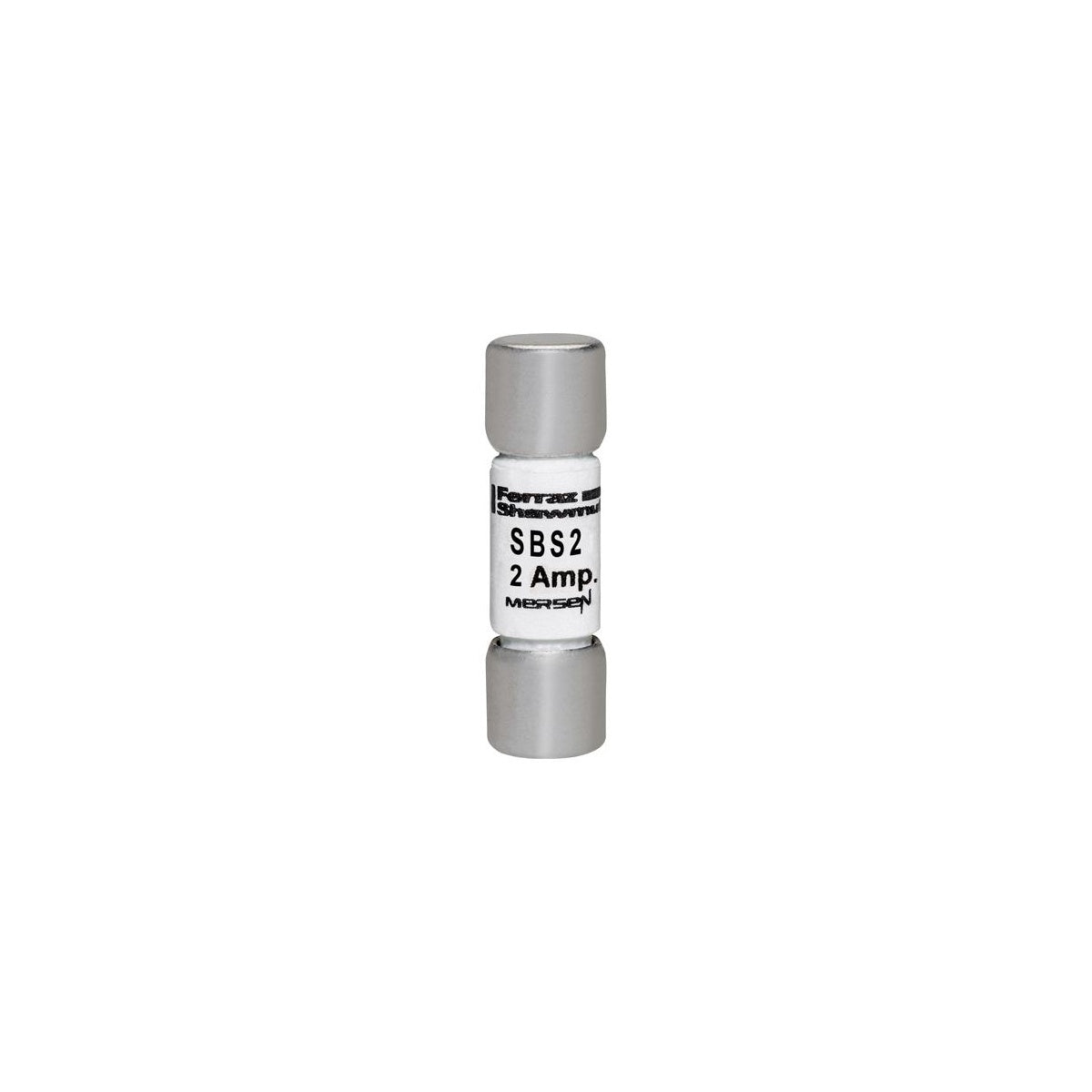

Fuse 600V 2A Fast-Acting Midget SBS Series – Fast-Acting Ferrule Fuse

The Fuse 600V 2A Fast-Acting Midget SBS Series by Mersen is designed for general purpose protection in control circuits, lighting ballasts, meter circuits, and electronic circuits. This fast-acting ferrule fuse is engineered to meet the demands of smaller equipment and components, making it suitable for electrical distributors and lighting solutions requiring compact, reliable wire and cable protection. It features a unique small size with a full 600VAC rating and a high interrupting rating, ensuring safety and performance in various industrial applications.

Specifications

• Manufacturer: Mersen
• Manufacturer Part #: SBS2
• Voltage Rating: 600 VAC
• Amperage Rating: 2 A
• Interrupting Rating: 100 kA RMS
• Fuse Class: Midget
• Dimensions: 1.38 in (Length) x 0.41 in (Diameter/Width/Height)
• Mounting Type: Clip
• Connection Type: Ferrule
• Insulation Material: GMG
• Product Weight: 0.0160 lbs

Features

• Fast-acting fuse providing quick circuit protection
• Compact size optimized for smaller equipment and components
• Full 600VAC rating for all ampere ratings per UL Standard 248-14 and CSA No. 59.2
• High interrupting rating of 100kA RMS, superior to typical 10kA ratings of other brands
• Fiberglass body offers dimensional stability in harsh industrial environments
• Non-interchangeable with other fuse classes for design flexibility and safety
• Compatible with UltraSafe™ fuse holders
