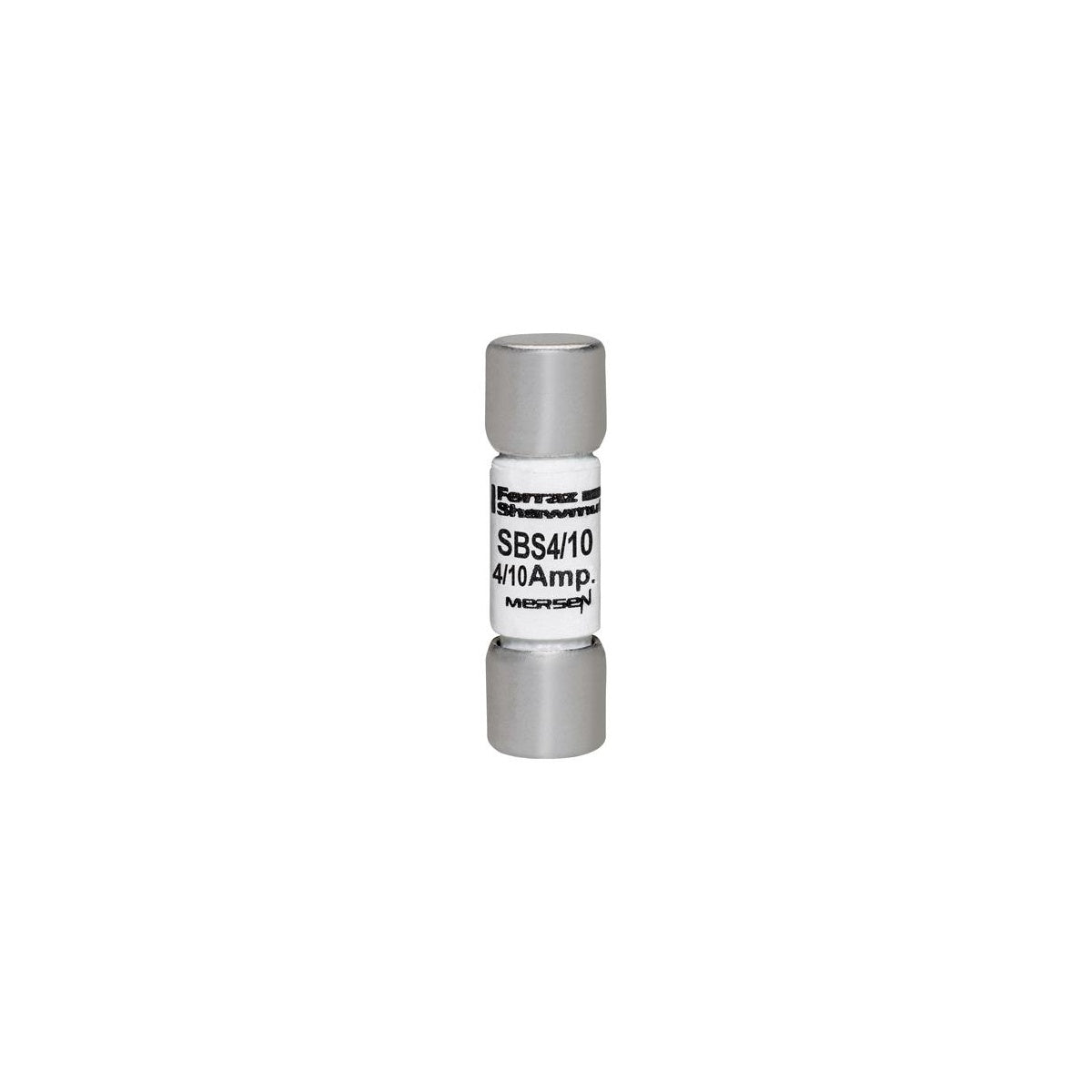

Fuse 600V 0.4A Fast-Acting Midget SBS Series Fuse

The Fuse 600V 0.4A Fast-Acting Midget SBS Series is designed for precise protection in control circuits, lighting ballasts, meter circuits, electronic circuits, and general purpose protection. Manufactured by Mersen, this fuse is engineered to meet the demands of smaller equipment and components while providing reliable fast-acting performance. It is suitable for electrical distributors and switchgear suppliers requiring compact, high-performance wire and cable protection solutions.

Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 0.4 A
• Interrupting Rating: 100 kA RMS
• Fuse Class: Midget
• Dimensions: 1.38 in (Length) x 0.41 in (Width) x 0.41 in (Height)
• Diameter: 0.41 inches
• Mounting Type: Clip
• Connection Type: Ferrule
• Insulation Material: GMG
• Product Weight: 0.0160 lbs
• Manufacturer Part Number: SBS4/10

Features

• Fast-acting fuse optimized for smaller equipment and components
• Unique compact size with dimensions smaller by 1/8" than standard midget fuses
• Full 600 VAC rating for all ampere ratings certified by UL Standard 248-14 and CSA No. 59.2
• High interrupting rating of 100kA RMS, significantly higher than competitors
• Fiberglass body provides dimensional stability in harsh industrial environments
• Non-interchangeable with other fuse classes, ensuring design flexibility
• Compatible with UltraSafe™ fuse holder
