Fuse 250V 2.5A Time-Delay Midget GFN Series Visual
SKU: #196435
Part: #GFN2-1/2
UPC: 782001701376
Fuse 250V 2.5A Time-Delay Midget GFN Series Visual
SKU: #196435
Part: #GFN2-1/2
UPC: 782001701376
Description

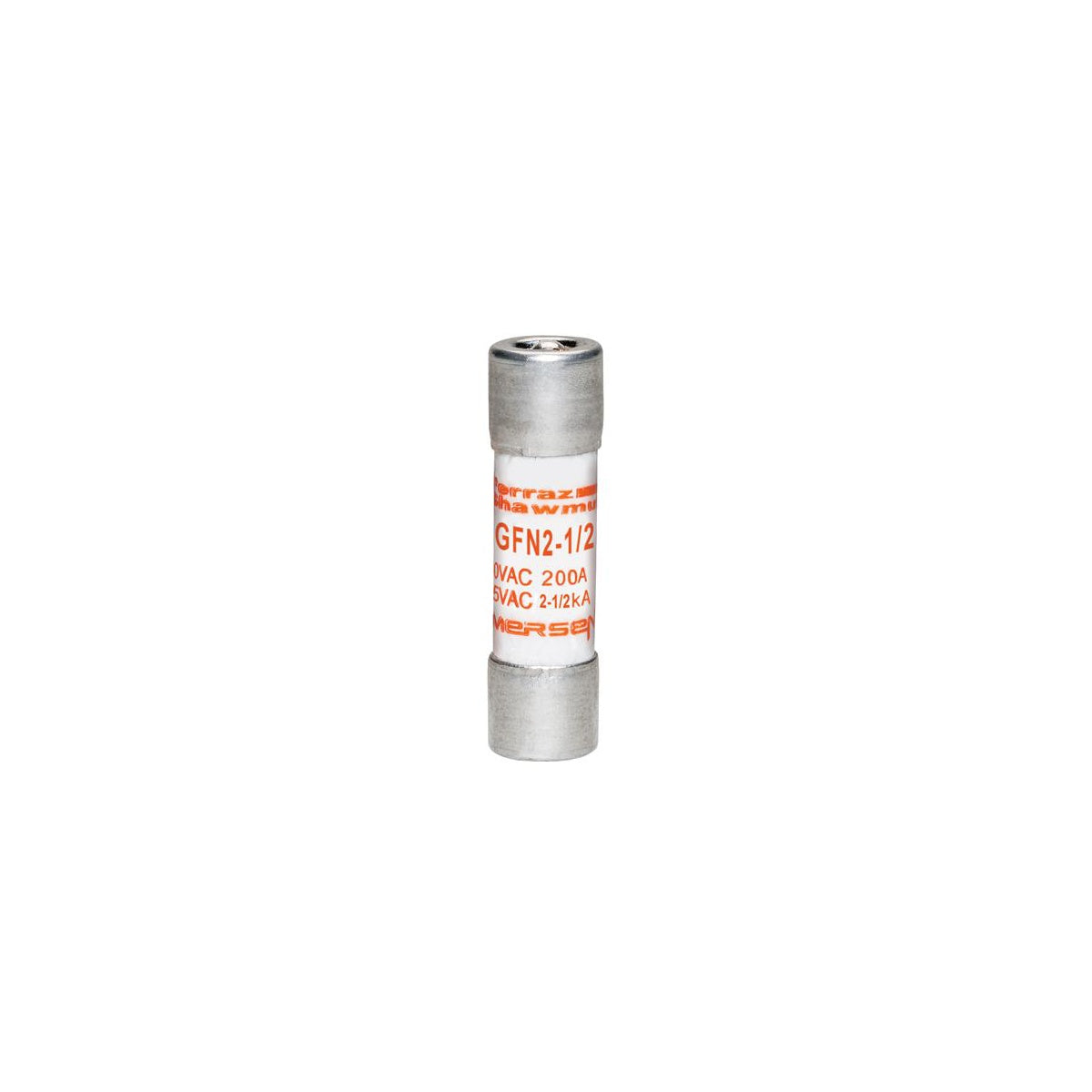

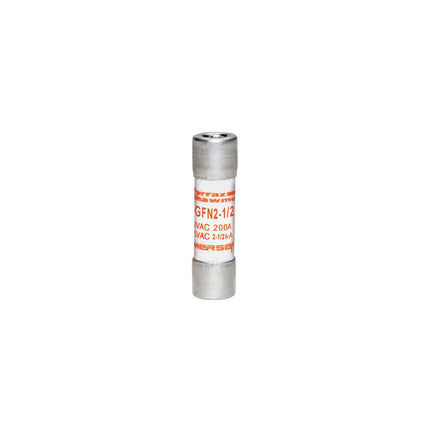

Fuse 250V 2.5A Time-Delay Midget GFN Series Visual Fuse
The Mersen Fuse 250V 2.5A Time-Delay Midget GFN Series Visual Fuse is designed for supplemental protection of circuits requiring time-delay and blown fuse indication, such as solenoid and control circuits. This fuse features a built-in blown fuse indicator that visually signals when the fuse has operated, supporting both local and remote indication. It is suitable for use by electrical distributors and switchgear suppliers needing reliable wire and cable protection solutions.
Specifications
- Manufacturer: Mersen
- Manufacturer Part #: GFN2-1/2
- Voltage Rating: 250 VAC
- Amperage Rating: 2.5 A
- Interrupt Rating: 0.2 kA
- Fuse Class: Midget
- Dimensions: 1.5 in (Length) x 0.41 in (Width) x 0.41 in (Height)
- Diameter: 0.41 inches
- Mounting Type: Clip
- Connection: Ferrule
- Insulation Material: PolyTube
- Product Weight: 0.0120 lbs
Features
- Time-delay fuse with 12-second delay at 200% rating
- Built-in blown fuse indicator that pops out to visually indicate fuse operation
- Indicator can actuate a switch for remote signaling
- Available in 34 ratings from 1/10A through 30A
- Compact size compatible with UltraSafe™ fuse holders (1/10 - 10A)
