FS-505C Fixture Integrated Occupancy Sensor for Lighting Solutions

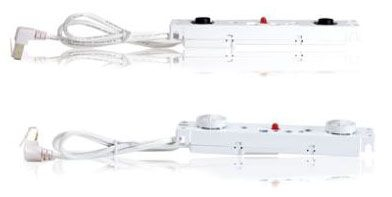

The FS-505C is a low voltage ultrasonic fixture integrated occupancy sensor designed for open area lighting control. Manufactured by WattStopper, this sensor utilizes 40 kHz ultrasonic technology to detect occupancy through sound wave reflection, enabling automatic lighting control even without direct line of sight. Ideal for integration into lighting fixtures, it is suitable for applications such as open office spaces, conference rooms, restrooms, hallways, and stairwells. The sensor operates with a 24 VDC power supply and requires connection to an FS-PP power pack for operation, making it a reliable component for electrical distributors and switchgear suppliers focusing on energy-efficient lighting solutions.

Specifications

• Voltage: 24 VDC
• Current Consumption: 43 mA
• Power Supply: FS-PP Fixture Power Pack
• Time Delay: 5-30 minutes
• Coverage at 8 ft Height: 30’ x 24’ (457.2 cm x 365.7 cm)
• Operating Temperature: 32-131°F (0-55°C)
• Color: White
• Dimensions: 5.2” x 1.25” x 0.62” (132.4 mm x 32.2 mm x 15.7 mm)
• Mounting Type: Fixture
• Product Weight: 0.1700 lbs
• Manufacturer: WattStopper
• Manufacturer Part Number: FS-505C

Features

• Ultrasonic technology (40 kHz) for occupancy detection with line-of-sight obstructions
• Compact, low-profile design for easy integration into lighting fixtures
• Modular plug-in system using RJ45 connector with 3’ cord for flexible installation
• Three operational modes: override, burn-in (72-hour lamp burn-in), and test modes
• Suitable for ceiling and wall mounting in open areas and stairwells
• Energy-saving bi-level lighting control capability when paired with compatible ballasts
