FS-205-VER-2 Sensor | Low Voltage PIR Occupancy Sensor

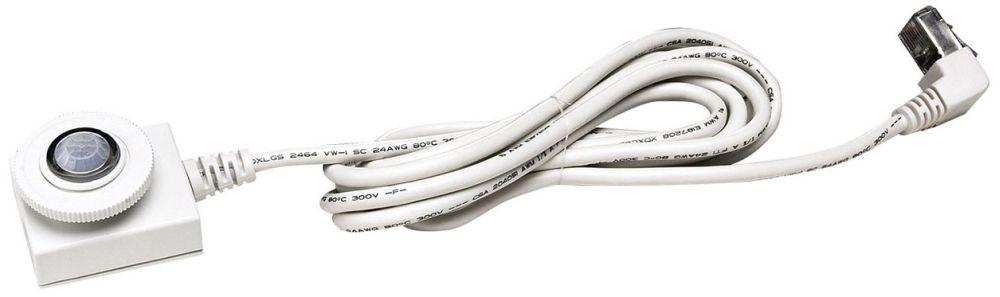

The FS-205-VER-2 is a low voltage passive infrared (PIR) fixture sensor designed for occupancy-based lighting control. Ideal for integration into task lights and other small fixtures, it offers a compact, low-profile design that fits easily within lighting fixtures or customized housings. The sensor operates at 24 VDC and connects via a modular 6-foot RJ45 cable to a remote-mounted power pack, enabling flexible installation. Suitable for electrical distributors and lighting solutions providers, this sensor efficiently manages lighting based on occupancy and ambient light levels.

Specifications

• Operating Voltage: 24 VDC
• Power Consumption: 6.5 mA @ 24 VDC
• Dimensions:
  • Throat Diameter: 0.75” (19 mm)
  • Lens Collar Diameter: 1.12” (28.5 mm)
  • Lens Pipe Length: 0.38” (9.7 mm)
  • Sensor Body: 1.12” L x 1.38” D x 0.5” W (28.5 mm x 35 mm x 12.7 mm)
• Weight: 0.16 lbs (1.6 oz / 45.4 g)
• Mounting Type: Fixture
• Finish: White
• Adjustable Time Delay: 30 seconds to 30 minutes
• Coverage Pattern: 360° up to 200 sq. ft. at 8 ft. mounting height
• Operating Temperature: 32°F to 131°F (0°C to 55°C)
• Humidity: 5% to 95% RH, non-condensing
• UL and cUL Listed
• Material: ABS, Flame retardant
• Five Year Warranty

Features

• Passive infrared occupancy sensing technology detects motion via changes in body heat
• Integrated photosensor for hold-off daylighting control, adjustable from 10 to 120 footcandles
• LED indicator for occupancy detection verification
• Low-voltage 6-foot cable with RJ45 connector for quick and flexible installation
• Compact design suitable for low-profile fixture integration
• Modular plug-in system for easy connection to FS-PP power packs
• Designed for indoor use only
