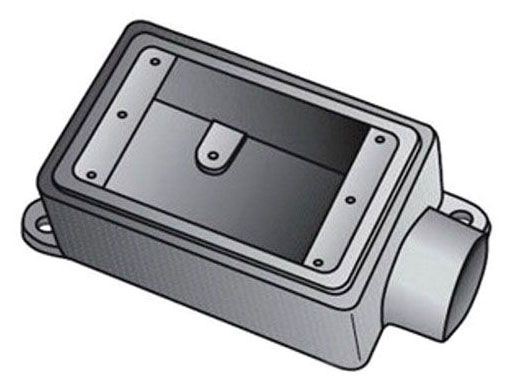

FS-1-75-A Cast Hub Device Box – Electrical Conduit Box

The FS-1-75-A Cast Hub Device Box by O-Z Gedney is designed for use with rigid conduit and intermediate metal conduit (IMC) in electrical distribution and lighting solutions. This device box serves as a durable enclosure for wiring devices such as switches and receptacles, providing a secure and corrosion-resistant housing suitable for indoor and outdoor installations. It is ideal for electrical distributors and switchgear suppliers requiring reliable conduit box solutions that accommodate wiring devices and allow for conduit connections and splices.

Specifications

• Application: For Rigid Conduit And IMC
• Material: Copper-Free Aluminum
• Dimensions: 2.81 Inch Width x 5.88 Inch Height
• Cubic Capacity: 21 CU-IN
• Number of Outlet: 1
• Cable Entry: (1) 3/4 IN Hub
• Product Weight: 0.8800 lbs
• Manufacturer Part #: FS175A
• Manufacturer: O-Z Gedney

Features

• Cast hub device box construction providing rugged durability
• Copper-free aluminum body for corrosion resistance
• Single 3/4 inch hub for conduit connection
• No knockouts, ensuring structural integrity
• Ridge top construction for positive cover/gasket/box fit (per catalog reference)
• Designed for use with threaded rigid conduit and IMC
• Internal grounding screw provision (standard feature in product family)
