Breaker CQD/NGG Handle Operator NEMA 3R/4X – Electrical Distributor Lighting Solutions

This Siemens breaker operator assembly, catalog number CQDOP34, is designed for use with CQD and NGG breaker frames in NEMA 3R and 4X enclosure types. It serves as a variable depth rotary handle accessory, enabling reliable manual operation of molded case circuit breakers. Suitable for electrical distributors and switchgear suppliers, this component integrates seamlessly with industrial lighting solutions, wire and cable systems, and other electrical distribution applications requiring robust and weather-resistant operator mechanisms.

Specifications

• Manufacturer: Siemens
• Application: For use with CQD/NGG frame
• Material: Composite
• Environmental Conditions: NEMA 3R/4X rated
• Dimensions: Width 5.6 in, Height 2.9 in, Length 7.2 in
• Weight: 0.88 lbs
• Country of Origin: Mexico
• Manufacturer Part #: CQDOP34
• Order Minimum: 1 unit

Features

• Designed for variable depth rotary handle operation
• Compatible with CQD, NGG, BQD, NGB, and 3VF breaker frames
• Suitable for NEMA 1, 12, 3/3R, and 4/4X enclosure types
• Composite material construction for durability and corrosion resistance

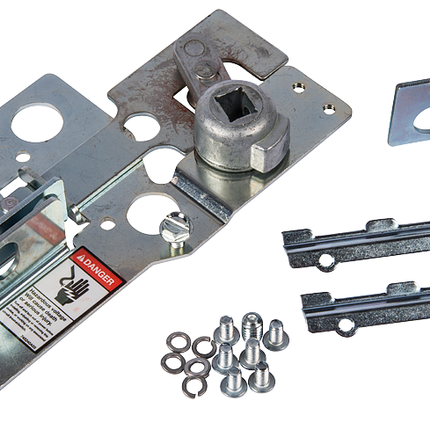

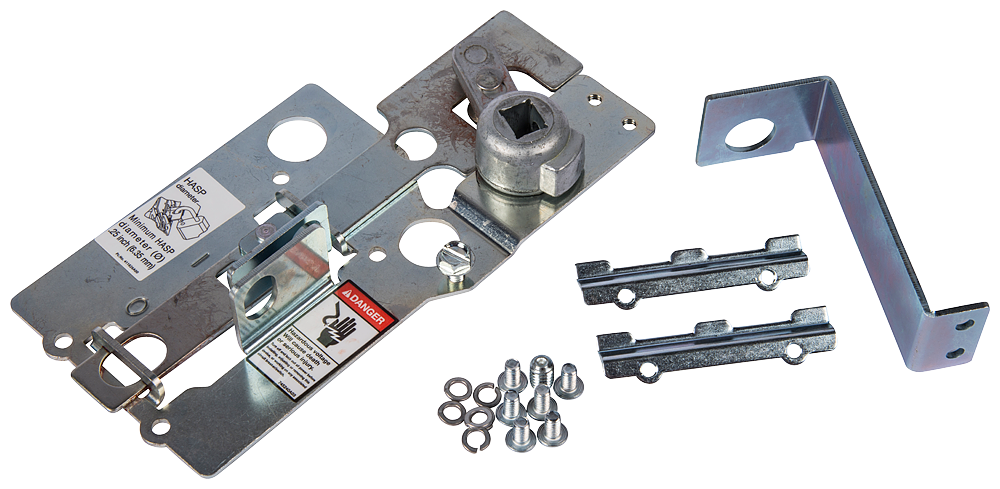

• Includes clip support brackets and shaft support bracket for secure mounting
• Installation instructions provided with torque specifications for secure assembly
