Four Screw Rectangular AC/MC Connector 1-1/2", Malleable Iron

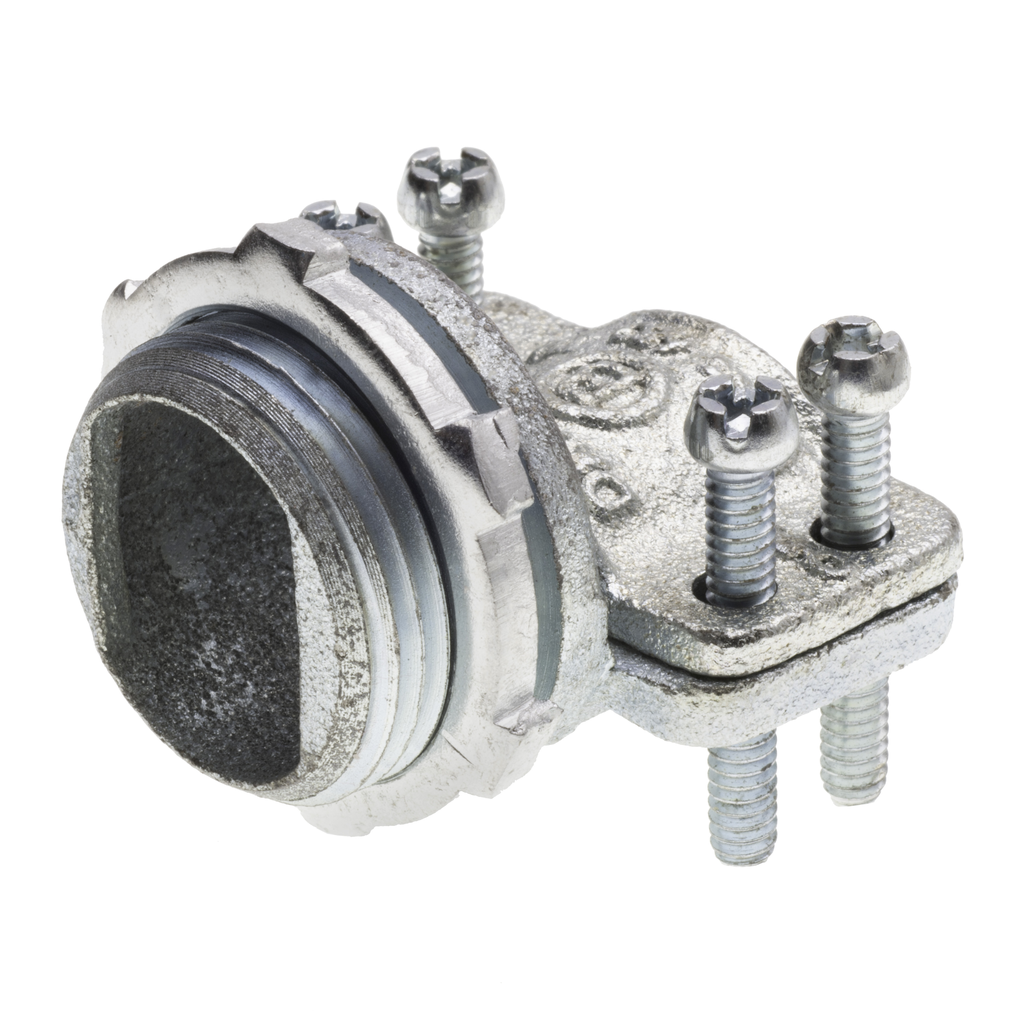

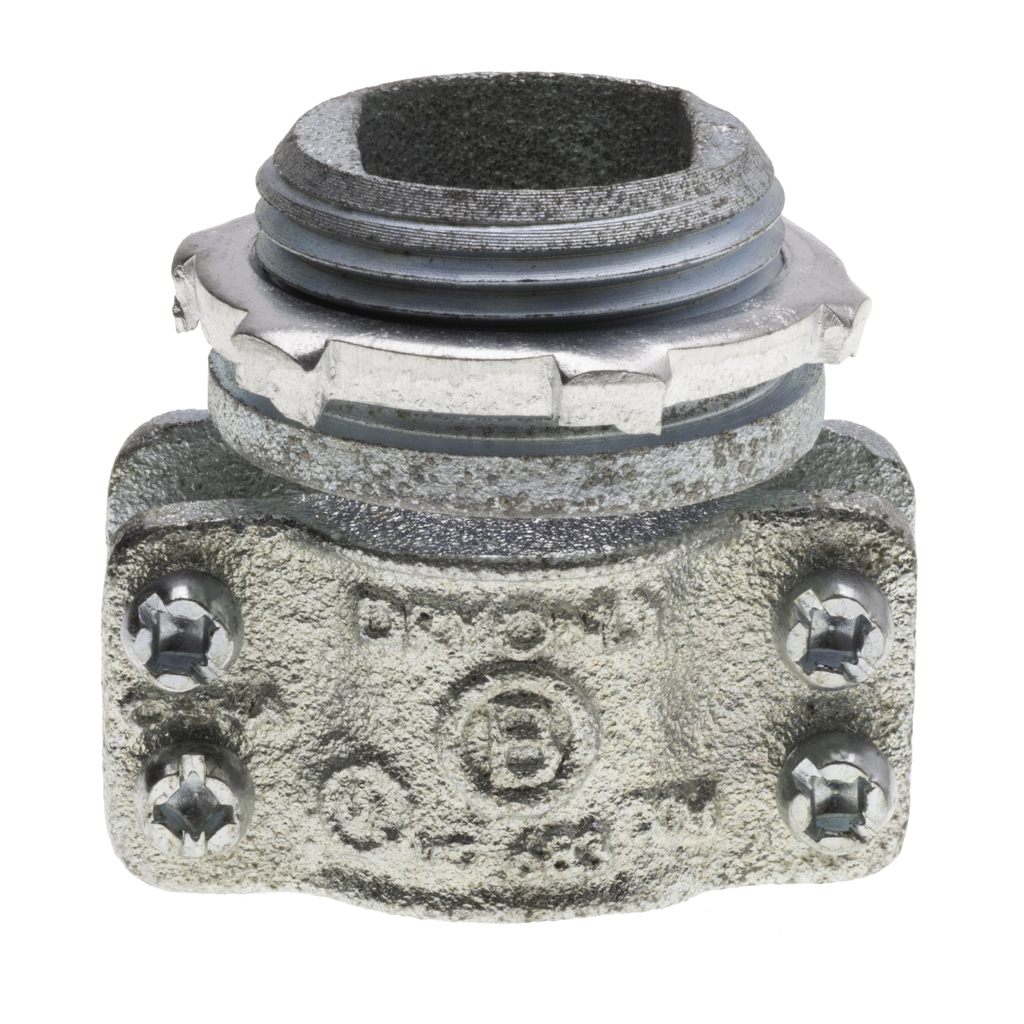

The Bridgeport Fittings 685-XM Four Screw Rectangular AC/MC Connector is designed to securely connect armored or metal clad cable to an electrical box or enclosure. Suitable for use with steel or aluminum interlocked metal clad cable and steel armored cable with armor diameters ranging from 1.34" to 1.52" (1/0-3 to 2/0-4), this connector features a rectangular opening that acts as a positive end stop for the cable jacket. It is constructed from malleable iron with a zinc electroplated finish, providing excellent impact, abrasion, and corrosion resistance for demanding electrical installations. This connector is ideal for electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers requiring durable cable fittings for secure conduit connections.

Specifications

• Material: Malleable Iron
• Finish: Zinc Electroplated
• Trade Size: 1-1/2"
• Dimensions (Length x Width x Depth): 2.875 in x 2.313 in x 1 in
• Cable Entry: Four screw strap fastens cable to connector body
• Application: Connects armored or metal clad cable to box or enclosure; rectangular opening
• Compatible Cable Armor Diameter: 1.34" to 1.52" (1/0-3 to 2/0-4)
• UL File Number: E202876
• Federal Specification Number: A-A-50552
• UL Standard: UL-514B
• NEMA Standard: FB-1
• Country of Origin: China

Features

• Four screw design ensures secure fastening of cable and conduit
• Rectangular throat provides a positive end stop for cable jacket
• Heavy-duty malleable iron construction for impact and corrosion resistance
• Zinc electroplated finish for enhanced durability
• Compatible with steel or aluminum interlocked metal clad cable and steel armored cable
• Trade sizes available from 1" through 3-1/2" (specific to catalog series)
