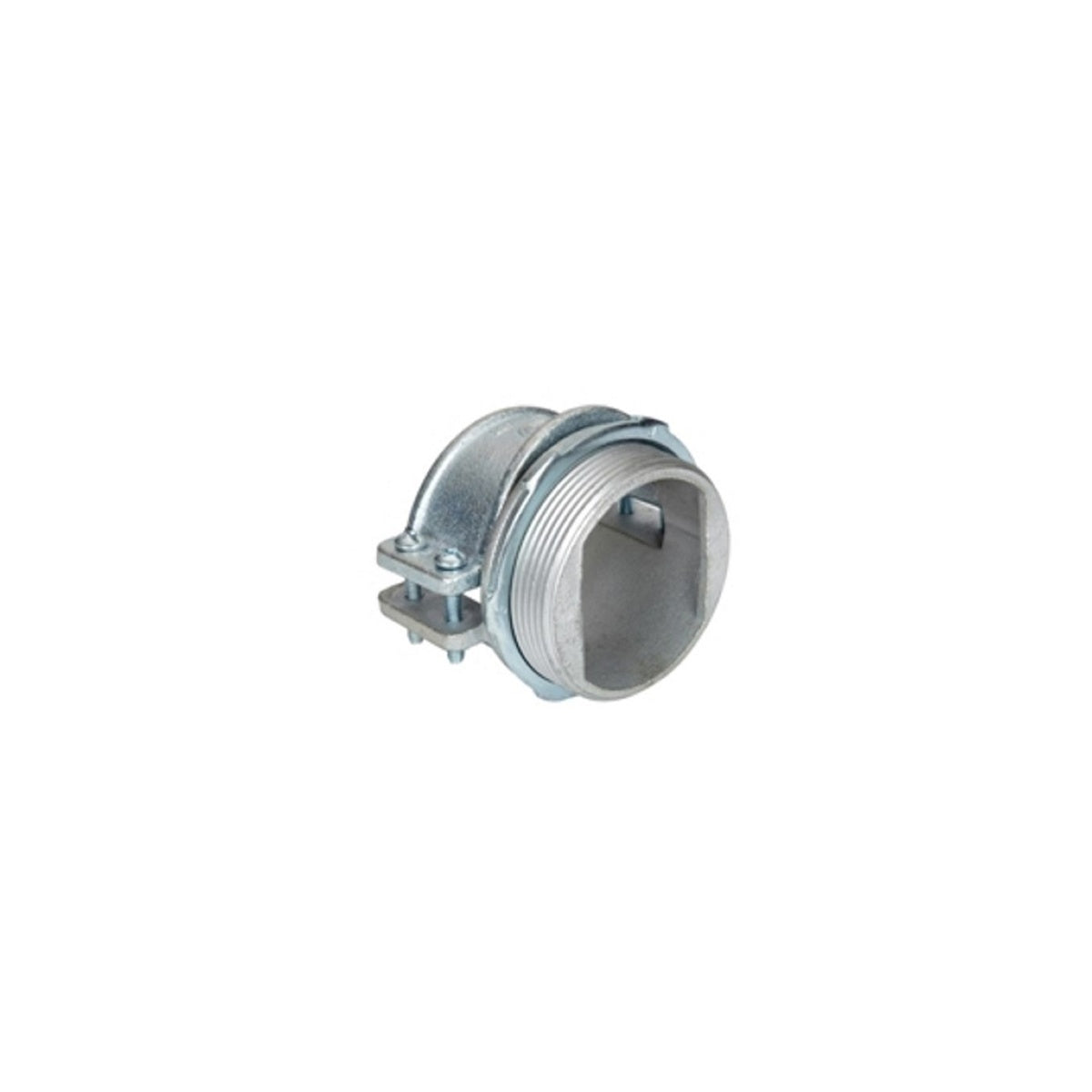

Four Screw AC/MC Connector 3", Malleable Iron, Rectangular Throat

This Four Screw AC/MC Connector by Bridgeport Fittings is designed to securely connect steel armored cable or interlocked metal clad cable to electrical boxes or enclosures. Featuring a rectangular throat, it provides a positive end stop for the cable jacket and is suitable for use with steel or aluminum interlocked metal clad cable and steel armored cable with armor diameters ranging from 2.47" to 2.86" (500-4 to 750-4). The malleable iron construction with zinc electroplated finish offers excellent impact, abrasion, and corrosion resistance, making it a heavy-duty solution for wire and cable installations in lighting solutions and switchgear applications.

Specifications

• Material: Malleable Iron
• Finish: Zinc Electroplated
• Trade Size: 3"
• Dimensions (Length x Width x Depth): 4.75 in x 4 in x 1.75 in
• Cable Entry: Four screw strap fastens cable to connector body
• Application: Connects armored or metal clad cable to box or enclosure; rectangular opening
• Cable Compatibility: Steel or Aluminum interlocked Metal Clad cable, Steel Armored cable with 2.47" to 2.86" armor diameter
• UL File Number: E202876
• Federal Specification Number: A-A-50552
• NEMA Standard: FB-1
• UL Standard: UL-514B
• Manufacturer: Bridgeport Fittings
• Manufacturer Part Number: 688-XM
• Country of Origin: China
• Unit Quantity: 1
• Standard Package Quantity: 5

Features

• Rectangular throat acts as a positive end stop for cable jacket
• Four screw strap design ensures secure fastening of cable
• Malleable iron construction provides heavy-duty impact, abrasion, and corrosion resistance
• Suitable for use with 3" knockout installations
• Compatible with a wide range of AC/MC cable sizes (4-500 to 4-750 MCM)
