Form 7 Conduit Body
SKU: #65403
Part: #LB27
UPC: 786210924618
Form 7 Conduit Body
SKU: #65403
Part: #LB27
UPC: 786210924618
Next day delivery
Description

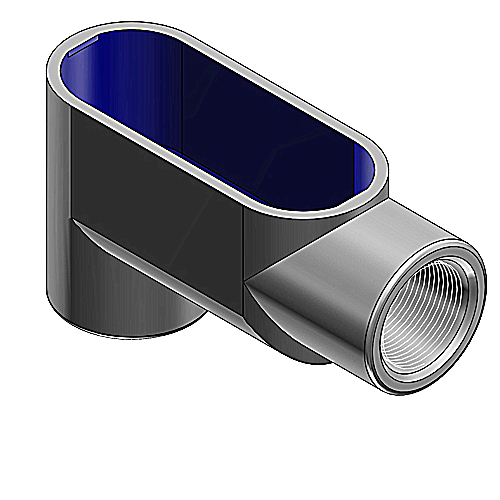

Form 7 Conduit Body – Electrical Conduit Fitting
The Form 7 Conduit Body, catalog number 65403, is designed for use in rigid and intermediate metal conduit (IMC) systems to connect conduit sections, provide pull outlets during conductor installation, and allow easy access for splices in branch conductors. Manufactured by Thomas & Betts, this conduit body is suitable for electrical distributors and switchgear suppliers requiring durable conduit fittings with corrosion resistance and ease of installation.
Specifications
- Manufacturer Part #: LB27
- Hub Size: 3/4 in
- Material: Gray Iron
- Finish: Zinc Plated with Epoxy Powder Coat
- Form: 7
- Product Weight: 28.0000 lbs
- Application: Connect conduit sections, act as pull outlets, and provide access for splices in branch conductors
- Packaging: Inner Quantity – 5, Outer Quantity – 20
- Standards: UL E2969, CSA compliant
Features
- BlueKote® internal PTFE-based coating for easier wire pulling and reduced installation strain
- Triple-layer corrosion protection including two epoxy coating layers to prevent corrosion
- Flat back design for increased cubic inch capacity
- Interchangeable with other manufacturers’ Form 7 bodies and covers such as Crouse-Hinds and Appleton
- Tapered (NPT) threads and integral bushings to protect wire insulation
