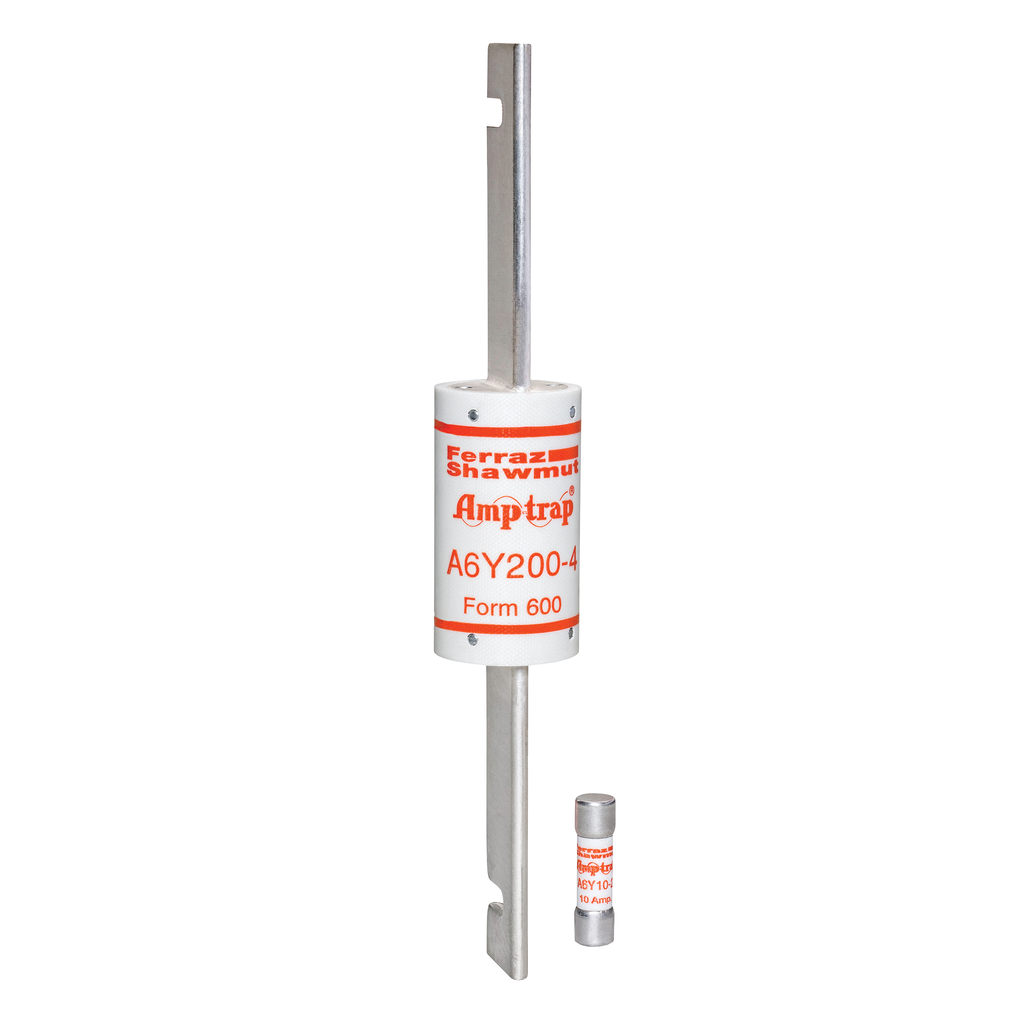

Form 600 Fuse 600V 300A Type 3 Blade Mount A6Y Series
SKU: #195356
Part: #A6Y300-3
UPC: 782001906474
Form 600 Fuse 600V 300A Type 3 Blade Mount A6Y Series
SKU: #195356
Part: #A6Y300-3
UPC: 782001906474
Description
Form 600 Fuse 600V 300A Type 3 Blade Mount A6Y Series - Current Limiting Fuse
The Mersen Form 600 Fuse, model A6Y300-3, is a current-limiting fuse designed for both AC and DC electrical applications. Rated for 600V AC and 500V DC, it provides a high degree of current limitation, making it suitable for special fusing applications in industrial and commercial electrical systems. This type 3 fuse is dimensionally interchangeable with Class H and K fuses, offering reliable protection in wire and cable installations. As a product from a leading electrical distributor and switchgear supplier, it supports efficient and safe electrical distribution and lighting solutions.
Specifications
- Amperage Rating: 300 A
- Voltage Rating: 600 V AC, 500 V DC
- Interrupt Rating: 200 kA
- Connection Type: Blade
- Mounting Type: Clip
- Dimensions (L x W x H): 11.63 in x 2 in x 2 in
- Diameter: 2 inches
- Maximum Operating Temperature: 80 degrees Celsius
- Product Weight: 2.3 lbs
- Country of Origin: Mexico
- Manufacturer Part Number: A6Y300-3
Features
- Original current-limiting design predating industry standards
- High current limitation for both AC and DC applications
- 500 V DC rating through 600 A for special fusing needs
- Type 3 fuse is interchangeable with Class H and K fuses
- Blade mount connection for secure and reliable installation
- Clip mounting for easy fuse replacement
- UL recognized component, tested to UL248-1 standards
