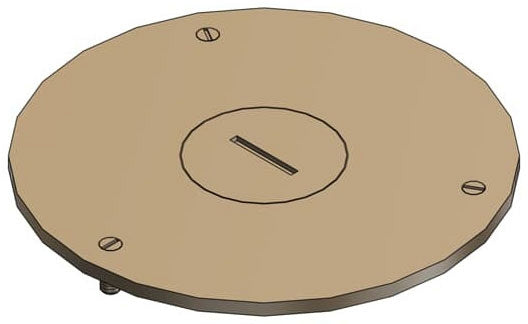

Flush Service Cover Plate by Steel City – Floor Box Cover

The Steel City Flush Service Cover Plate is designed for use with 68 and 600 series floor boxes, providing a polished brass finish cover solution for electrical distributors and lighting solutions requiring durable, reliable floor box accessories. This cover plate is specifically engineered for flush service floor boxes, featuring a 4-inch diameter and a 1/2 inch NPS plug size, suitable for wire and cable management in commercial and industrial switchgear applications.

Specifications

• Manufacturer: Steel City
• Manufacturer Part #: P 60 1/2
• Material: Brass
• Finish: Polished brass
• Application: For use with 68 and 600 series floor boxes
• Diameter: 4 inches
• Plug Size: 1/2 inch NPS
• Weight: 2.04 lbs
• Knockouts: None
• Packaging: Carton Quantity - 1, Box Quantity - 4
• Standard: UL E2969

Features

• Furnished complete with sealing gasket and #8-32 x 7/16 inch brass screws for secure installation
• Polished brass finish provides corrosion resistance and aesthetic appeal
• Designed for durable and reliable floor box coverage in electrical distribution and lighting installations
• Compatible with flush service floor boxes in both carpet and tile applications
• Round mounting opening with dry floor maintenance suitability

Downloads & Links

• Spec Sheet
• Technical Drawing / Spec Sheet Canada
• Technical Drawing / Spec Sheet US
