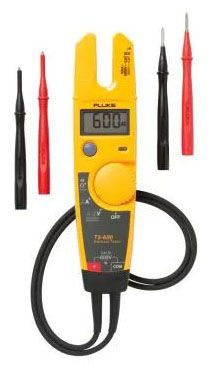

FLUKE-T5-600 Electrical Voltage Tester - Electrical Testing and Troubleshooting Tool

The FLUKE-T5-600 Electrical Voltage Tester is a compact, versatile tool designed for electrical distributors, lighting solutions providers, and switchgear suppliers to perform voltage, continuity, and current testing efficiently on-site. Suitable for troubleshooting electrical installations, this tester simplifies electrical diagnostics by combining multiple functions in one device, facilitating quick and reliable wire and cable inspections.

Specifications

• Maximum Voltage Between Terminals and Earth Ground: 600 V rms, Overvoltage Category III, Pollution Degree 2
• Maximum Voltage Between Current Fork and Earth Ground: 1000 V rms, Overvoltage Category III; 600 V rms, Overvoltage Category IV (current fork only)
• Operating Temperature Range: -10 °C to +50 °C (14 °F to 122 °F)
• Storage Temperature Range: -30 °C to +60 °C (-22 °F to 140 °F)
• Operating Altitude: 2000 m (6562 ft); Storage Altitude: 10,000 m (32808 ft)
• Relative Humidity: 0% to 95% at 5 °C to 30 °C, decreasing at higher temperatures
• Battery Type and Life: 2 AA batteries; 360 hours continuous use with alkaline batteries
• Accuracy: Voltage ±(1.5% + 2 digits) for AC, ±(1% + 1 digit) for DC; Current ±(3% + 3 digits); Resistance ±(1% + 2 digits)
• Resolution: 1 V for voltage, 0.1 A for current, 1 Ω for resistance
• Enclosure Rating: IP52 per IEC 60529 (no vacuum applied)
• Safety Standards: Complies with ANSI/ISA-S82.01-94, UL Classified to IEC 61010, CSA/CAN C22.2 No.1010.1-92, EN61010-1
• Surge Protection: 6 kV per IEC 61010
• Dimensions: Approximately 21 cm (8.25 inches) length
• Weight: 0.1 kg

Features

• Multi-function tester for voltage, continuity, and current measurements in one compact tool
• Automatic AC/DC voltage selection for ease of use
• Current measurement via a built-in current fork for non-contact current testing up to 100 A
• Continuity and resistance testing with audible beeper for quick wire verification
• Hazardous voltage indicator LED for enhanced safety awareness during testing
• Display HOLD function to freeze readings for easier recording
• Robust design with IP52 rating for dust and splash resistance in typical job site environments
• Long battery life for extended use on job sites
• Compliance with industry safety and EMC standards ensures reliable performance in electrical distribution and lighting systems
