FLUKE-T5-1000 Electrical Voltage Tester – Electrical Testing and Measurement

The FLUKE-T5-1000 Electrical Voltage Tester is a versatile tool designed for electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers. It measures AC and DC voltage up to 1000 volts, verifies continuity, and measures current up to 100 amps AC. Its compact design and detachable probes make it suitable for field and panel testing, ensuring safe and accurate diagnostics in electrical installations and maintenance.

Specifications

• Voltage Range AC: 0 to 1000 V rms
• Voltage Range DC: 0 to 1000 V
• Current Rating: 0 to 100 A AC
• Display Type: LED
• Probe Type: 4 millimeter detachable
• Accuracy: ±3% Current, ±2% AC Voltage, ±1% DC Voltage
• Battery Type: 2 AA Zinc Chloride or Alkaline (included)
• Battery Life: 200 hours Zinc Chloride, 400 hours Alkaline
• Dimensions: 203 mm length x 51 mm width x 30.5 mm height
• Jaw Opening Size: 0.5 inch (12.9 mm current sensor opening)
• Wire Size Compatibility: 1/0 THHN cable
• Display Resistance: 1000 ohms
• Operating Temperature: -10 to 50 °C
• Operating Altitude: up to 2000 meters
• Certifications: CSA, CE, TUV

Features

• Automatic AC/DC voltage selection with clear LED display
• Continuity and resistance measurement with audible beeper

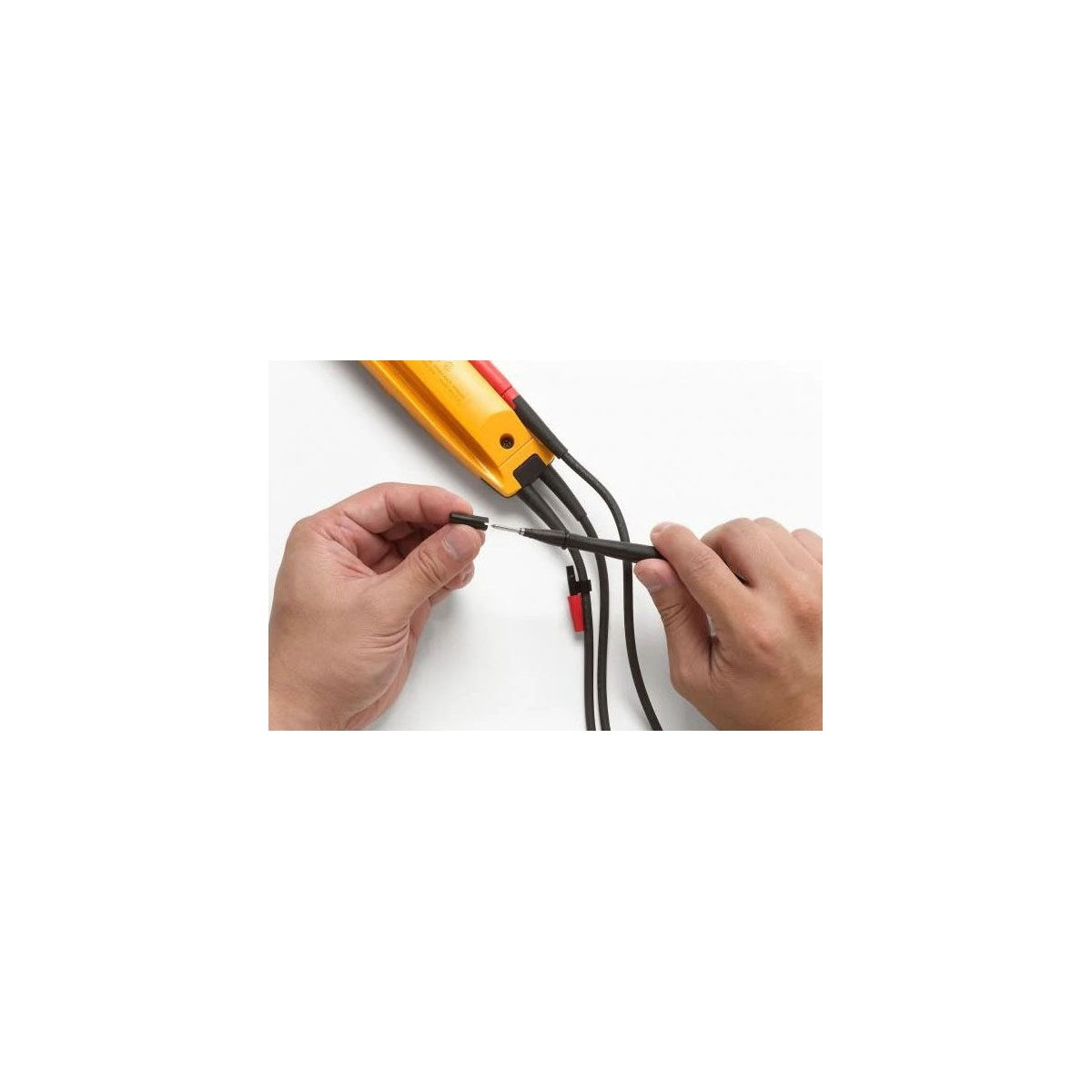

• Detachable 4 mm probes for flexible testing
• Compact and lightweight design for ease of use in confined spaces
• Safety rated for CAT III 1000 V and CAT IV 600 V environments
• Long battery life with included batteries and low battery indicator
• Display HOLD function for convenient reading retention
