Flexible Rope Eye, Closed Mesh, Single Weave, Light Duty, Pulling Wire Mesh Grip 1.50 - 1.99 Cable Dia.Range, Medium Length
SKU: #32083
Part: #L8528
UPC: 078477973561
Flexible Rope Eye, Closed Mesh, Single Weave, Light Duty, Pulling Wire Mesh Grip 1.50 - 1.99 Cable Dia.Range, Medium Length
SKU: #32083
Part: #L8528
UPC: 078477973561
Description
Flexible Rope Eye, Closed Mesh, Single Weave, Light Duty Pulling Wire Mesh Grip 1.50 - 1.99 Cable Dia. Range, Medium Length

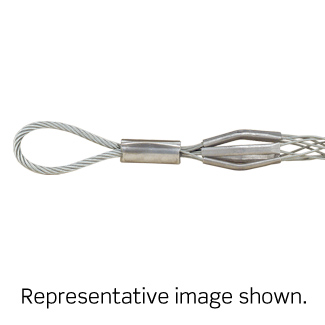

This Leviton flexible rope eye pulling grip is designed for light-duty applications involving the pulling and support of wire, rope, or tubing. It features a closed mesh single weave construction made of galvanized steel, providing strength and durability for electrical distributors, lighting solutions, wire and cable installations, and switchgear suppliers. The grip accommodates cable diameters ranging from 1.50 to 1.99 inches and is suitable for use in overhead or underground cable pulls.
Specifications
- Manufacturer: Leviton
- Manufacturer Part #: L8528
- Material: Galvanized Steel
- Duty: Light
- Mesh Style: Closed
- Weave: Single
- Cable Diameter Range: 1.50 - 1.99 inches
- Approximate Break Strength: 7,500 lbs
- Workload Safety Factor: 1,500 lbs
- Eye Type: Flexible Rope Eye
- Mesh Length: 25 inches
- Product Weight: 7.8 lbs
- Country of Origin: Mexico
- UPC: 078477973561
- Warranty: 2-Year Limited
- Certifications: CSA
Features
- Flexible rope eye design allows for easy attachment and smooth pulling
- Closed mesh single weave provides uniform tension distribution to prevent cable damage
- Galvanized steel construction ensures corrosion resistance and long service life
- Light-duty rating suitable for industrial plant wiring, underground electrical pulls, and rewiring applications
- Medium mesh length enhances grip on cables within specified diameter range
