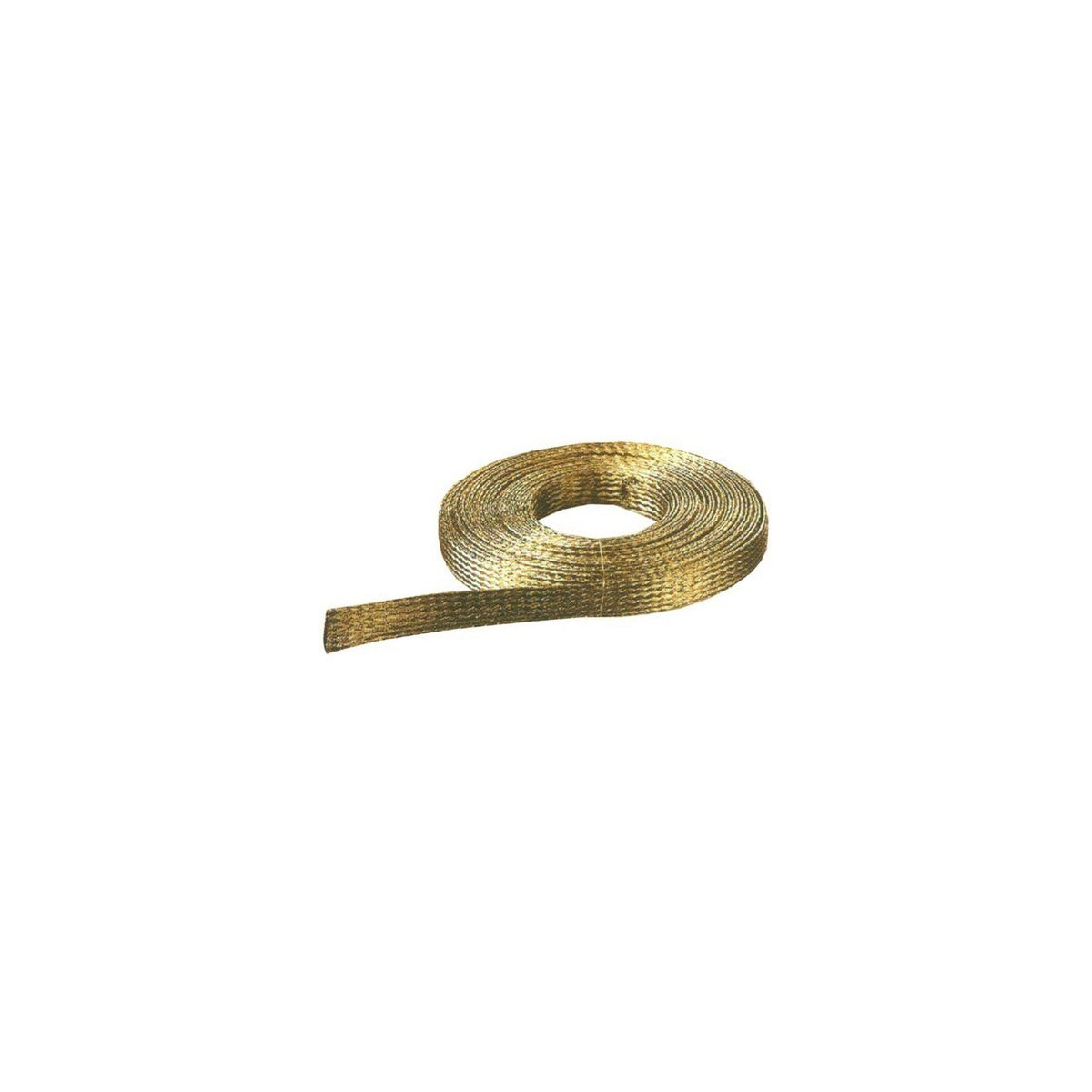

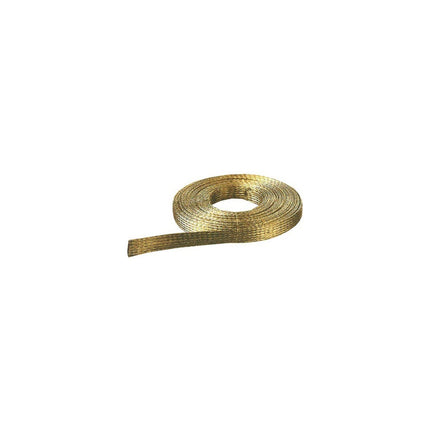

Flexible Ground Braids 1/2" 100' – Flexible Copper Braid for Electrical Grounding

This flexible ground braid is designed for grounding applications requiring high conductivity and flexibility. Manufactured from copper alloy braid with an electro tin-plated finish, it is suitable for use by electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers. The product supports high vibration and expansion environments, ensuring reliable grounding performance.

Specifications

• Length: 100ft
• Width: 1/2"
• Material: Copper Alloy Braid
• Finish: Electro Tin Plated
• AWG Size: 6 AWG
• Flammability Rating: N/A
• UL Certification: N/A
• cUL Certification: N/A
• RoHS Compliance: N/A

Features

• High strength, high conductivity extra flexible tinned copper braid
• Annealed electro-tin plated for corrosion resistance
• Suitable for shield and lead sheath grounding applications
• Designed for high vibration and expansion applications
