Morris Products
Flange Mount Conduit Assembly - Bottom Mount 1" EMT 3/4" Rigid
SKU: #272396
Part: #18192
UPC: 601986181921
Morris Products
Flange Mount Conduit Assembly - Bottom Mount 1" EMT 3/4" Rigid
SKU: #272396
Part: #18192
UPC: 601986181921
Description

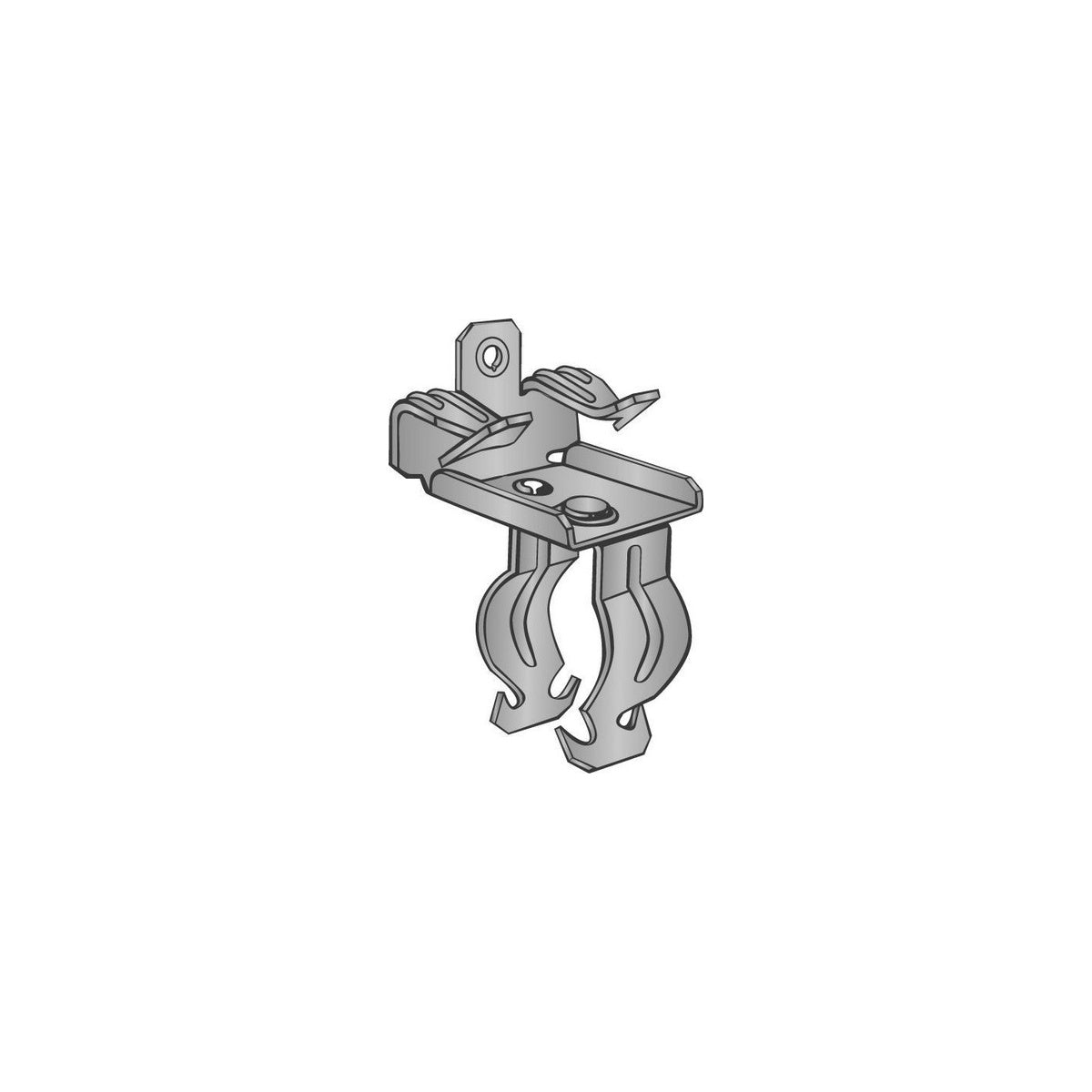

Flange Mount Conduit Assembly - Bottom Mount 1" EMT 3/4" Rigid - Conduit Suspension Solutions
This Flange Mount Conduit Assembly is designed to suspend conduit from the bottom of a beam, providing secure and adjustable support for electrical wiring installations. Suitable for use with 1" EMT and 3/4" rigid conduit, this assembly is ideal for electrical distributors and switchgear suppliers seeking reliable conduit mounting solutions in commercial and industrial lighting and wiring applications.
Specifications
- Material: Spring Steel
- Fits EMT: 1"
- Fits Rigid/IMC: 3/4"
- Flange Thickness: 1/8 to 1/4 inch
- Static Load Limit: 25 lbs
- Product Weight: 0.0850 lbs
- Manufacturer Part #: 18192
Features

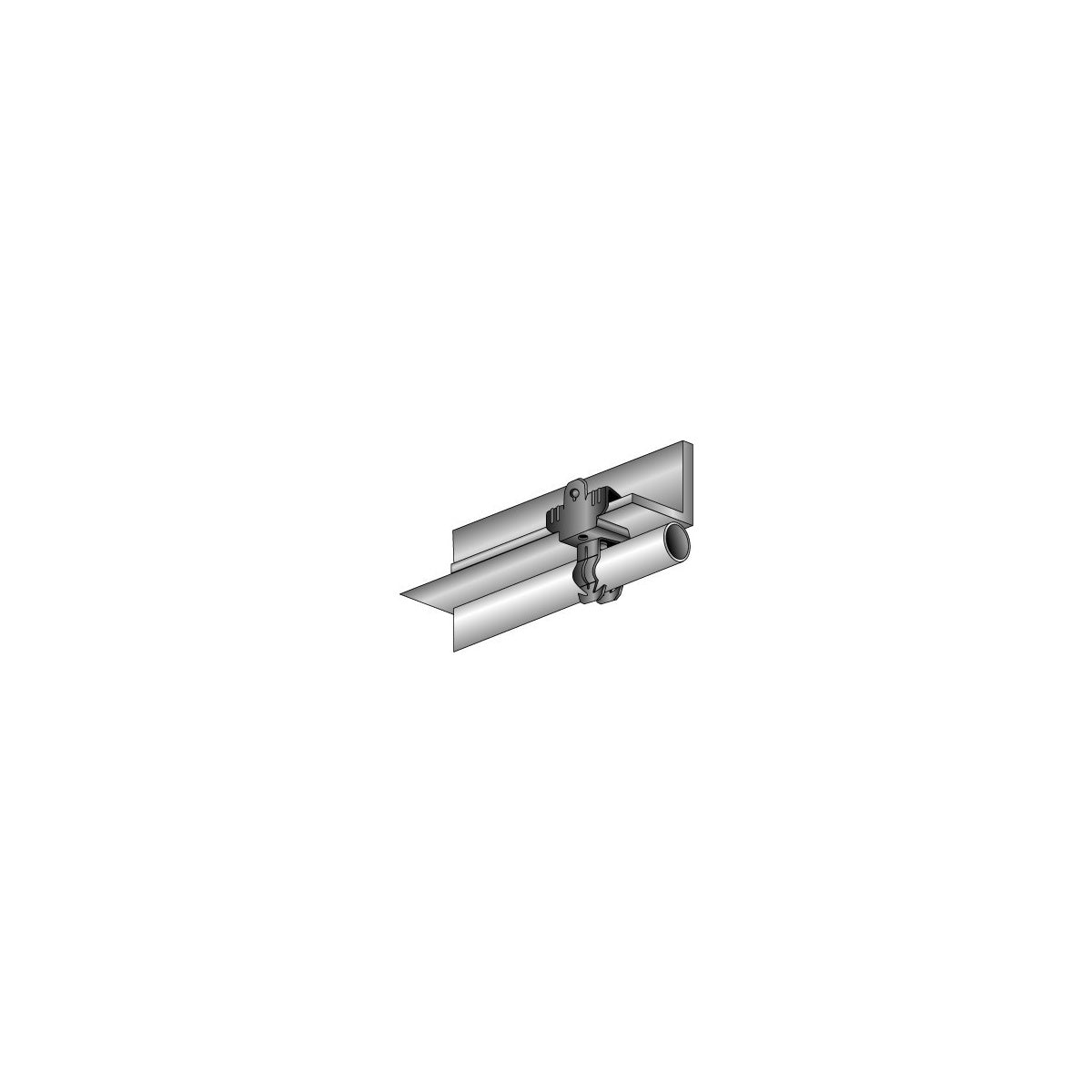

- Suspends conduit from bottom of beam
- 360° pivot capability for flexible conduit positioning
- Installation requires hammer only, enabling quick and tool-minimal setup
