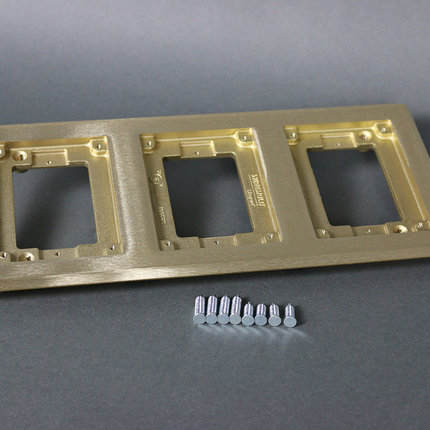

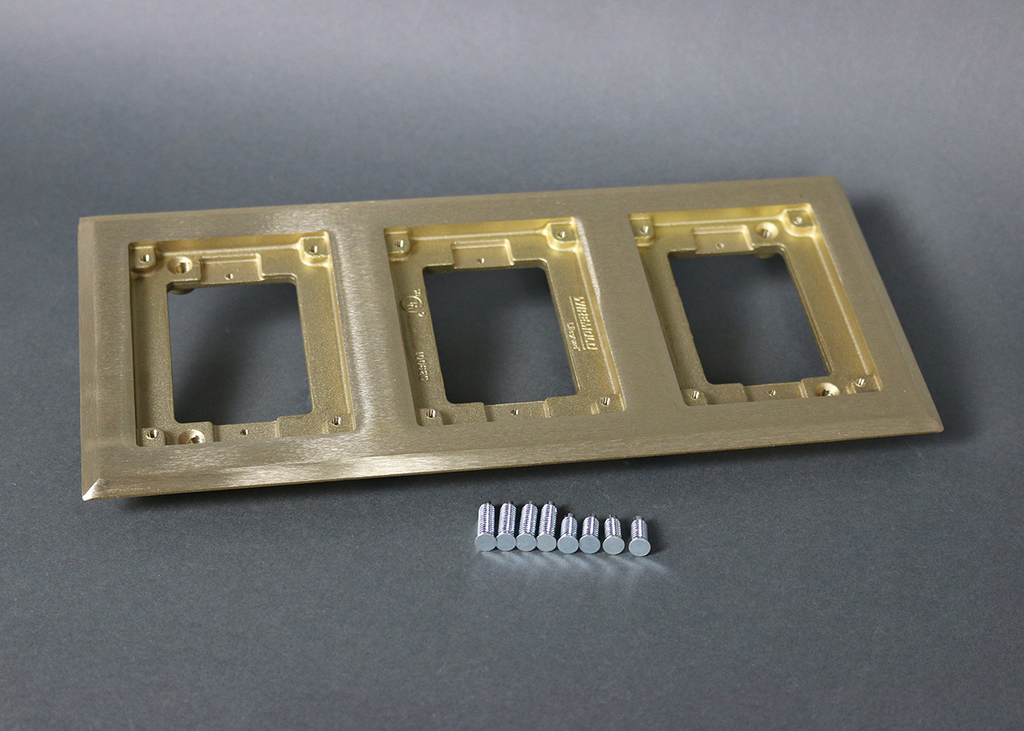

Flange – Brass Floor Box Cover Plate Flange

The Wiremold® Flange (Model 837C) is a solid brass cover plate flange designed for use with Wiremold OmniBox Series Floor Boxes, specifically the three-gang carpet flange applications. This flange provides a durable and aesthetically pleasing solution for electrical distributors and lighting solutions requiring secure and professional floor box installations. It is suitable for open-space areas such as malls, shopping centers, airports, hospitals, and office buildings, where power, audio/video, or communication services are needed.

Specifications

• Material: Brass
• Width: 6.0 in
• Height: 0.75 in
• Depth: 13.25 in
• Construction: Not Assembled
• Country of Origin: China
• Manufacturer: Wiremold
• Manufacturer Part #: 837C
• Product Weight: 5.834 lbs

Features

• Solid brass construction for enhanced durability and aesthetic appeal
• Designed for three-gang floor box applications
• Compatible with Wiremold OmniBox Series Floor Boxes for carpet installations
• Provides partition support for tile applications when used with related kits
• Not assembled, allowing for flexible installation

Downloads & Links

• Omnibox Multi-Service Single- or Multi-Gang Floor Boxes Adjustable Partition Kit - 880SAP, 880MAP, 880CSAP, 880CMAP"
• 880 Omnibox Series Floor Boxes
• Spec Sheet
• Wiremold OmniBox Floor Boxes
• Omnibox Floor Box for Wood Floors
• Omnibox Series Fire Classified Floor Boxes
