Flange Brass Floor Box Cover for Electrical Distributor Solutions

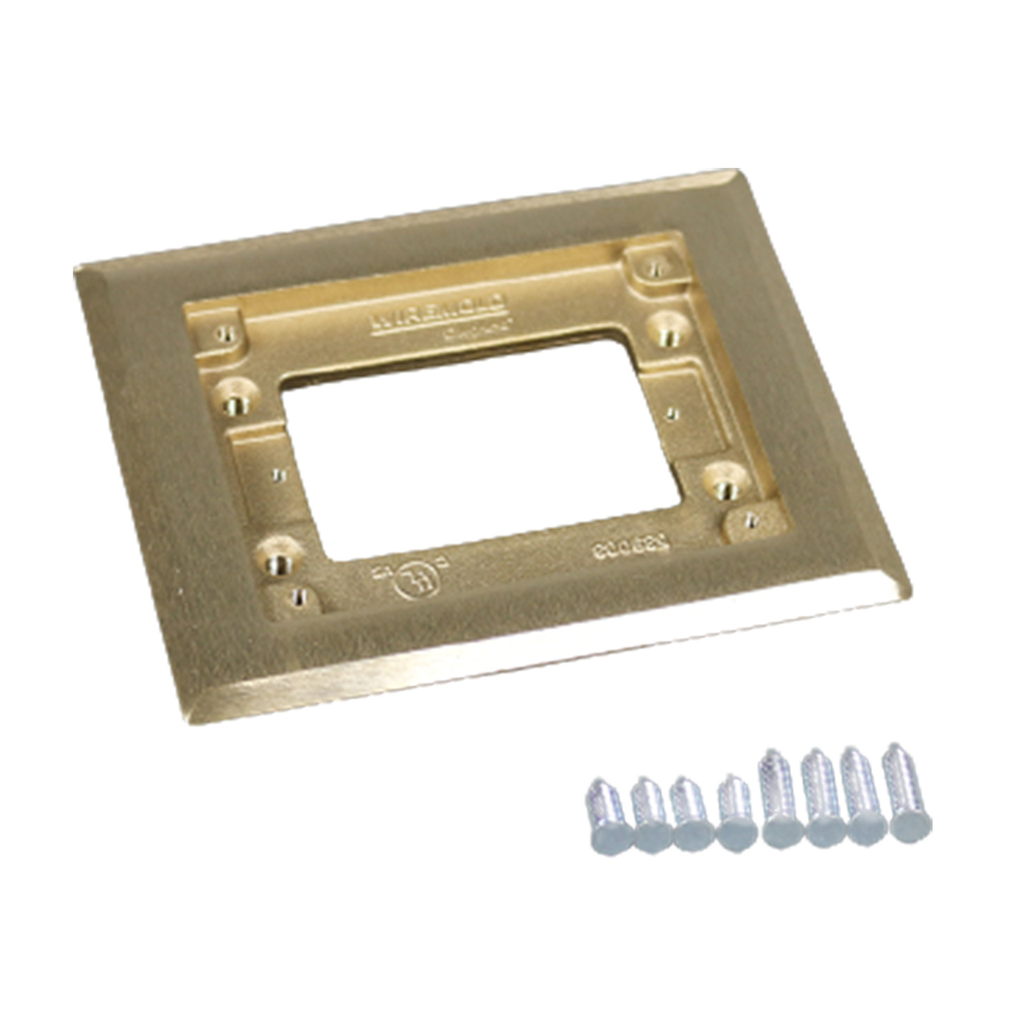

The Wiremold® Flange (Model 817C) is a brass floor box cover designed to provide a durable and aesthetically pleasing solution for electrical distribution in open-space areas. It is compatible with Wiremold® Ratchet-Pro™ Series Floor Boxes, which support single- and dual-service capabilities for power, A/V, or communication services. This flange is suitable for use in commercial environments such as malls, airports, hospitals, and office buildings, serving as an essential component in lighting solutions, wire and cable management, and switchgear supplier applications.

Specifications

• Material: Brass
• Dimensions: Width 5.0 in, Depth 6.0 in, Height 0.75 in
• Construction: Not Assembled
• Product Weight: 2.0 lbs
• Manufacturer: Wiremold
• Manufacturer Part #: 817C
• Country of Origin: China

Features

• Compatible with Wiremold¬Æ Ratchet-Pro‚Ñ¢ Series Floor Boxes for flexible power and communication service installation
• Brass construction provides durability and corrosion resistance
• Designed to support partition flanges for enhanced strength in tile applications (sold separately)
• UL Listed for use in both on-grade and above-grade concrete construction
• Easy to install flange accessory for open-space electrical distribution
