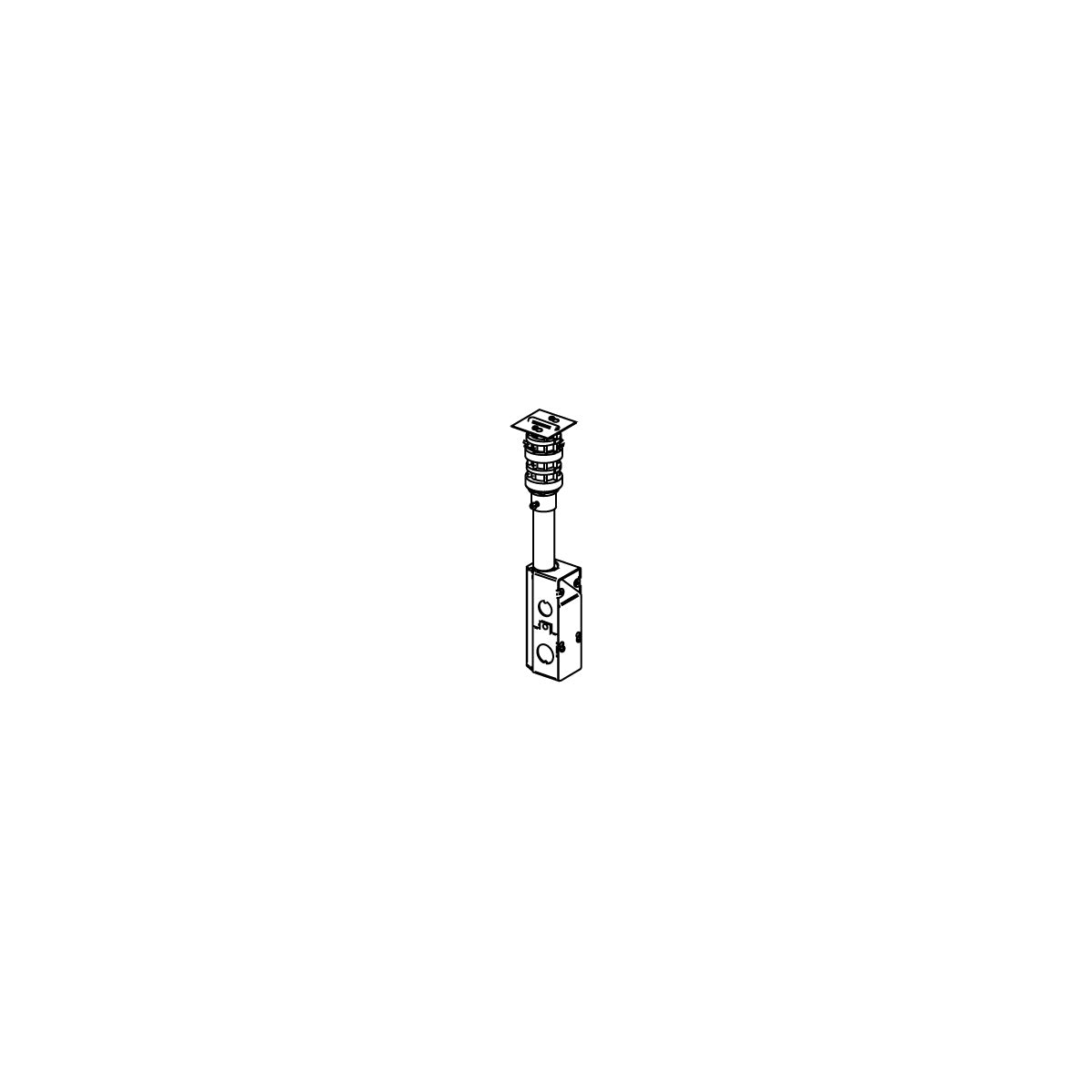

FIT Multi-Service Poke-Thru Device – Electrical Distributor Solution

The FIT Multi-Service Poke-Thru Device by Wiremold is designed to deliver large capacity power and communication services to workstations in open space, above-grade floor environments. Ideal for commercial office buildings, financial institutions, and government facilities, this device supports installation on tile, carpet, or wood-covered floors. It features built-in TopGuard protection that meets and exceeds UL scrub water exclusion requirements, preventing water, dirt, and debris from entering power and communication compartments. This product is engineered for both new and retrofit construction, offering flexibility and durability for electrical distributors and lighting solutions.

Specifications

• UL Fire Classification: 4 hours
• Service Head Construction: Aluminum
• Cover Colors: Brushed Aluminum
• Flange/Cover Diameter: 4 5/8" x 4" x 2 5/8" (118mm x 235mm x 69mm)
• Conduit/Stem Diameter: One (1) 1" Trade Size Conduit
• Maximum Cable Fill Power: Three (3) #12 AWG (.01536 sq. in. / 9.91 mm¬≤)
• Maximum Cable Fill Communications: Fifteen (15) Cat 6/Channel (.05020 sq. in. / 32.39 mm¬≤)
• Hole Size Required: 2 1/32" (52mm) minimum, 2 1/8" (54mm) maximum
• Weight: 2.662 lbs
• Country of Origin: United States
• Made in USA: Yes
• Construction: Not Assembled

Features

• TopGuard Protection: Integral design preventing water, dirt, and debris intrusion, exceeding UL scrub water exclusion requirements for tile and carpet floors.
• Fire-Rated for Up to 4-Hour Floors: Maintains fire rating integrity for carpet, tile, and linoleum floor coverings.
• Step-On-It Installation: Quick and easy installation without additional fasteners or a second installer.
• Dual Service Capability: Provided with a 1" trade size divided conduit stem for simultaneous power and communication services.
• Variety of Faceplate Configurations: Allows customization to meet current and future workstation requirements, reducing life cycle costs.
• Datacom Connectivity Options: Compatible with industry standard and proprietary devices for voice, data, audio, and video at the point-of-use.
• UL Listed and UL Fire Classified: Complies with U.S. and Canadian safety standards for tile and terrazzo floors, including UL514A and UL514C scrub water exclusion tests.
• Junction Box Included: 16-gauge C.R.S. galvanized box with 1/2" and 3/4" trade size knockouts for power connections.
