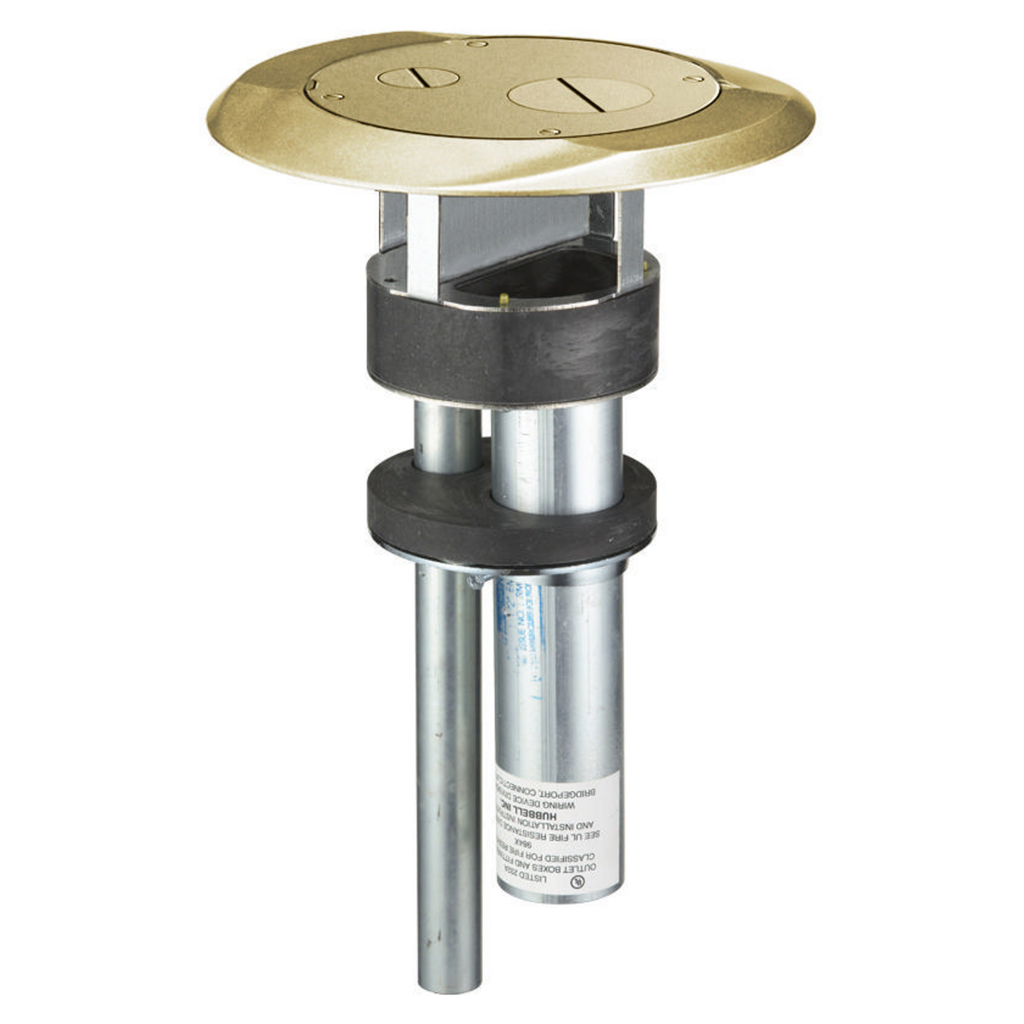

Fire-Rated Poke-Through, One-Piece, Furniture Feed with Painted Brass Cover

This fire-rated poke-through unit from Hubbell Premise Wiring is designed for delivering power and low-voltage wiring through concrete floors in commercial and institutional environments. It provides a durable, one-piece furniture feed solution with a painted brass cover, suitable for use by electrical distributors and lighting solutions providers requiring reliable floor access for wire and cable management. The product supports multi-service cable entry and is engineered for installation in a 4-inch core hole in concrete floors.

Specifications

• Application: Complete Units
• Product Weight: 5.0 lbs
• Color: Brass
• Finish: Brass
• Material: Composite
• Mounting: 4" Core Hole in Concrete Floor
• Knockouts: None
• Cable Entry: Threaded Hubs
• Construction: Fabricated
• Number of Outlets: (1) 3/4" & (1) 1½" Threaded Hub Multi-Service
• Width: 16.5 in
• Country of Origin: China
• Manufacturer: Hubbell Premise Wiring
• Manufacturer Part #: S1PTFFBRS

Features

• One-piece furniture feed poke-through with 4-hour fire rating
• Painted brass cover for aesthetic integration and durability
• Provides separate conduit entries for power and low-voltage wiring
• Threaded hubs for secure cable entry and multi-service capability
• Designed for installation in concrete floors with a 4-inch core hole
