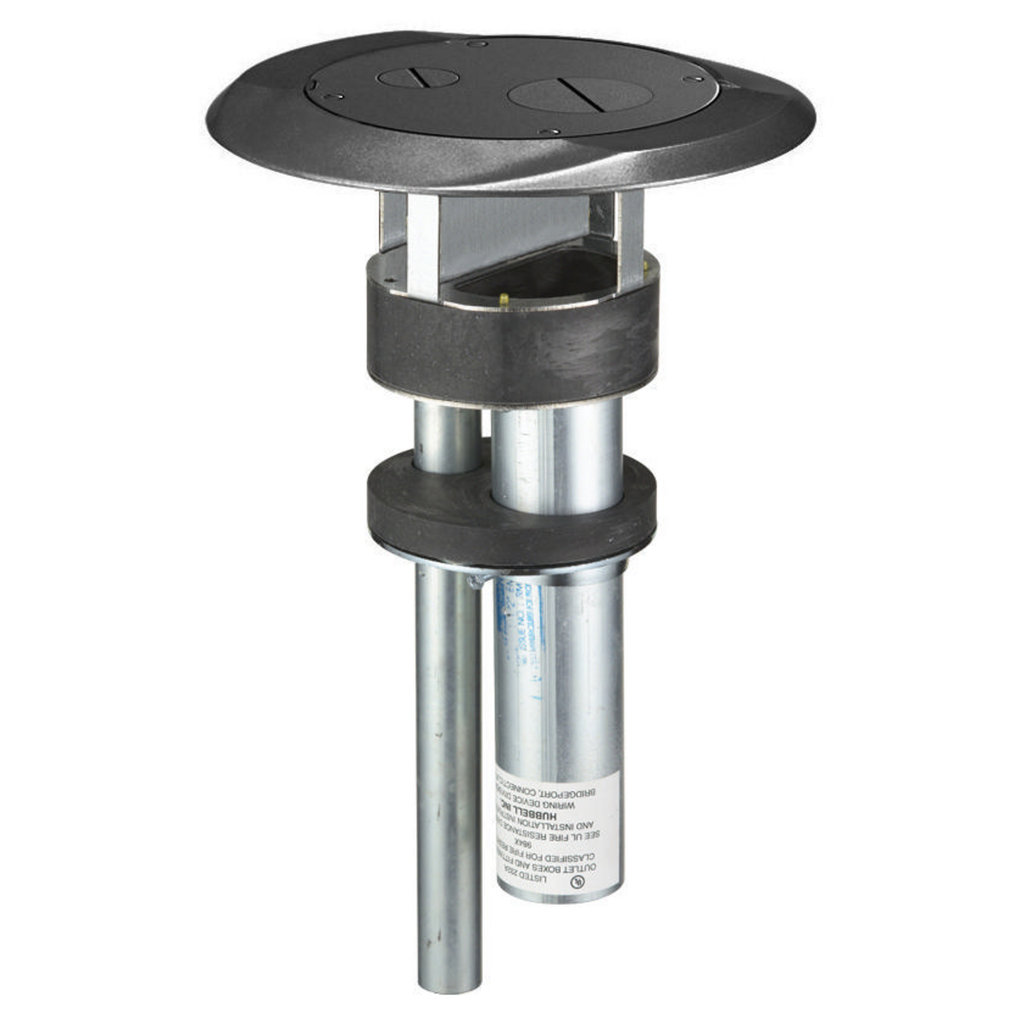

Fire-Rated Poke-Through, One-Piece, Furniture Feed with Painted Aluminum Cover

This fire-rated poke-through unit is designed for furniture feed applications, providing a secure and code-compliant pathway for electrical and low voltage wiring through concrete floors. It is suitable for electrical distributors and lighting solutions providers seeking reliable wire and cable management in commercial environments. The unit features a one-piece fabricated composite construction with a black painted aluminum cover, engineered for installation in a 4-inch core hole in concrete floors.

Specifications

• Application: Complete Units
• Material: Composite
• Finish: Black
• Color: Black
• Mounting: 4" Core Hole in Concrete Floor
• Construction: Fabricated
• Cable Entry: Threaded Hubs
• Number of Outlets: (1) 3/4" & (1) 1-1/2" Threaded Hub Multi-Service
• Width: 9.2 in
• Product Weight: 5.4 lbs
• Country of Origin: China
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: S1PTFFBL

Features

• Fire-rated for 1 to 4 hour protection
• One-piece furniture feed design for streamlined installation
• Includes black painted aluminum cover for durability and aesthetics
• Threaded hubs for secure cable entry and multi-service capability
• Designed for flush mounting over a 4-inch diameter core hole
• UL cULus listed and ADA compliant
• Cover load rating of 300 lbs static load through 3" diameter mandrel
• Access cover made of die cast aluminum for strength and longevity
