FFLED80W
SKU: #110537
Part: #FFLED80W
UPC: 019813315072
FFLED80W
SKU: #110537
Part: #FFLED80W
UPC: 019813315072
Description
FFLED80W LED Floodlight by RAB – High-Efficiency Outdoor Lighting
The FFLED80W is a rectangular-shaped LED floodlight designed to replace traditional 250W Metal Halide fixtures. Engineered for outdoor applications such as building façade lighting, sign lighting, landscape lighting, and security lighting, this product offers energy-efficient, instant-on illumination. Suitable for electrical distributors and lighting solutions providers, it delivers high lumen output with superior optical performance and durability.
Specifications
- Manufacturer: RAB
- Input Wattage: 87 watts
- Lumens: 10,382 lumens
- Efficacy: 119 lumens per watt
- Color Temperature: 5000 kelvins (Cool)
- Color Accuracy: 72 CRI
- LED Lifespan: 100,000 hours (L70 based on IES LM-80 and TM-21)
- Operating Ambient Temperature: Up to 104°F (40°C)
- Minimum Starting Temperature: -40°F (-40°C)
- IP Rating: IP66 for dust and water protection

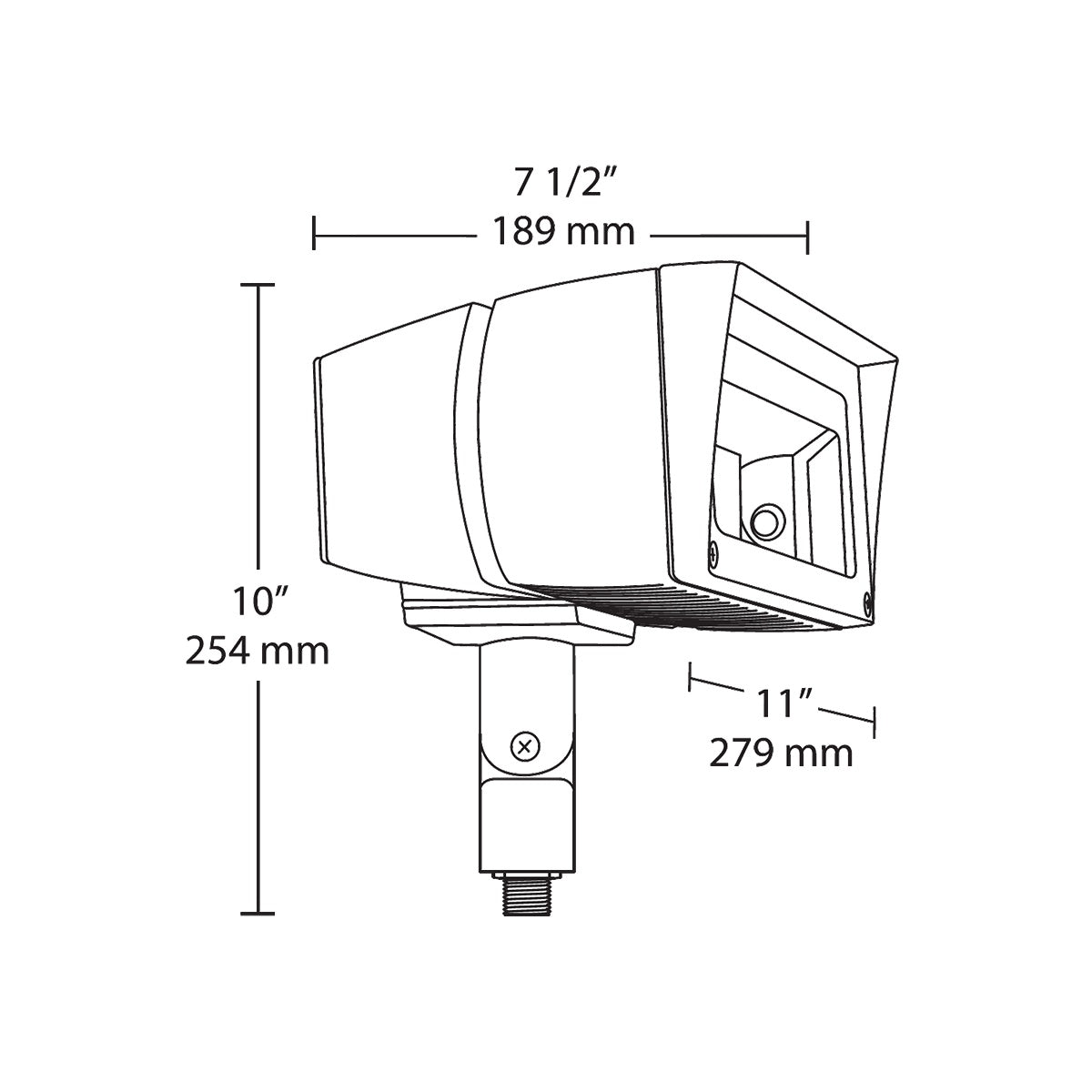

- Dimensions: 7 1/2" W x 10" H x 11" D (189 mm x 254 mm x 279 mm)
- Weight: 12.9 lbs
- Mounting: 1/2" threaded arm with heavy-duty swivel arm
- NEMA Beam Spread: 7H x 6V
- Driver: Constant Current, Class 2, 100-277V, 50/60 Hz, 6 kV surge protection
- Dimming: 0-10V dimming capable, dims down to 10% (requires separate dimming circuit)
- Equivalency: Replaces 250W Metal Halide floodlights
- Compliance: UL Listed for wet locations, DLC Premium Listed
Features
- Ultra-efficient LED and optical design with multi-chip, high-output LEDs
- Patent-pending "Air-Flow" technology for superior heat sinking and extended LED and driver lifespan
- Consistent color performance with 7-step MacAdam Ellipse binning and color stability warranty
- Durable die-cast aluminum housing with high-temperature silicone gaskets and formulated finish for long-lasting color
- Suitable for ground mounting and harsh outdoor environments
- Mercury and UV free; RoHS-compliant components for green technology
- Heavy-duty mounting arm with stainless steel hardware and "O" ring seal for secure installation
- High power factor and low total harmonic distortion for electrical efficiency
- 5-year warranty covering light output, color stability, driver performance, and fixture finish
