FFLED80SF
SKU: #110519
Part: #FFLED80SF
UPC: 019813315140
FFLED80SF
SKU: #110519
Part: #FFLED80SF
UPC: 019813315140
Description
FFLED80SF LED Floodlight by RAB - High-Efficiency Outdoor Lighting
The FFLED80SF is a rectangular LED floodlight designed to replace 250W Metal Halide fixtures, providing energy-efficient and durable lighting solutions. Ideal for building façades, sign lighting, landscape lighting, and instant-on security lighting, this product is suitable for electrical distributors and lighting solutions providers seeking reliable, high-performance outdoor lighting. It features advanced "Air-Flow" technology for superior thermal management, ensuring extended LED and driver lifespan.
Specifications
- Manufacturer: RAB
- Model Number: FFLED80SF
- Lumens: 10,382 lumens
- Efficacy: 119 lumens per watt
- Input Wattage: 87 watts
- Color Temperature: 5000 kelvins (Cool)
- Color Accuracy: 72 CRI
- Weight: 13.2 lbs

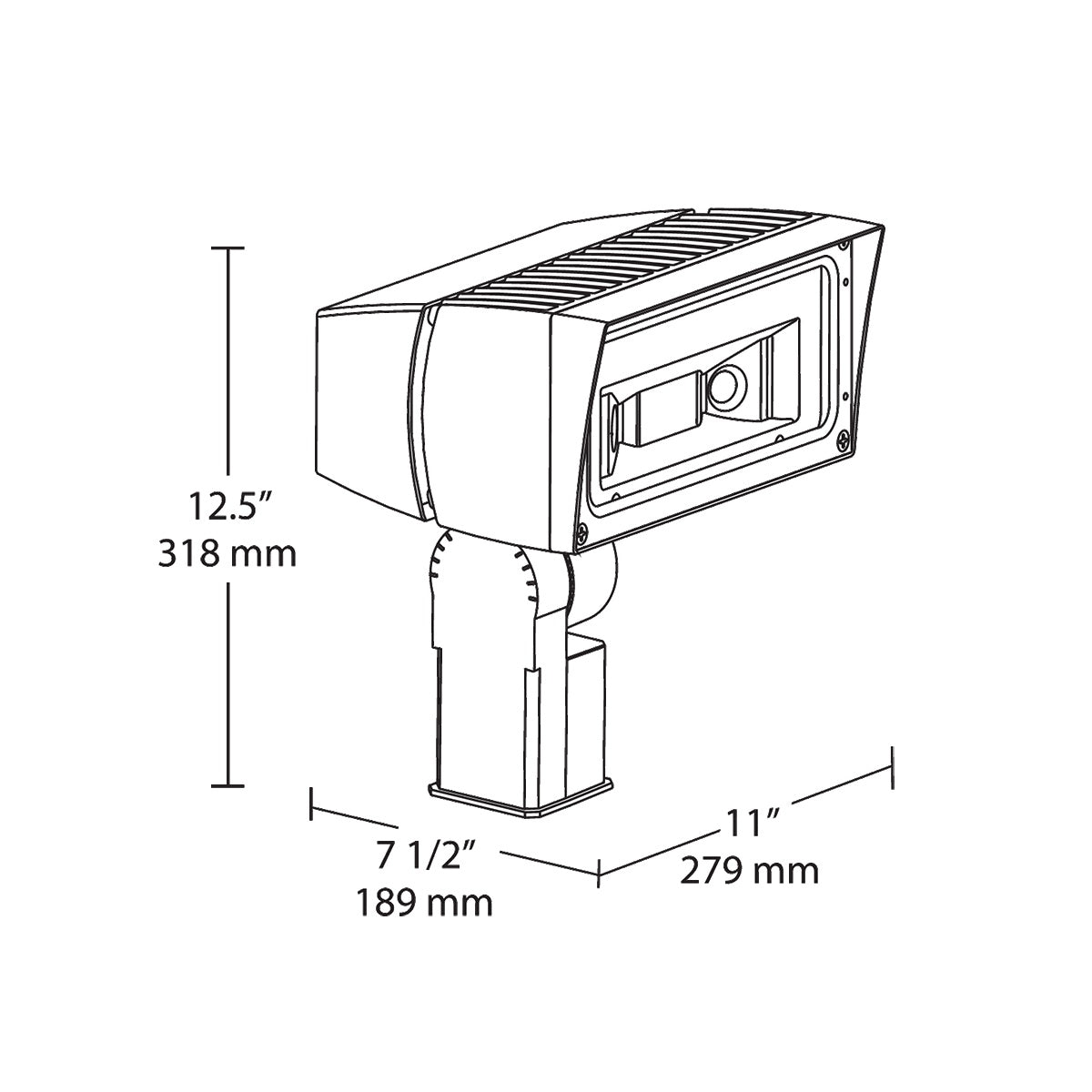

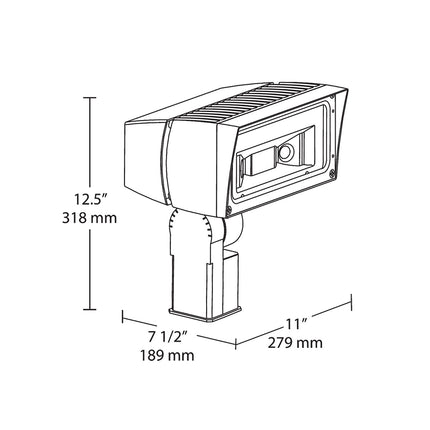

- Dimensions: 12.5" (H) x 11" (W) x 7.5" (D) (318 mm x 279 mm x 189 mm)
- Minimum Starting Temperature: -40°C (-40°F)
- Maximum Ambient Temperature: 40°C (104°F)
- IP Rating: IP66 for dust and water protection
- Voltage: 100-277V, 50/60 Hz with 6 kV surge protection
- Power Factor: 99.7% at 120V, 94.6% at 277V
- THD: 4.63% at 120V, 6.44% at 277V
- L70 Lifespan: 100,000 hours based on IES LM-80 and TM-21 calculations
- Mounting: Heavy-duty slipfitter for 2 3/8" OD pipe with 1/2" threaded arm
- Reflector: Specular polycarbonate
- Gaskets: High-temperature silicone
- NEMA Beam Spread: 7H x 6V
- Equivalency: Replaces 250W Metal Halide
- Compliance: UL Listed, DLC Listed (DLC Product Code: PTKPSNQC), suitable for wet locations and ground mounting
Features
- Ultra-efficient LED and optical design
- Patent-pending "Air-Flow" technology heatsink for superior thermal management
- Constant current, Class 2 driver with 0-10V dimming capability down to 10% (requires separate dimming circuit)
- 7-step MacAdam Ellipse binning for consistent color across fixtures
- Color temperature stability warrantied to shift no more than 200K over 5 years
- Durable die-cast aluminum housing with high-durability finish
- Mercury and UV free, RoHS-compliant components
- Rotates in 6-degree increments for precise aiming
- 5-year no-compromise warranty covering light output, color stability, driver performance, and finish
- Buy American Act (BAA) compliance available upon request
