FFLED80 LED Floodlight for Electrical Distributors and Lighting Solutions

The FFLED80 is a rectangular LED floodlight designed to replace 250W metal halide fixtures, offering energy-efficient lighting suitable for building façades, sign lighting, landscape illumination, and instant-on security lighting. Manufactured by RAB, this fixture is ideal for electrical distributors and switchgear suppliers looking to provide durable, high-performance lighting solutions with advanced thermal management and long lifespan.

Specifications

• Input Wattage: 86.8 watts
• Lumens: 10,382 lumens
• Efficacy: 119.6 lumens per watt
• Color Temperature: 5000 kelvins (Cool)
• Color Accuracy: 72 CRI
• LED Lifespan: 100,000 hours (based on IES LM-80 and TM-21 calculations)
• Operating Ambient Temperature: Up to 104 degrees Fahrenheit (40°C)
• Minimum Starting Temperature: -40 degrees Celsius (-40°F)
• IP Rating: IP66 for dust and water protection

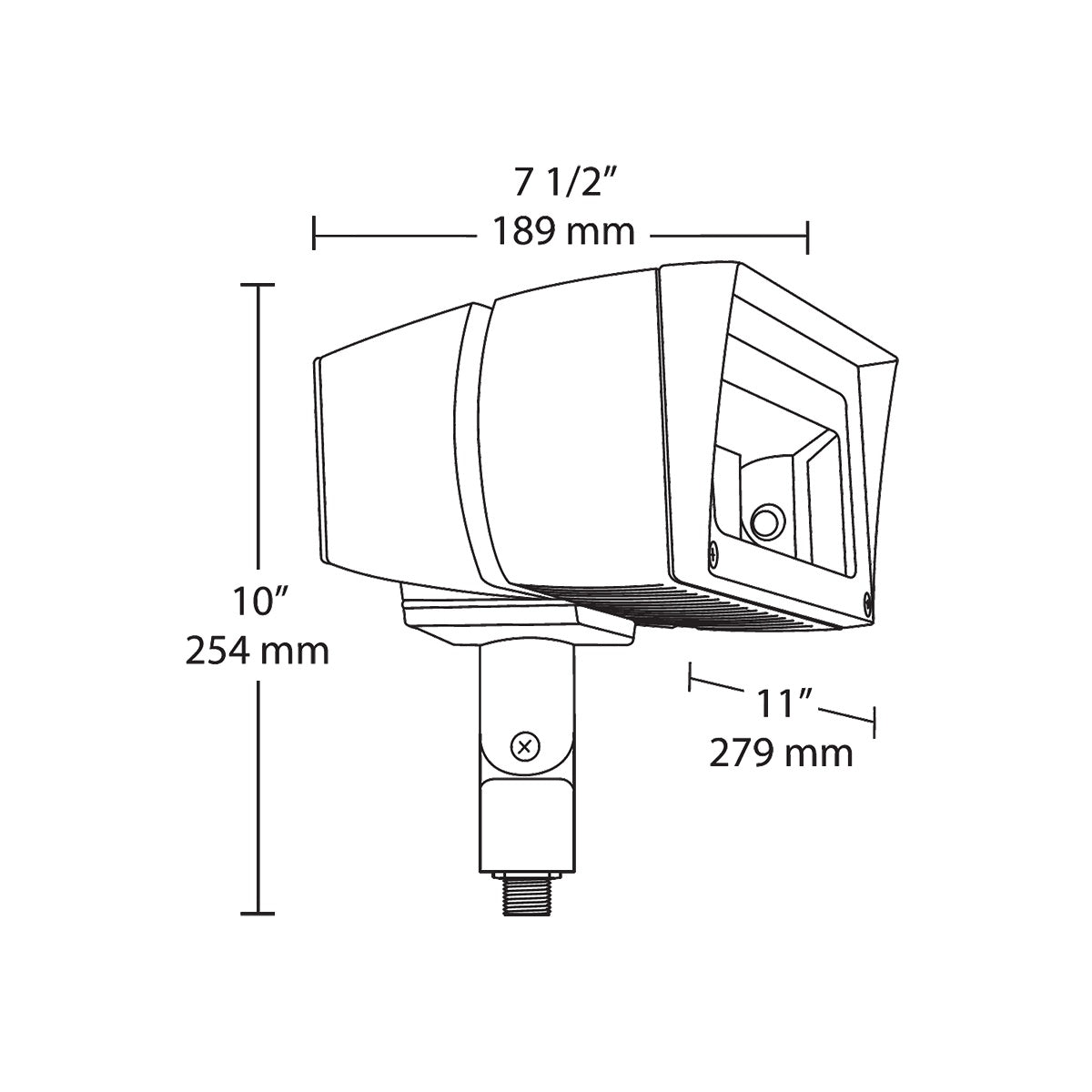

• Dimensions: 7 1/2" W x 10" H x 11" D (189 mm x 254 mm x 279 mm)
• Weight: 11.5 lbs
• Driver Type: Constant Current, Class 2, 100-277V, 50/60 Hz, with 6 kV surge protection
• Dimming: 0-10V dimmable down to 10% (requires separate dimming circuit)
• Power Factor: 99.7% at 120V, 94.6% at 277V
• Total Harmonic Distortion (THD): 4.63% at 120V, 6.44% at 277V
• Mounting: Heavy-duty arm with 1/2" threaded arm and "O" ring seal with stainless steel screw
• Reflector: Specular polycarbonate
• Gaskets: High-temperature silicone
• Finish: Durable bronze color with long-lasting coating
• NEMA Beam Spread: 7H x 6V
• Equivalency: Replaces 250W Metal Halide
• Certifications: UL Listed for wet locations, DLC Listed as a premium ultra-efficient product

Features

• Ultra-efficient LED and optical design
• Patent-pending "Air-Flow" heat sink technology for superior thermal management and extended LED and driver lifespan
• 7-step MacAdam Ellipse binning for consistent color across fixtures
• Mercury and UV free, RoHS-compliant components
• Heavy-duty mounting arm with 180° vertical aiming adjustment
• Suitable for ground mounting and wet locations
• 5-year warranty covering light output, color stability, driver performance, and fixture finish
• Buy American Act compliance available upon request
