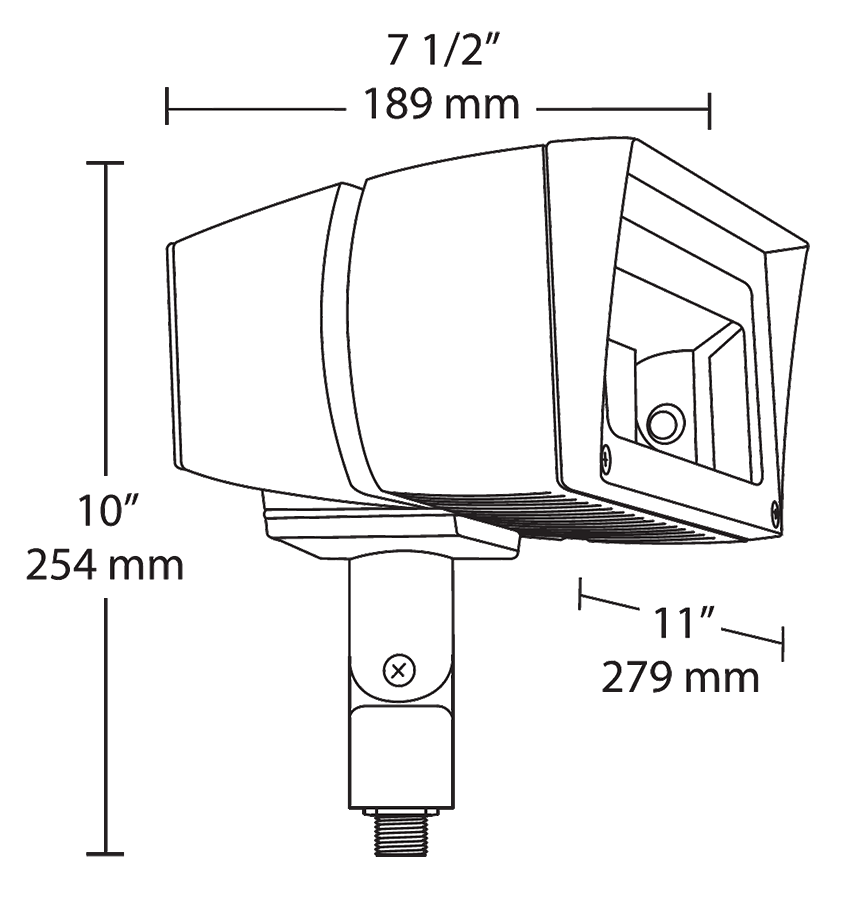

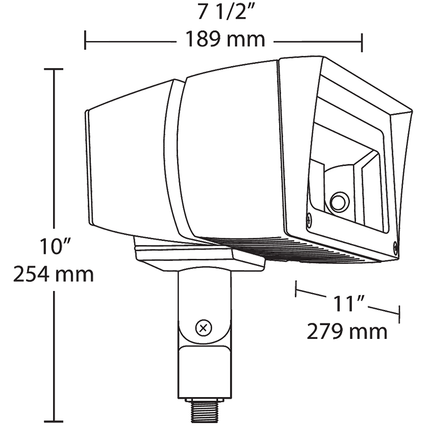

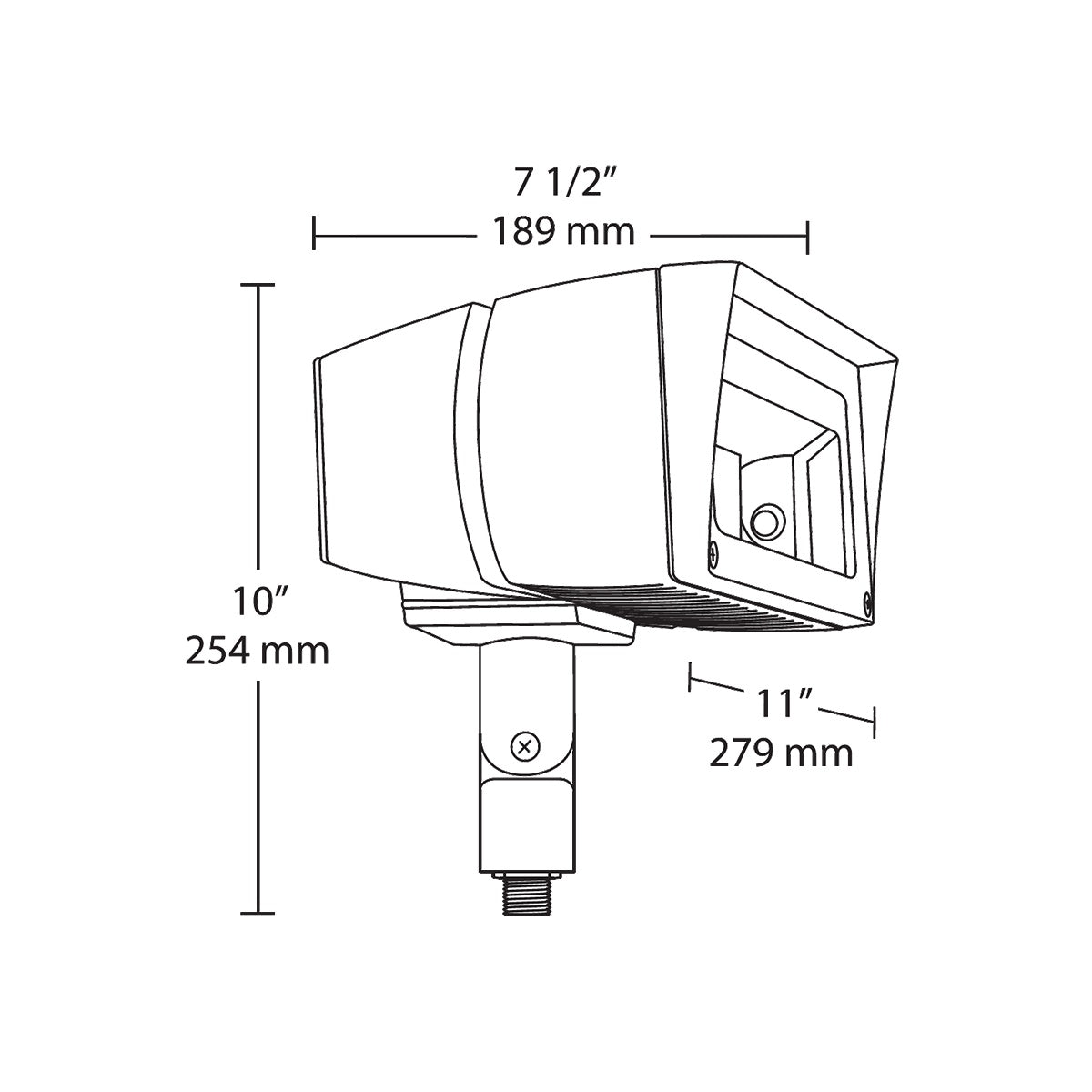

FFLED52Y/D10 LED Floodlight

The FFLED52Y/D10 is a rectangular LED floodlight designed to replace 175W Metal Halide fixtures, providing efficient lighting solutions for building façades, sign lighting, landscape lighting, and security applications. Manufactured by RAB, this floodlight is suitable for electrical distributors and switchgear suppliers seeking durable, high-performance lighting products with advanced thermal management and dimming capabilities.

Specifications

• Manufacturer: RAB
• Input Wattage: 58 watts
• Lumens: 7,332 lumens
• Efficacy: 126 lumens per watt
• Color Temperature: 3000 kelvins (Warm)
• Color Accuracy: 71 CRI
• Product Weight: 12.5 lbs
• Ambient Temperature Rating: Up to 104°F (40°C)
• Minimum Starting Temperature: -40°C (-40°F)
• LED Lifespan: 100,000 hours (L70, based on IES LM-80 and TM-21)
• Ingress Protection: IP66 (dust and water resistant)
• Mounting: 1/2" threaded arm
• Dimming: 0-10V dimmable down to 10%
• Power Factor: 99.9% at 120V, 93.8% at 277V
• THD: 7.13% at 120V, 6.44% at 277V
• Beam Spread: NEMA 7H x 6V
• Reflector: Specular polycarbonate
• Gaskets: High-temperature silicone
• Housing Material: Die-cast aluminum with bronze finish

Features

• Replaces 175W Metal Halide floodlights with ultra-efficient LED technology
• Patented "Air-Flow" heat sink technology for superior thermal management and extended LED and driver lifespan
• Constant current driver with 0-10V dimming capability
• Suitable for wet locations and mounting within 4 feet of the ground
• Heavy-duty mounting arm with "O" ring seal and stainless steel screw for secure installation
• Mercury and UV free, RoHS-compliant components for green technology compliance
• Consistent color temperature with 3-step MacAdam Ellipse binning and warranty on color stability (≤ 200K shift over 5 years)
• 5-year warranty covering light output, color stability, driver performance, and fixture finish
• Buy American Act compliance available upon request

Downloads & Links

• Spec Sheet
• Instructions
