FFLED52B44
SKU: #110481
Part: #FFLED52B44
UPC: 019813224589
FFLED52B44
SKU: #110481
Part: #FFLED52B44
UPC: 019813224589
Description
FFLED52B44 LED Floodlight by RAB – Energy-Efficient Outdoor Lighting Solutions
The FFLED52B44 is a rectangular LED floodlight designed to replace traditional 175W metal halide fixtures. It offers energy-efficient lighting suitable for building façades, sign lighting, landscape illumination, and instant-on security applications. This fixture is ideal for electrical distributors and lighting solutions providers seeking durable, high-performance outdoor lighting with advanced thermal management and long lifespan.
Specifications
- Manufacturer: RAB
- Input Wattage: 57 watts
- Lumens: 6,820 lumens
- Efficacy: 118 lumens per watt
- Color Temperature: 5000 kelvins (Cool)
- Color Accuracy: 75 CRI
- Product Weight: 10.6 lbs
- Minimum Starting Temperature: -40°C (-40°F)
- Ambient Temperature Rating: Up to 40°C (104°F)
- LED Lifespan: 100,000 hours (L70)
- Driver Type: Constant Current, Class 2, 100-277V, 50/60 Hz, 4 kV surge protection
- Dimming: 0-10V dimmable down to 10%
- Mounting: 1/2" threaded arm with heavy-duty mounting arm and stainless steel screw

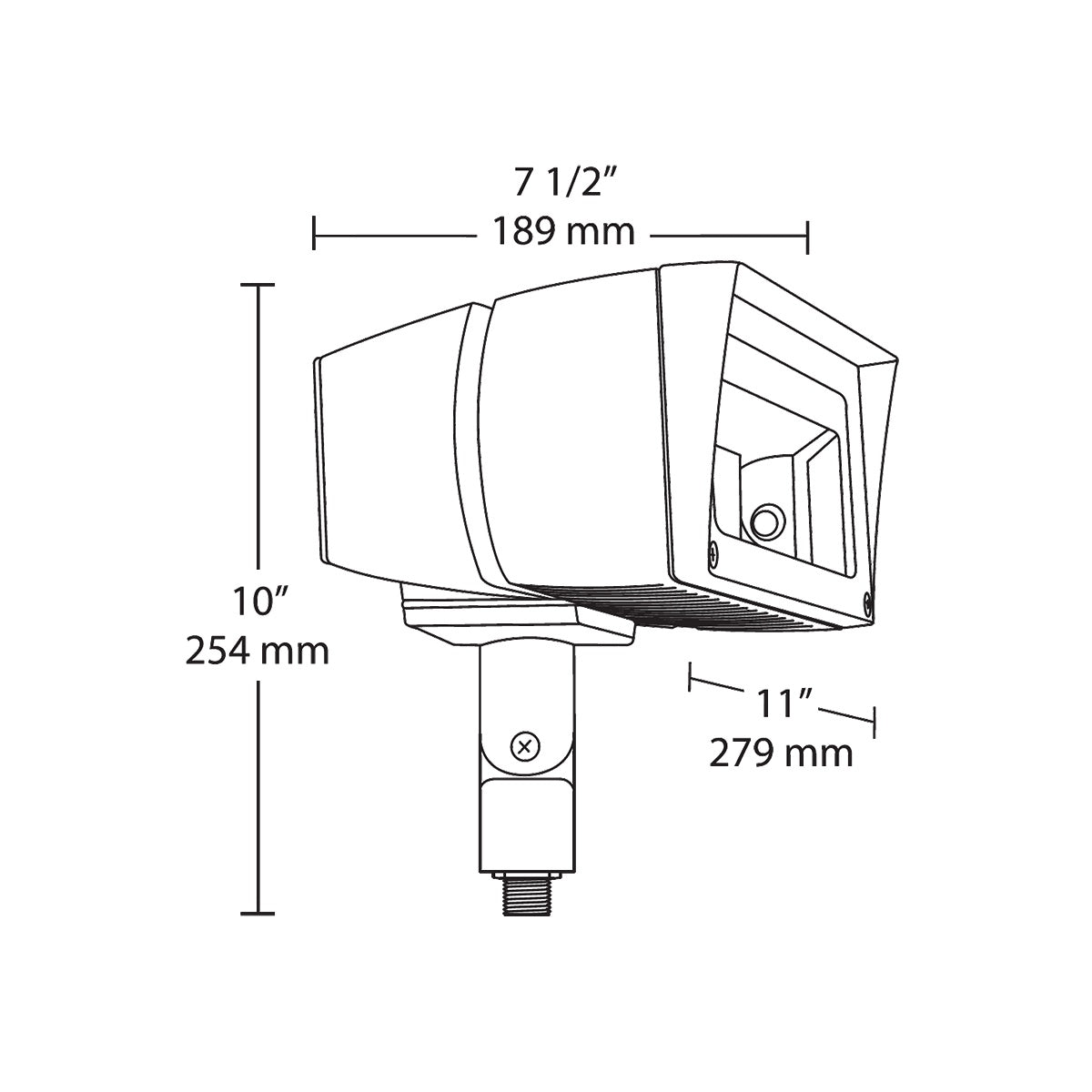

- Dimensions: 7.5" (W) x 10" (H) x 11" (D)
- Finish: Bronze
- NEMA Beam Spread: 4H x 4V
- Equivalent to: 200W Metal Halide
- UL Listed for wet locations, suitable for mounting within 4 ft of the ground
- DLC Listed: Premium ultra-efficient product qualifying for highest tier rebates
Features
- Patent-pending "Air-Flow" technology for superior heat sinking and extended LED and driver lifespan
- Ultra-efficient LED and optical design
- 100,000-hour LED lifespan based on LM-80 and TM-21 calculations
- High durability die-cast aluminum housing with lens frame and mounting arm
- Specular polycarbonate reflector with high-temperature silicone gaskets
- Green technology: Mercury and UV free, RoHS-compliant components
- 7-step MacAdam Ellipse binning for consistent color uniformity and stability
- 5-year warranty covering light output, color stability, driver performance, and fixture finish
- Heavy-duty mounting arm with "O" ring seal and stainless steel screw for secure installation
