FFLED52 LED Floodlight by RAB – High-Efficiency Outdoor Lighting

The FFLED52 is a rectangular-shaped LED floodlight designed to replace 175W metal halide fixtures, providing an energy-efficient lighting solution for building façades, sign lighting, landscape lighting, and instant-on security lighting. Manufactured by RAB, this floodlight is suitable for electrical distributors and lighting solution providers seeking durable, high-performance outdoor lighting with advanced thermal management.

Specifications

• Manufacturer: RAB
• Model Number: FFLED52
• Input Wattage: 58 watts
• Lumens: 7,597 lumens
• Efficacy: 131 lumens per watt
• Color Temperature: 5000 kelvins (cool white)
• Color Accuracy: 75 CRI
• LED Lifespan: 100,000 hours (L70 based on IES LM-80 and TM-21)
• Operating Ambient Temperature: Up to 40°C (104°F)
• Minimum Starting Temperature: -40°C (-40°F)
• IP Rating: IP66 for dust and water ingress protection

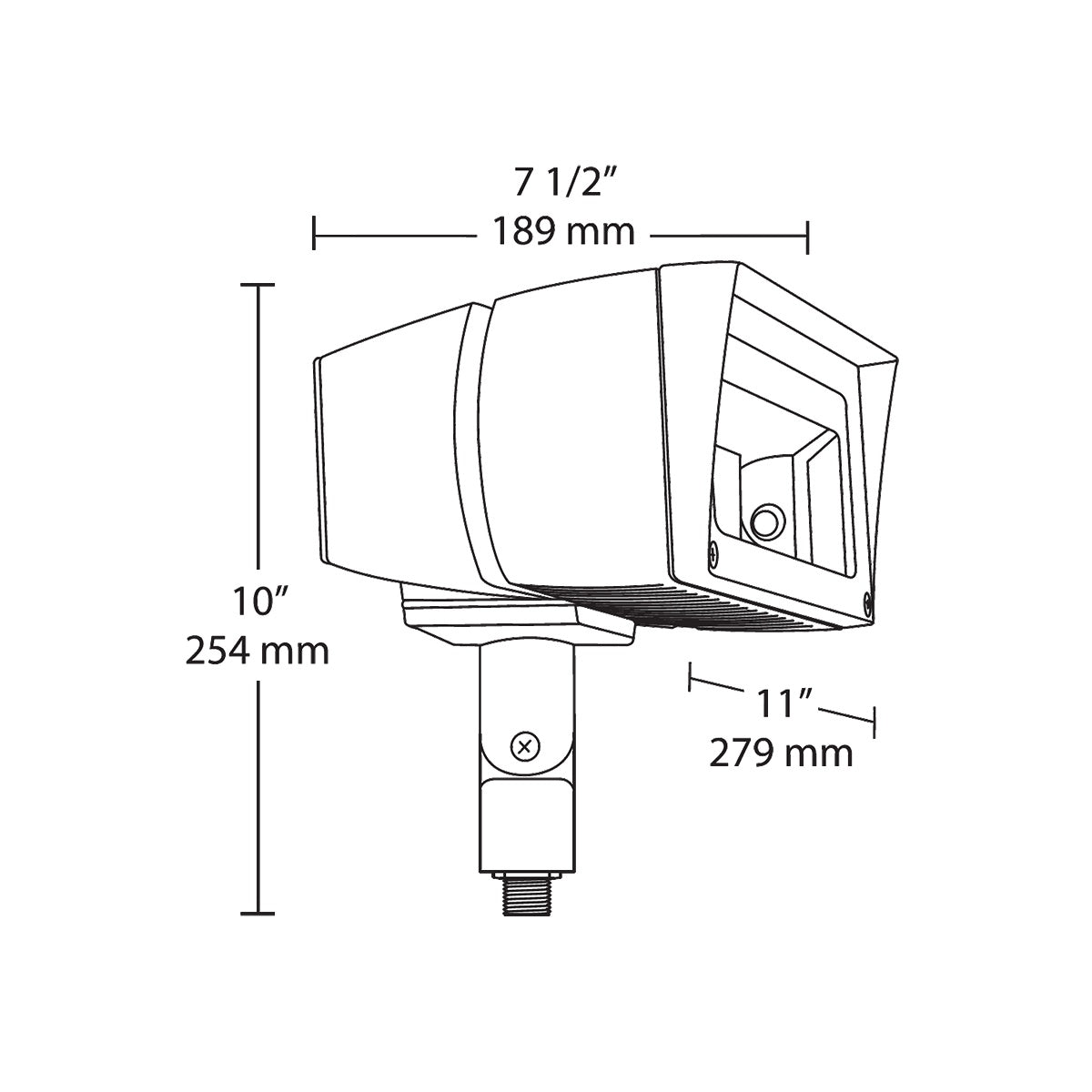

• Dimensions: 7.5" W x 10" H x 11" D (189 mm x 254 mm x 279 mm)
• Weight: 10.6 lbs
• Electrical: Constant Current, Class 2, 100-277V, 50/60 Hz, 4 kV surge protection
• Dimming: 0-10V dimmable down to 10% (requires separate dimming circuit)
• Beam Spread: NEMA 7H x 6V
• Reflector: Specular polycarbonate
• Mounting: Heavy-duty mounting arm with 1/2" threaded arm and stainless steel screw
• Finish: Bronze, formulated for high durability and long-lasting color
• Compliance: UL Listed for wet locations, DLC Premium Listed, IESNA LM-79 and LM-80 tested

Features

• Replaces 175W metal halide floodlights with superior energy efficiency
• Patent-pending "Air-Flow" technology for enhanced heat sinking and extended LED and driver lifespan
• Superior thermal management with external Air-Flow fins
• Heavy-duty construction with die-cast aluminum housing, lens frame, and mounting arm
• Mercury and UV free; RoHS-compliant components for green technology
• 5-year warranty covering light output, color stability, driver performance, and fixture finish
• Designed for versatile mounting options including arm, slipfitter, and trunnion mounts
