FFLED39Y LED Floodlight by RAB – High-Efficiency Outdoor Lighting

The FFLED39Y is a rectangular LED floodlight designed to replace 150W metal halide fixtures, providing energy-efficient lighting solutions for building façades, signage, landscape illumination, and security applications. Manufactured by RAB, this floodlight features patented "Air-Flow" technology to enhance LED and driver lifespan, making it suitable for electrical distributors and lighting solution providers seeking durable and reliable outdoor lighting products.

Specifications

• Manufacturer: RAB
• Input Wattage: 42 watts
• Lumens: 5,518 lumens
• Efficacy: 132 lumens per watt
• Color Temperature: 3000 kelvins (Warm)
• Color Accuracy: 72 CRI
• Lens Material: Soda Lime Silica Clear Glass
• Product Weight: 10.3 lbs

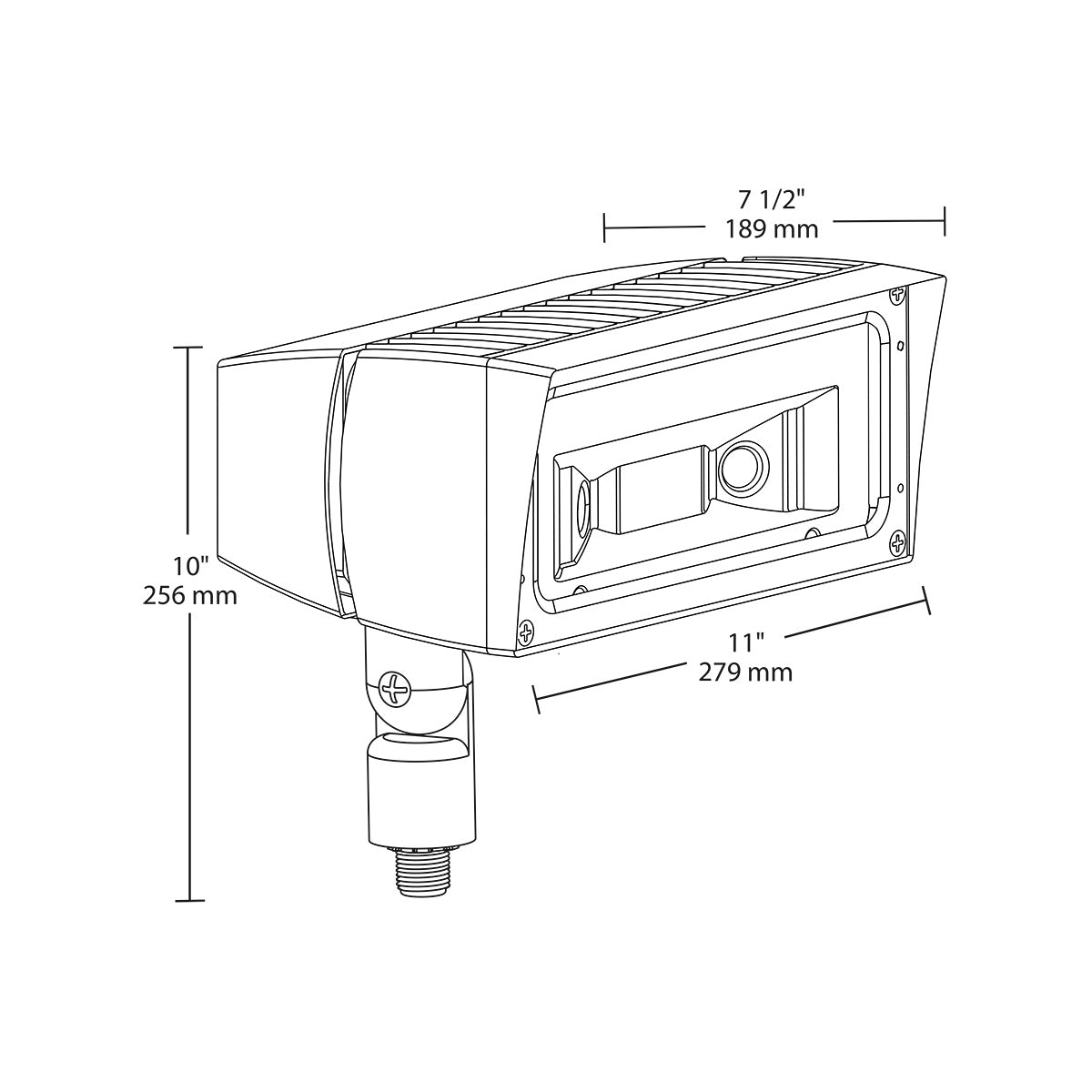

• Dimensions: 11" (279 mm) length x 7.5" (189 mm) width x 10" (256 mm) height
• Minimum Starting Temperature: -40°C (-40°F)
• Maximum Ambient Temperature: 40°C (104°F)
• IP Rating: IP66 for dust and water protection
• Driver Type: Constant Current, Class 2, 120-277V, 50-60Hz
• LED Lifespan: 100,000 hours (L70 based on IES LM-80 and TM-21)
• UL Listed for wet locations, suitable for mounting within 4 ft (1.2 m) of the ground
• DLC Listed as an ultra-efficient premium product (DLC Product Code: P0000173I)

Features

• Patented "Air-Flow" technology for extended LED and driver lifespan
• Replaces 150W metal halide floodlights with improved energy efficiency
• Die-cast aluminum housing with durable bronze finish
• Heavy-duty mounting arm with "O" ring seal and stainless steel screw
• 0-10V dimming capable, dims down to 10% (requires separate dimming circuit)
• Mercury and UV free; RoHS-compliant components
• Consistent color quality with 3-step MacAdam Ellipse binning
• Warranty: 5-year coverage including light output, color stability, driver performance, and fixture finish

Downloads & Links

• Spec Sheet
• Instructions
• LM79
