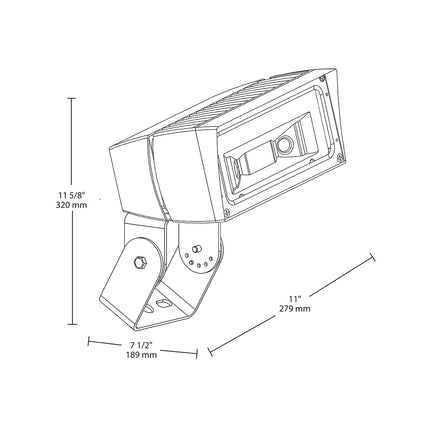

FFLED39TNW/PCS LED Floodlight

The FFLED39TNW/PCS is a rectangular LED floodlight designed to replace 150W Metal Halide fixtures, providing efficient lighting solutions for building façades, sign lighting, landscape lighting, and security lighting applications. This product is suitable for electrical distributors and lighting solution providers seeking a durable, high-performance floodlight with advanced features such as patented "Air-Flow" technology to extend LED and driver lifespan.

Specifications

• Manufacturer: RAB
• Input Wattage: 42 watts
• Lumens: 5,641 lumens
• Efficacy: 134 lumens per watt
• Color Temperature: 4000 kelvins (Neutral)
• Color Accuracy: 75 CRI
• Lens Material: Soda Lime Silica Clear Glass
• Product Weight: 14.8 lbs
• Ambient Temperature Rating: 104°F (40°C) max
• Minimum Starting Temperature: -40°C (-40°F)
• Mounting: Heavy-duty Trunnion mount with stainless steel hardware
• IP Rating: IP66 for dust and water protection
• LED Lifespan: 100,000 hours (L70 based on IES LM-80 and TM-21)
• Driver Type: Constant Current, Class 2, 120-277V, 50-60Hz
• Dimming: 0-10V dimming compatible, dims down to 10%

Features

• Patented "Air-Flow" technology for extended LED and driver life
• Equivalent to 150W Metal Halide floodlights
• Ultra-efficient LED and optical design
• Suitable for wet locations and mounting within 4 feet of the ground
• 120V swivel photocell included for energy savings
• High power factor and low total harmonic distortion
• Mercury and UV free, RoHS-compliant components
• 5-year warranty covering light output, color stability, driver performance, and fixture finish

Downloads & Links

• Spec Sheet
• Instructions
• LM79
