FFLED39TNW LED Floodlight Lighting Solutions

The FFLED39TNW is a rectangular LED floodlight designed to replace 150W Metal Halide fixtures. It is suitable for building façades lighting, sign lighting, LED landscape lighting, and instant-on security lighting. This fixture offers high efficacy and long lifespan, making it an ideal choice for electrical distributors and lighting solution providers seeking efficient outdoor lighting products.

Specifications

• Manufacturer: RAB
• Input Wattage: 42 watts
• Lumens: 5,641 lumens
• Efficacy: 134 lumens per watt
• Color Temperature: 4000 kelvins (Neutral)
• Color Accuracy: 75 CRI
• Lens Material: Soda Lime Silica Clear Glass
• Product Weight: 14.8 lbs
• Ambient Temperature Rating: Up to 104°F (40°C)
• Minimum Starting Temperature: -40°C (-40°F)
• Mounting: Heavy-duty Trunnion mount with stainless steel hardware
• IP Rating: IP66 for dust and water protection
• LED Lifespan: 100,000 hours (based on IES LM-80 and TM-21 calculations)
• Driver Type: Constant Current, Class 2, 120-277V, 50-60Hz
• Dimming: 0-10V dimming capable, dims down to 10%

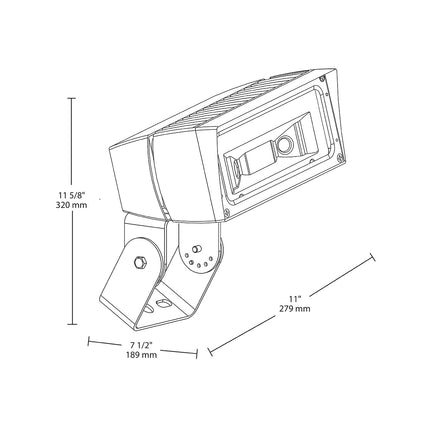

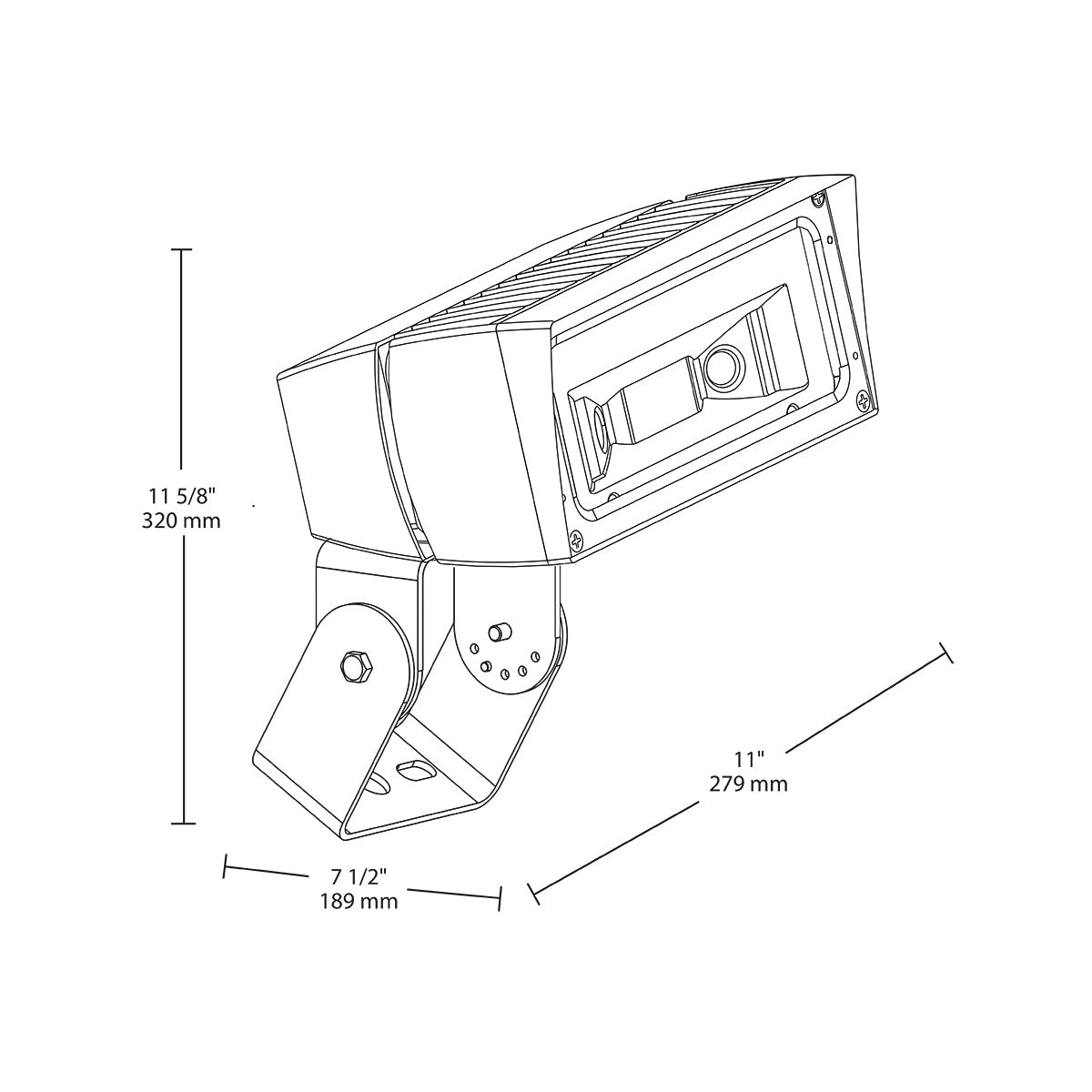

• Dimensions: 11 5/8" (H) x 11" (L) x 7 1/2" (W)

Features

• Replaces 150W Metal Halide floodlights
• Patent-pending "Air-Flow" technology for extended LED and driver lifespan
• Ultra-efficient LED and optical design
• High durability die-cast aluminum housing with lens frame and mounting arm
• Mercury and UV free, RoHS-compliant components
• 3-step MacAdam Ellipse binning for consistent color
• Color temperature stability with less than 200K shift over 5 years
• DLC listed as an ultra-efficient premium product for rebate qualification
• 5-year warranty covering light output, color stability, driver performance, and finish

Downloads & Links

• Spec Sheet
• Instructions
• LM79
