Description
FFLED39T LED Floodlight
The FFLED39T is a rectangular LED floodlight designed to replace 150W Metal Halide fixtures, offering an ultra-efficient lighting solution for building façades, sign lighting, landscape lighting, and instant-on security applications. This floodlight features patented "Air-Flow" technology to ensure extended LED and driver lifespan. It is suitable for electrical distributors and lighting solutions providers seeking durable, high-performance outdoor lighting products.
Specifications
- Manufacturer: RAB
- Input Wattage: 41 watts
- Lumens: 5,753 lumens
- Efficacy: 141 lumens per watt
- Color Temperature: 5000 kelvins (Cool)
- Color Accuracy: 75 CRI
- Lens Material: Soda Lime Silica Clear Glass
- Ambient Temperature Rating: 104 degrees Fahrenheit (40°C)
- Minimum Starting Temperature: -40 degrees Celsius (-40°F)
- Weight: 14.8 lbs

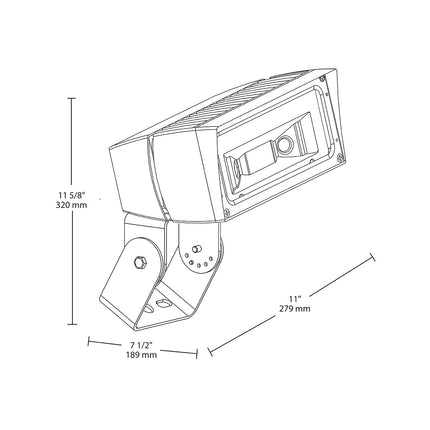

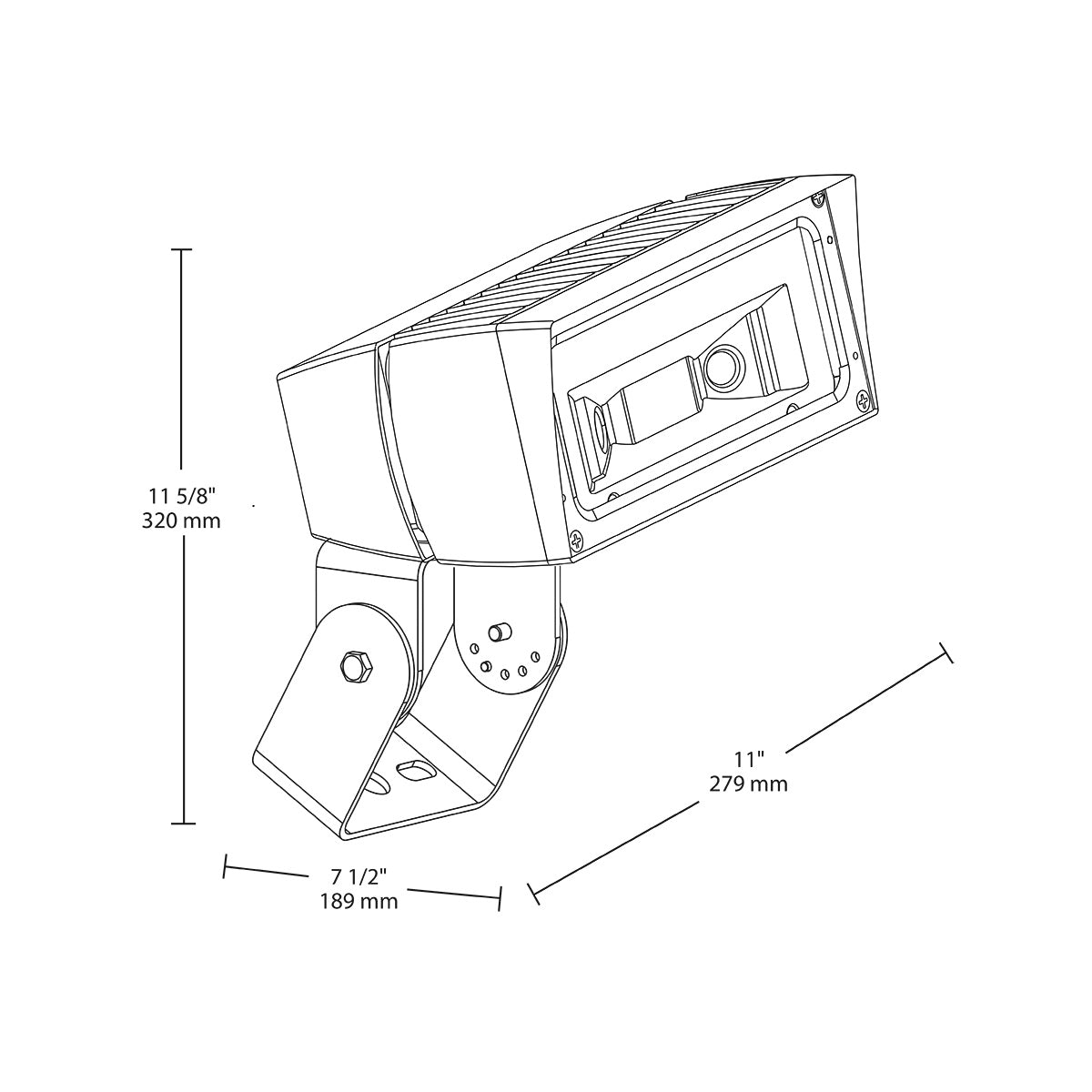

- Dimensions: 11 5/8" (320 mm) height, 11" (279 mm) length, 7 1/2" (189 mm) width
- Operating Voltage: 120-277V, 50/60Hz
- Power Factor: 0.99 at 120V, 0.914 at 277V
- Total Harmonic Distortion (THD): 10.18% at 120V, 18.18% at 277V
- IP Rating: IP66 for dust and water protection
- Mounting: Heavy-duty Trunnion mount with stainless steel hardware
- L70 Lifespan: 100,000 hours based on IES LM-80 and TM-21 calculations
- Compliance: UL Listed for wet locations, DLC Listed as ultra-efficient premium product
Features
- Patented "Air-Flow" technology for enhanced heat dissipation and extended LED and driver life
- Constant current driver with 0-10V dimming capability down to 10%
- Die-cast aluminum housing, lens frame, and mounting arm for durability
- Mercury and UV free; RoHS-compliant components
- 3-step MacAdam Ellipse binning ensures consistent color across fixtures
- Color temperature warranted to shift no more than 200K over 5 years
- Equivalent to 150W Metal Halide performance with significantly improved energy efficiency
- Suitable for mounting within 4 feet of the ground
- Five-year warranty covering light output, color stability, driver performance, and fixture finish
