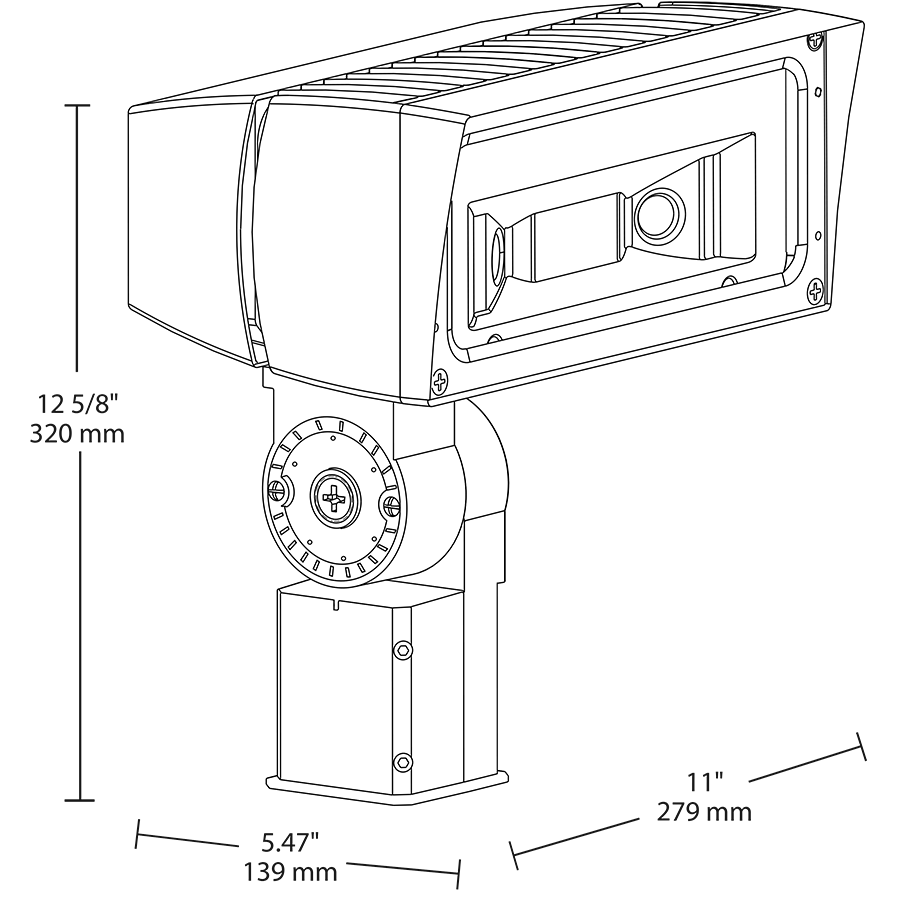

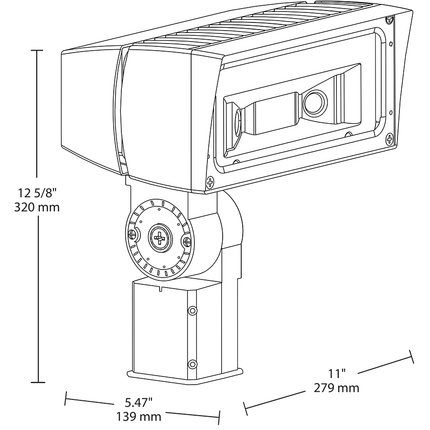

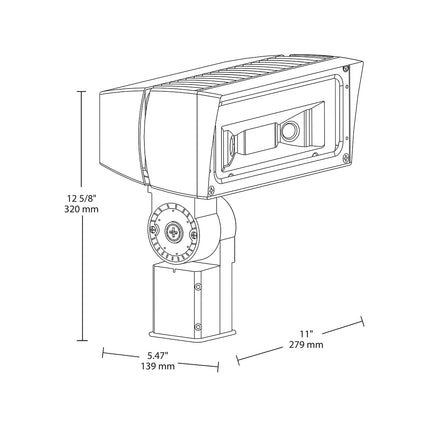

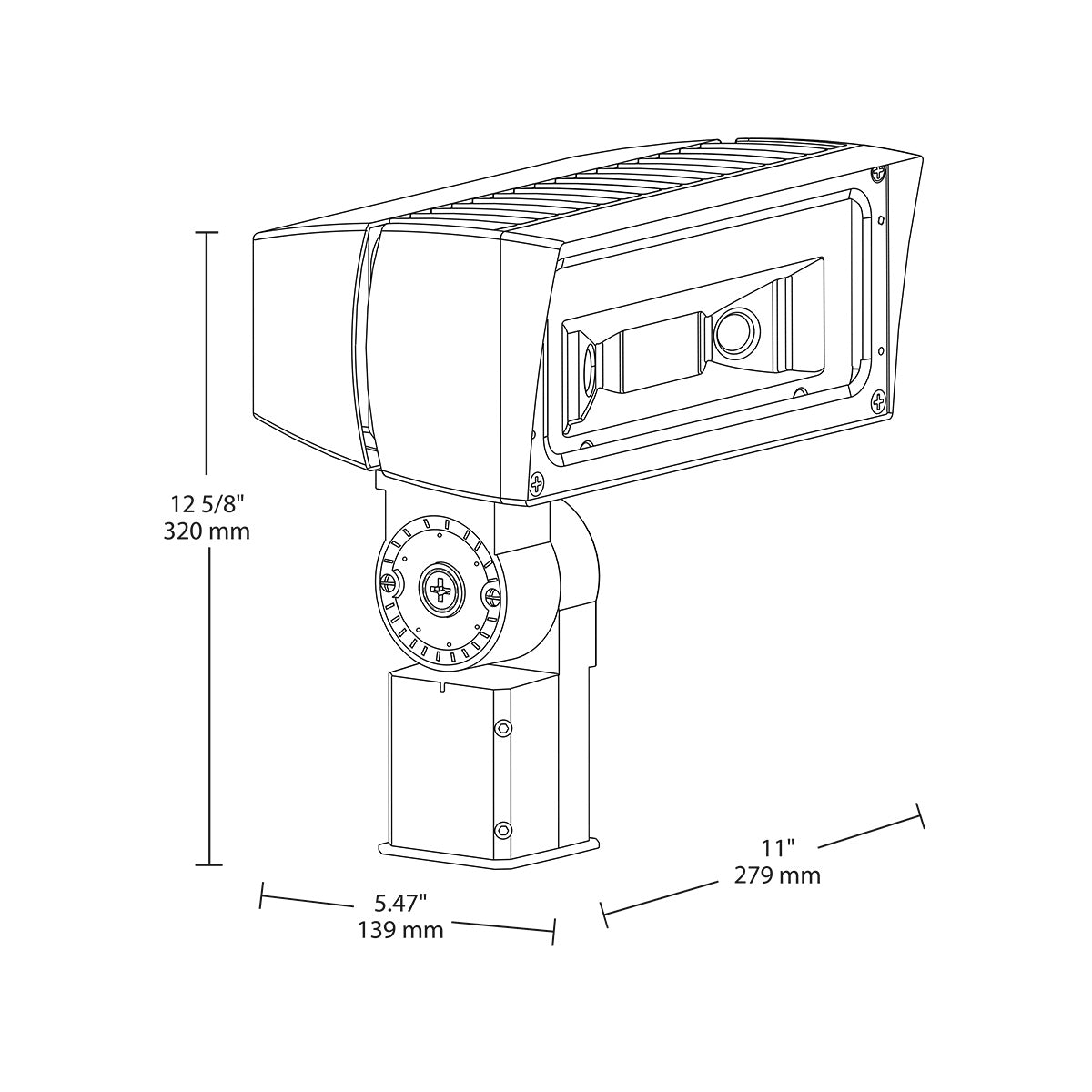

FFLED39SF LED Floodlight by RAB - High-Efficiency Lighting Solution

The FFLED39SF is a rectangular-shaped LED floodlight designed by RAB to replace traditional 150W Metal Halide fixtures. Engineered for durability and efficiency, it is suitable for applications such as building façade lighting, sign lighting, landscape lighting, and instant-on security lighting. This product is ideal for electrical distributors and lighting solution providers seeking reliable, high-performance outdoor lighting options.

Specifications

• Manufacturer: RAB
• Model Number: FFLED39SF
• Input Wattage: 41 watts
• Lumens: 5,753 lumens
• Efficacy: 141 lumens per watt
• Color Temperature: 5000 kelvins (Cool White)
• Color Accuracy: 75 CRI (Color Rendering Index)
• Lens Material: Soda Lime Silica Clear Glass
• Weight: 12.1 lbs
• Operating Voltage: 120-277V, 50/60Hz
• Driver Type: Constant Current, Class 2
• Dimming: 0-10V dimming compatible, dims down to 10%
• IP Rating: IP66 for dust and water ingress protection
• Mounting: Heavy-duty Slip Fitter for 2 3/8" OD pipe
• Maximum Ambient Temperature: 104°F (40°C)
• Minimum Starting Temperature: -40°F (-40°C)
• LED Lifespan: 100,000 hours (based on IES LM-80 and TM-21)
• Warranty: 5 years, covering light output, color stability, driver performance, and fixture finish
• Equivalency: Replaces 150W Metal Halide floodlights

Features

• Patent-pending "Air-Flow" technology enhances heat dissipation for extended LED and driver life
• Ultra-efficient LED and optical design for energy savings
• Mercury and UV free; RoHS-compliant components support green technology initiatives
• 3-step MacAdam Ellipse binning ensures consistent color across fixtures
• Color temperature stability with less than 200K shift over 5 years
• Suitable for wet locations and mounting within 4 feet of the ground
• High power factor (up to 99% at 120V) and low total harmonic distortion
• Rotates in 6-degree increments for precise aiming
• Buy American Act (BAA) compliance available upon request
