FFLED26SF LED Floodlight Lighting Solutions

The FFLED26SF is a rectangular LED floodlight designed by RAB to replace traditional 100W Metal Halide fixtures. It is suitable for applications such as building façades lighting, sign lighting, LED landscape lighting, and instant-on security lighting. This product provides an efficient lighting solution for electrical distributors and switchgear suppliers requiring reliable outdoor illumination with long LED and driver lifespan.

Specifications

• Manufacturer: RAB
• Input Wattage: 29 watts
• Lumens: 4,087 lumens
• Efficacy: 142 lumens per watt
• Color Temperature: 5000 kelvins (Cool)
• Color Accuracy: 75 CRI (Color Rendering Index)
• Lens Material: Soda Lime Silica Clear Glass
• Product Weight: 11.7 lbs
• Minimum Starting Temperature: -40°C (-40°F)
• Maximum Ambient Temperature: 40°C (104°F)
• Mounting: Heavy-duty Slip Fitter for 2 3/8" OD pipe
• IP Rating: IP66 for dust and water protection
• Voltage Range: 120-277V, 50-60Hz
• Driver Type: Constant Current, Class 2
• Dimming: 0-10V dimming capable, dims down to 10%
• LED Lifespan: 100,000 hours (based on IES LM-80 and TM-21)

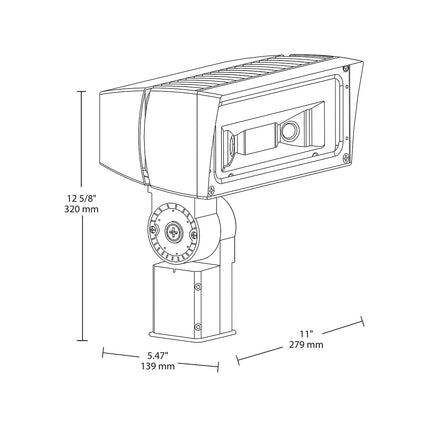

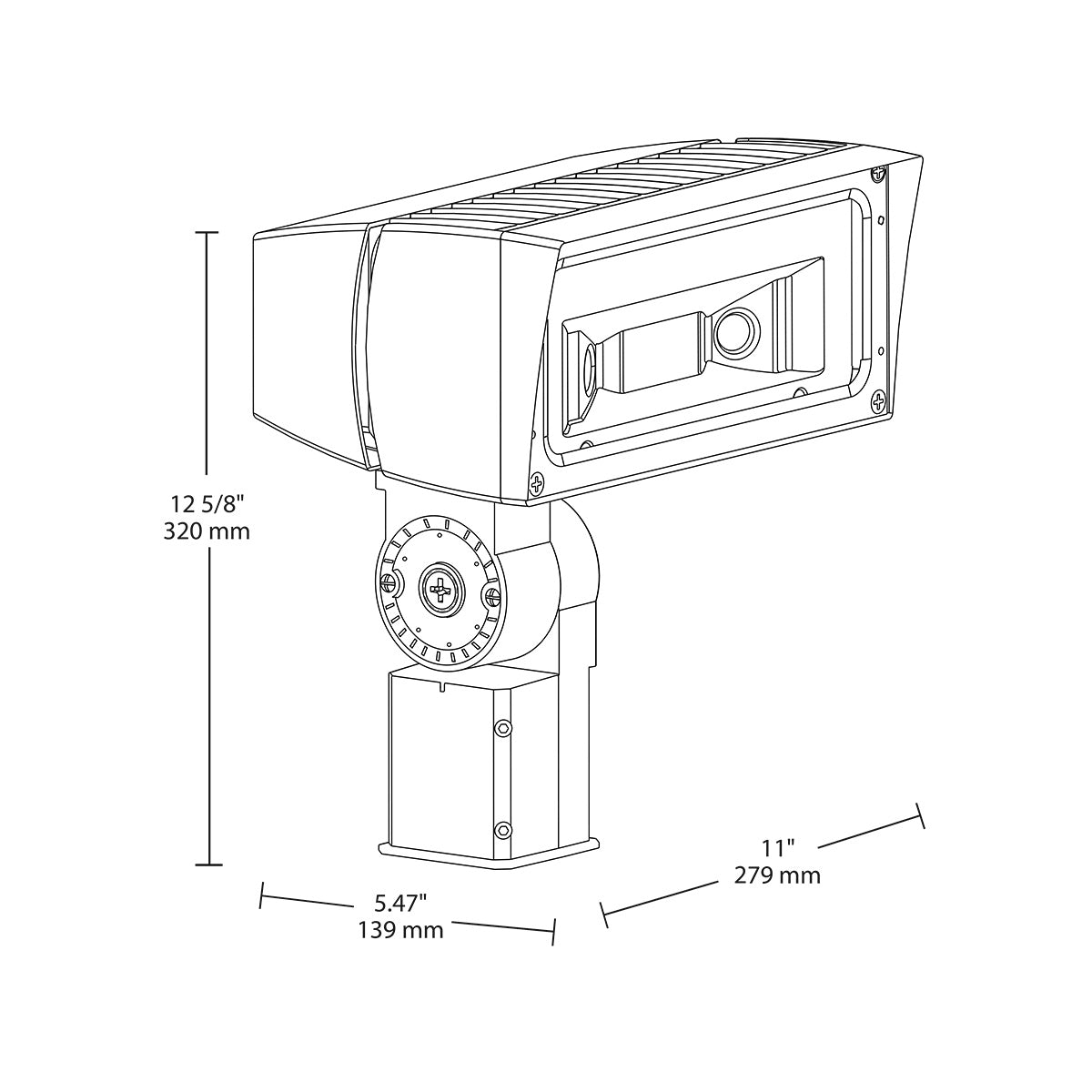

• Dimensions: 12 5/8" (320 mm) height, 11" (279 mm) length, 5.47" (139 mm) width

Features

• Replaces 100W Metal Halide floodlights with ultra-efficient LED technology
• Patent-pending "Air-Flow" technology for improved heat dissipation and extended driver and LED lifespan
• Die-cast aluminum housing and lens frame for durability
• Clear glass lens for optimal light transmission
• Suitable for wet locations and mounting within 4 feet of the ground
• Listed by Design Lights Consortium (DLC) as an ultra-efficient premium product
• High power factor (99.1% at 120V) and low total harmonic distortion (7.54% at 120V)
• Three-step MacAdam Ellipse binning for consistent color across fixtures
• Five-year warranty covering light output, color stability, driver performance, and fixture finish
• Compliant with RoHS and mercury/UV free
