FFLED26 LED Floodlight Lighting Solutions

The FFLED26 is a rectangular-shaped LED floodlight designed to replace 100W Metal Halide fixtures. It is suitable for building façades lighting, sign lighting, LED landscape lighting, and instant-on security lighting. This product is ideal for electrical distributors and switchgear suppliers seeking efficient lighting solutions with long lifespan and high performance. The floodlight features RAB's patent-pending "Air-Flow" technology to ensure extended LED and driver lifespan.

Specifications

• Manufacturer: RAB
• Model Number: FFLED26
• Input Wattage: 29 watts
• LED Wattage: 26 watts
• Lumens: 4,087 lumens
• Efficacy: 142 lumens per watt
• Color Temperature: 5000 kelvins (Cool)
• Color Accuracy: 75 CRI
• Lens Material: Soda Lime Silica Clear Glass
• Weight: 10 lbs

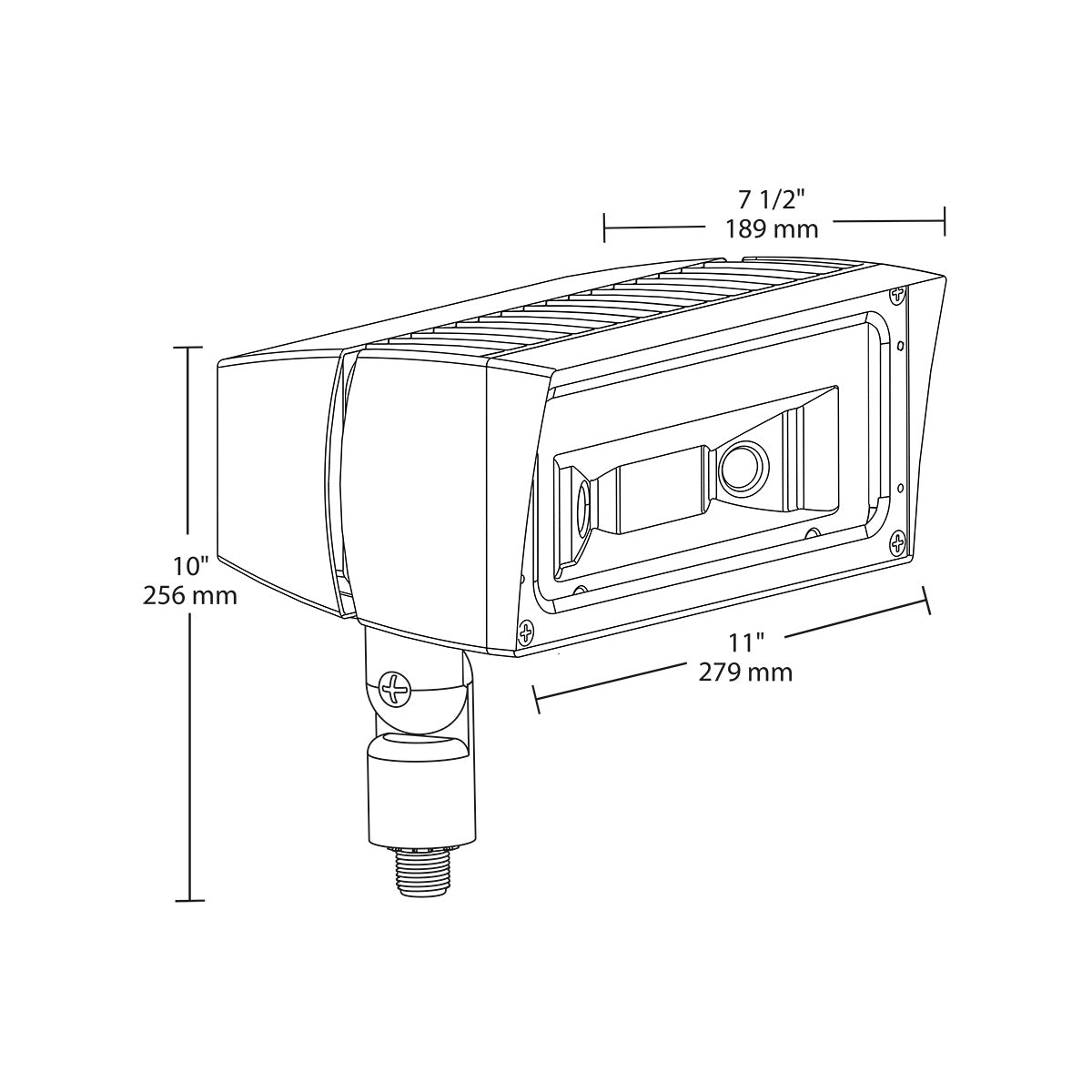

• Dimensions: 11" (279 mm) length x 7.5" (189 mm) width x 10" (256 mm) height
• Operating Voltage: 120-277V, 50/60Hz
• Power Factor: 0.991 at 120V, 0.906 at 277V
• Total Harmonic Distortion (THD): 7.54% at 120V, 16.25% at 277V
• Maximum Ambient Temperature: 104°F (40°C)
• Minimum Starting Temperature: -40°C (-40°F)
• Ingress Protection Rating: IP66 for dust and water
• Mounting: Heavy-duty mounting arm with "O" ring seal & stainless steel screw
• Lifespan: 100,000 hours (based on IES LM-80 and TM-21 calculations)

Features

• Ultra-efficient LED and optical design with high efficacy of 142 lm/W
• Replaces 100W Metal Halide floodlights
• Patent-pending "Air-Flow" technology heatsink for enhanced thermal management
• Die-cast aluminum housing and lens frame for durability
• Suitable for wet locations and mounting within 4 feet of the ground
• Driver includes 0-10V dimming control, capable of dimming down to 10%
• Mercury and UV free, RoHS-compliant components
• 3-step MacAdam Ellipse binning for consistent fixture-to-fixture color
• Color temperature warranty: color shift limited to 200K over 5 years
• NEMA Type 7H x 6V beam spread
• DLC Listed as an ultra-efficient premium product qualifying for highest tier rebates
• 5-Year warranty covering light output, color stability, driver performance, and finish
