Feedthrough QUICKPORT™ F-Connector, Nickel Plated, White Housing – Coaxial Cable Connector

The Leviton Feedthrough QUICKPORT™ F-Connector is a nickel-plated, female-to-female 75 Ω coaxial cable adapter designed for pass-through applications such as TV, VCR, DVD, satellite, and home theater systems. This connector features screw-on front and rear connections and snaps into any QUICKPORT housing, including flush- and surface-mount outlets, Multimedia Outlet System (with adapter), Decora® Inserts, patch panels, and patch blocks. It is suitable for electrical distributors and lighting solutions providers offering wire and cable accessories or switchgear components.

Specifications

• Manufacturer Part #: 41084-FWF
• Body Material: High-Impact Fire-Retardant Plastic
• Color: White
• Electrical Impedance: 75 Ω
• Frequency Range: DC - 3.0 GHz
• Insertion Loss: ≤ 0.2 dB @ 3.0 GHz
• Return Loss: ≥ 26 dB @ 3.0 GHz
• Contact Resistance: < 4 Milliohms
• Holding Force: > 160 grams initial, > 120 grams after insertion

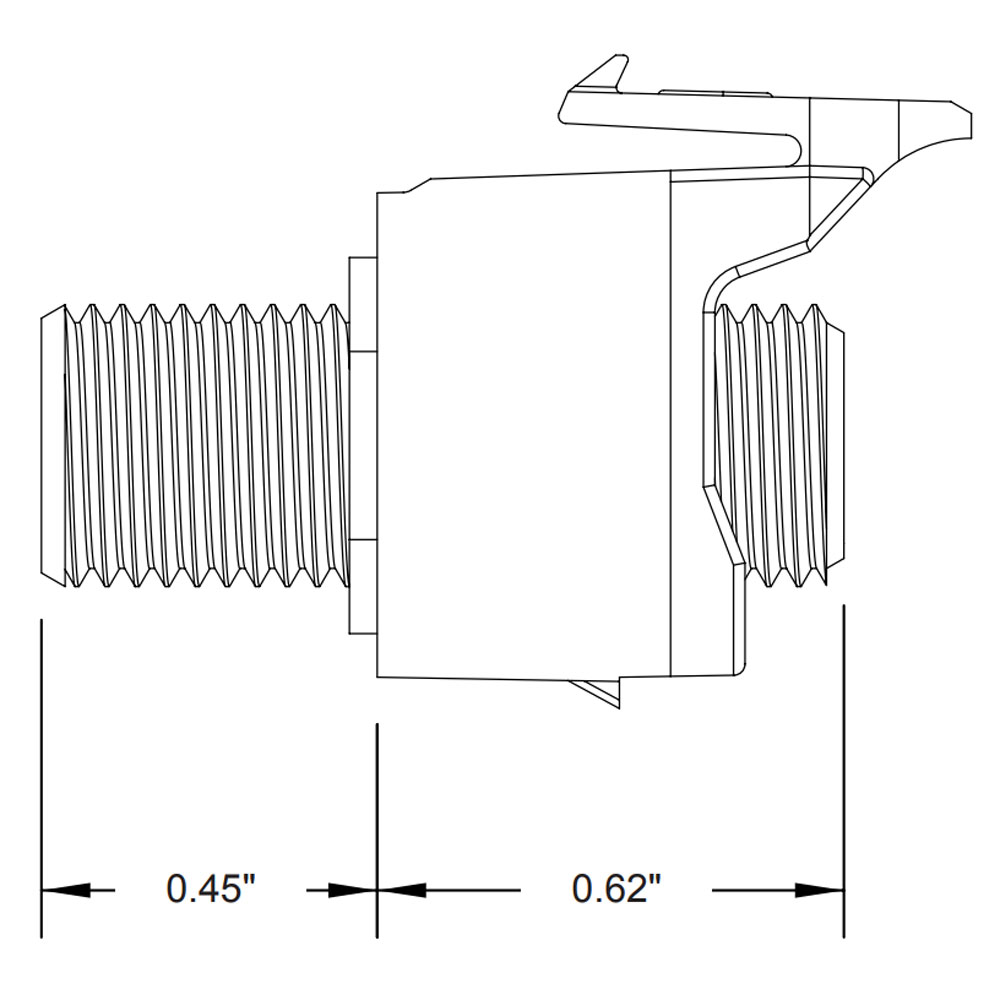

• Dimensions: 0.58" (H) x 0.64" (W) x 0.45" (Depth front) + 0.62" (Depth rear)
• Flammability Class: Rated V-0 Per UL 94
• Country of Origin: Taiwan

Features

• Nickel-plated connector body with tin-plated center conductor contact
• Compatible with all QUICKPORT wallplates and housings
• Female-to-female adapter for quick screw-on connections
• Pass-through design for seamless cable termination
• Snap-in installation into QUICKPORT housings, including outlets, patch panels, and blocks
• UL Listed and compliant with Society of Cable Telecommunications Engineers (SCTE) standards
