Description
Features
- Compatible with all QuickPort wallplates and housings
- Frequency range equals DC-3.0 GHz
- Female-female adapter for quick screw-on connections
- Nickel-plated connector has tin-plated center conductor contact
- 75 ohm impedance
Specifications
- Country of Origin: Taiwan
- RoHS Compliant: True
Material Specifications
- Body Color: Brown
- Body Material: High-Impact Fire-Retardant Plastic
- Contact Surface Material: Nickel-Plated
Mechanical Specifications
- Cable Type: RG-6 RG-59 Coaxial
- Position / Conductor: Female to Female
- Termination Type: Screw-On Front and Rear F Plugs
Standards and Certifications
- FCC: Part 68 Compliant
- NEC: Article 800 Compliant
- UL: Certified
Environmental Specifications
- Flammability: Rated V-0 per UL 94
Downloads
Product Specification
Leviton 41084-FxF 40831-0Bx Feedthrough QuickPort F-ConnectorsInstruction Sheet

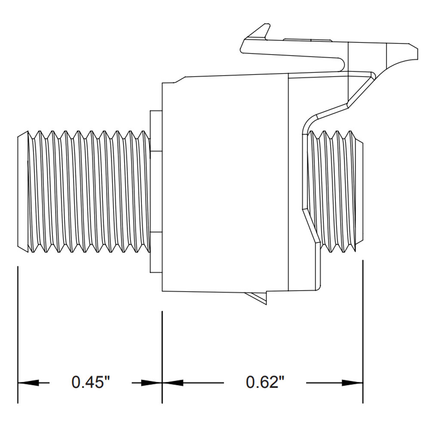

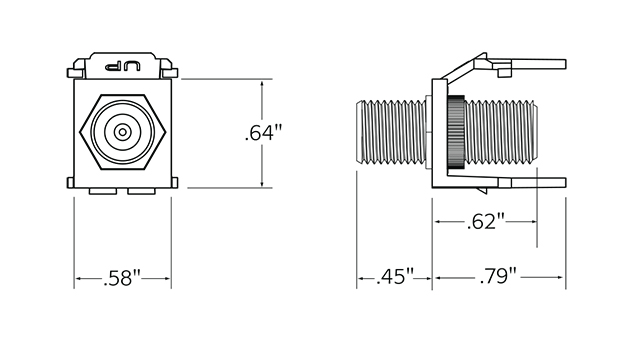

Leviton IST 41084-FxF 40831 QuickPort F-Type Bulkhead ModuleDimensional Drawing
41084-FxF41084-FxF
Other Documents
Document-135270-Dimensional DataMore Information
Manufacturer Catalog Number
41084-FBF
Weight
1.2300
Country of Origin
Taiwan
Color
Brown
Body Material
High-Impact Fire-Retardant Plastic
Flammability Class
Rated V-0 Per UL 94
