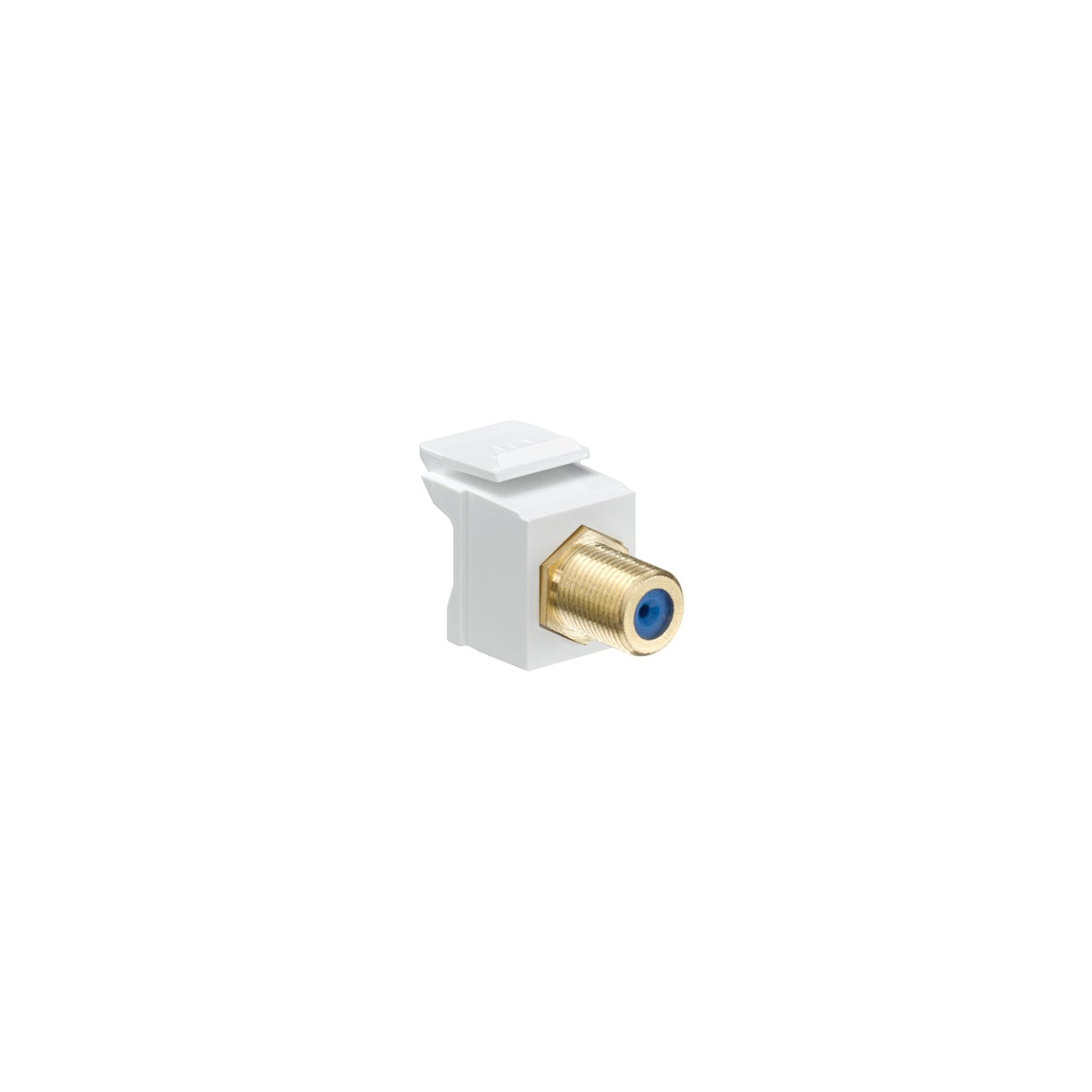

Feedthrough QuickPort F-Connector, Gold-Plated, White Housing - Coaxial Cable Adapter

The Feedthrough QuickPort F-Connector is a gold-plated, female-to-female 75 Ω coaxial cable adapter designed for use with QuickPort wallplates, housings, patch panels, and patch blocks. It facilitates quick screw-on connections for applications including TV, VCR, DVD, satellite, and home theater systems. This module is compatible with multiple QuickPort mounting options, providing reliable pass-through connectivity for coaxial cables terminated with “F” plugs. Suitable for electrical distributors and lighting solutions providers requiring high-quality wire and cable components and switchgear supplier compatibility.

Specifications

• Manufacturer Part #: 40831-BW
• Body Material: High-Impact Fire-Retardant Plastic
• Flammability Class: Rated V-0 Per UL 94
• Frequency Range: DC - 3.0 GHz
• Electrical Impedance: 75 Ω
• Insertion Loss: ≤ 0.2 dB @ 3.0 GHz
• Return Loss: ≥ 26 dB @ 3.0 GHz
• Contact Resistance: < 4 Milliohms
• Holding Force: > 160 Grams Initial, > 120 Grams after Insertion
• Insulation Material: Polypropylene
• Dimensions: Approximately 0.64" H x 0.58" W x 1.07" D (including connector threads)
• Country of Origin: China, Taiwan, or Vietnam
• Product Weight: 0.0296 lbs

Features

• Gold-plated connector body and center conductor contact for corrosion resistance and optimal signal transmission
• Compatible with all QuickPort wallplates and housings for flexible installation
• Female-to-female adapter enabling quick screw-on coaxial connections
• Pass-through design suitable for various coaxial applications including home theater and multimedia systems
• Constructed with fire-retardant materials meeting UL 94 V-0 standards
• UL Listed and SCTE compliant ensuring adherence to industry safety and performance standards
