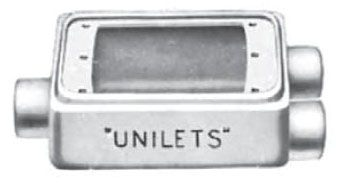

FDCC175A Cast Hub Device Box – Electrical Conduit and Device Box

The Appleton™ FDCC175A Cast Hub Device Box is designed for use in electrical distribution and lighting solutions, particularly where conduit runs require connection, direction changes, or branch runs. This device box is suitable for wire and cable management, allowing access for splicing, maintenance, and accommodating wiring devices such as switches and receptacles. It is ideal for electrical distributors and switchgear suppliers requiring durable, corrosion-resistant enclosures for rough service areas.

Specifications

• Manufacturer: Appleton
• Manufacturer Part #: FDCC175A
• Material: Epoxy Powder Coated Copper Free Aluminum
• Width: 2.81 Inch
• Height: 5.88 Inch
• Product Weight: 1.34 lbs
• UPC: 781381455848

Features

• Corrosion-resistant aluminum construction with epoxy powder coating for durability in indoor and outdoor installations
• Designed to connect and change direction of conduit runs, and allow branch conduit connections
• Provides access for conductor splicing and maintenance
• Can accommodate wiring devices such as switches and receptacles
• Ridge top construction for positive cover/gasket/box fit
• Internal grounding screw standard
• Weatherproof, raintight, and dust-tight when used with appropriate cast gasketed covers
