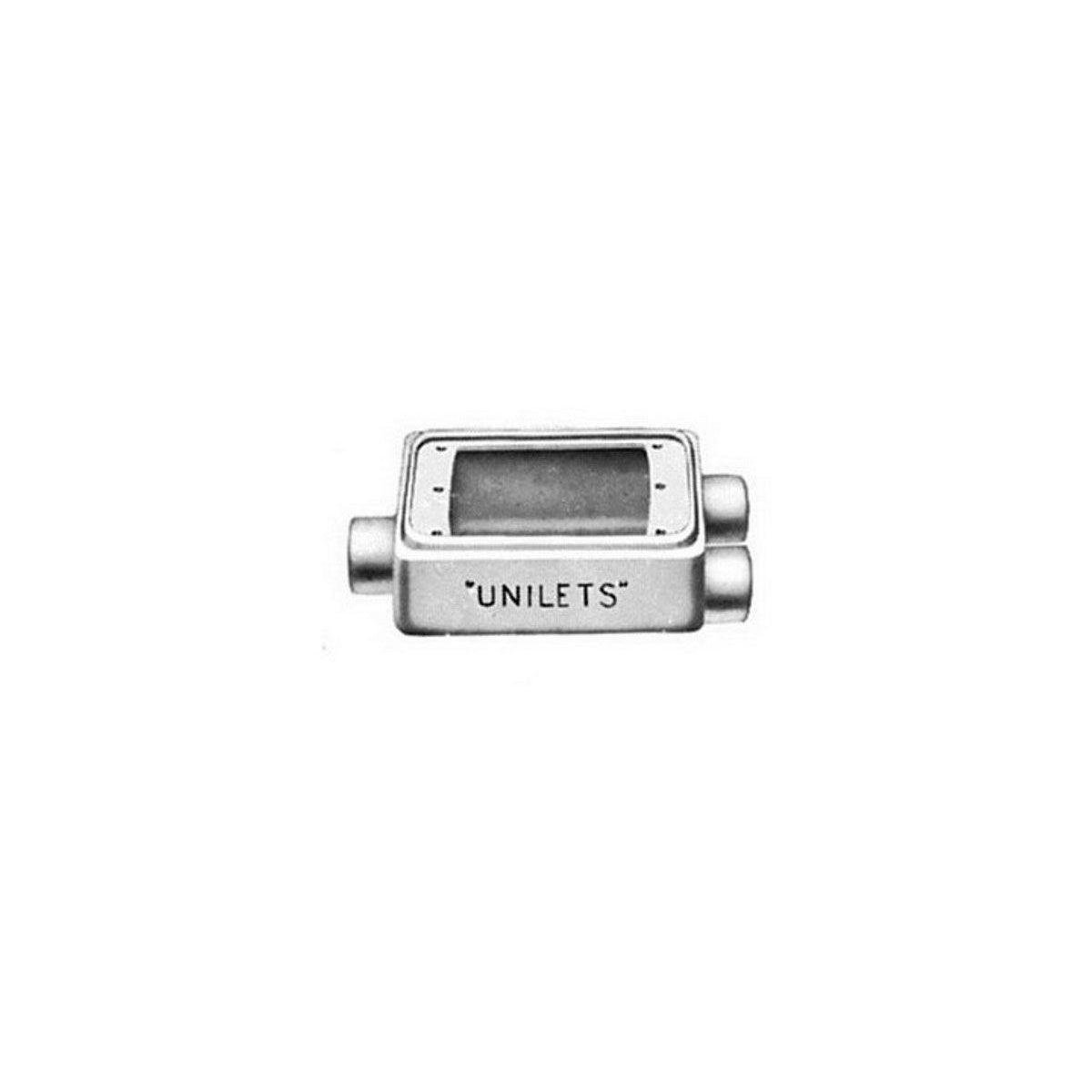

FDCC175, Cast Hub Device Box - Electrical Device Box for Industrial Applications

The FDCC175 Cast Hub Device Box by Appleton is designed for use with threaded rigid metal conduit (IMC) and serves as a durable enclosure for electrical switches and receptacles in commercial and industrial settings. This device box provides a secure and corrosion-resistant housing ideal for rough usage environments, offering a special conduit entrance arrangement with multiple hubs. It is suitable for electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers requiring reliable device boxes compliant with NEC/CEC standards.

Specifications

• Material: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
• Height: 5.88 Inch
• Width: 2.81 Inch
• Depth: 2.69 Inch
• Capacity: 25 Cubic Inch
• Number of Gangs: 1
• Number of Hubs: 3
• Hub Size: 3/4 Inch
• Shape: Deep
• Configuration Type: FDCC
• Weight: 3.07 lbs
• Includes: Stainless Steel Screw
• Mounting Hardware: Not Included
• Approval: UL 514A Listed
• Applicable Standards: NEC, CEC, NEMA FB-1

Features

• Constructed from malleable iron with zinc electroplated, chromate, and epoxy powder coated finish for corrosion resistance
• Designed for commercial and industrial applications including switches, receptacles, and special conduit entrance arrangements
• Ridge top construction ensures a positive seal with gasketed covers for weatherproof, raintight, and dust-tight performance
• Internal grounding screw standard for electrical safety and ground continuity
• Compatible with IMC and rigid metal conduit
• Includes stainless steel screws for secure installation
