Description
Features
- Weatherproof, Rain Tight and Dust Tight When Used with Cast Gasketed Covers
- Malleable Iron for High Tensile Strength and Ductility, Provides Greater Resistance to Impact and Shock
- Malleable Iron Boxes have Ridge Top Construction for Positive Cover/Gasket/Box Fit
- Accurately Tapped, Tapered Threads for Tight, Rigid Joints, Ground Continuity
- Internal Grounding Screws Standard
- Smooth, Rounded Integral Bushing in Each Hub Protects Conductor Insulation
- Corrosion Resistant
Additional Information
- Application Commercial, Industrial, Indoor, Outdoor
- Use with Threaded Rigid Conduit and IMC
- Applicable Standard Fed Spec A-A-50563, NEMA FB-1
Specifications
- Height: 5.88 Inch
- Width: 2.81 Inch
- Depth: 2.69 Inch
- Capacity: 25 Cubic Inch
- Number of Gangs: 2
- Number of Hubs: 2
- Hub Location: (2) End
- Hub Size: 3/4 Inch
- Material: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron
- Shape: Deep
- Configuration Type: FDC
- Mounting: Flush
- Approval: UL 514A/E2527/E18095, CSA C22.2, NEC, CEC
- Series/Model: FD
Downloads
CatalogOther 1
More Information
Manufacturer Catalog Number
FDC275
Weight
3.5250
Width
2.81
Height
5.88
Material
Gray Iron
Mounting Type
Flush
Type

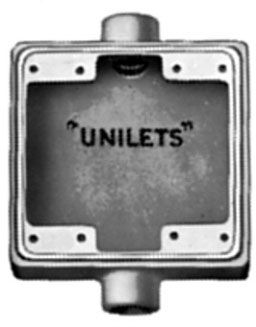

2-Gang Type FDC-2 Deep Cast Device Box
