FB269, Fire Barrier Pillow – Fire Protection Solutions

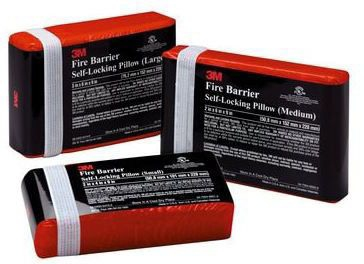

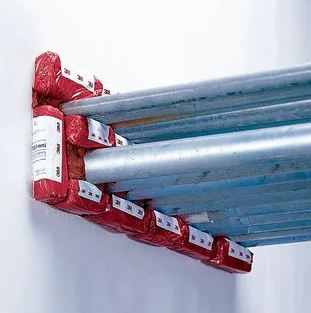

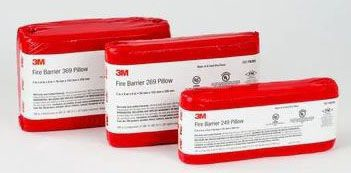

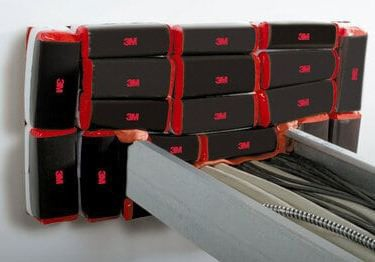

The 3M™ FB269 Fire Barrier Pillow is an intumescent firestop product designed for through-penetration firestop applications, providing up to 3 hours of fire protection. It is engineered to expand under fire conditions to form a hard char that effectively seals against flame spread, smoke, and toxic gases. Suitable for use by electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers, this fire barrier pillow is re-enterable and reusable, making it ideal for both new construction and retrofit installations.

Specifications

• Manufacturer: 3M
• Manufacturer Part #: FB269
• Product Weight: 12.5 lbs
• Dimensions: 9 in. (Length) x 6 in. (Width)
• UPC: 051115165313
• Material Composition: Intumescent flexible strips, mineral wool, adhesive, plastic film, hook & loop fastener, tape
• Fire Protection Duration: Up to 3 hours
• Physical Form: Solid mineral fiber pillow with intumescent covering in red plastic

Features

• Self-contained, intumescent design expands to form a hard char under fire conditions
• Provides up to 3 hours of fire protection in through-penetration firestop applications

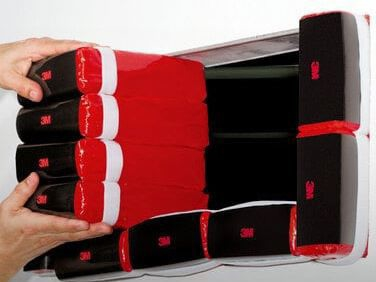

• Re-enterable and reusable for new or retrofit installations
• Compressible to a minimum of 33% for proper installation and firestop performance
• Can be resized in the field by lengthwise cutting and resealing with tape
• Encapsulation allows small punctures to facilitate air escape during compression
• Non-reactive and non-hazardous under normal use conditions
