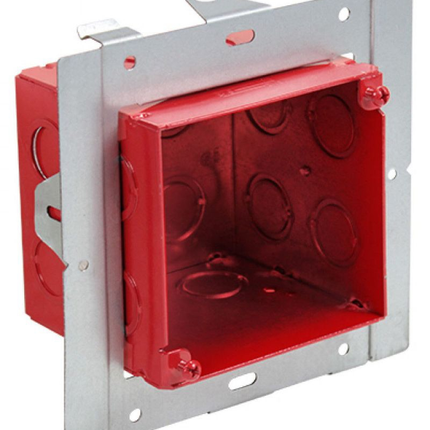

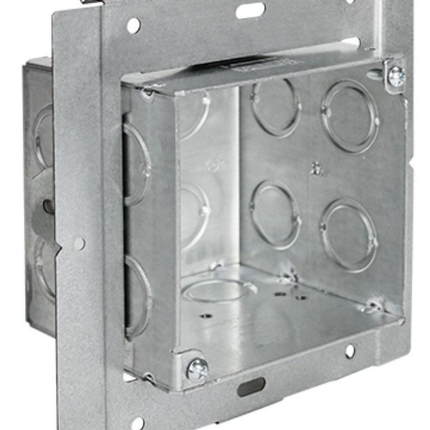

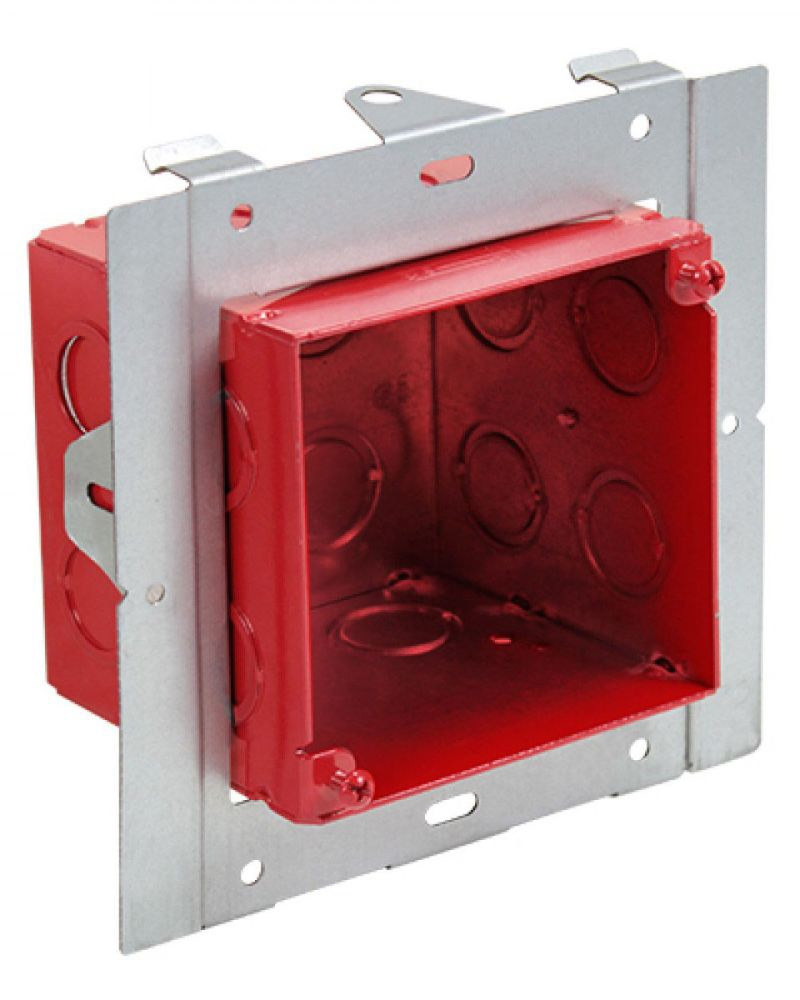

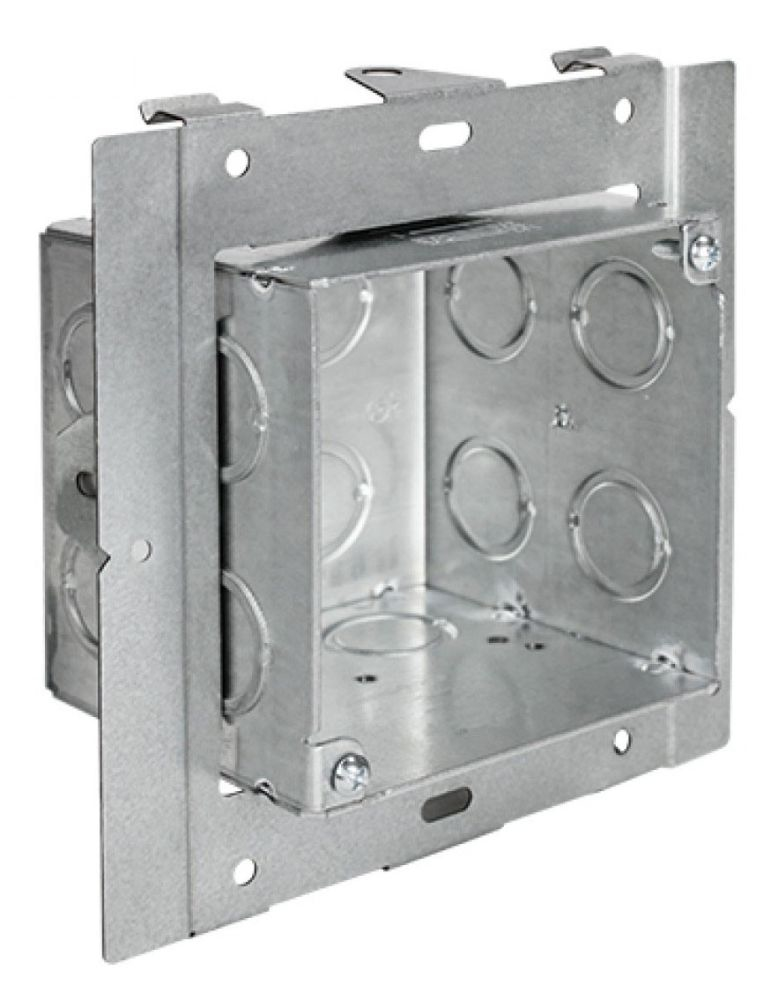

FA-UMAB Fire Alarm Switch Box - Adjustable 4" Square Electrical Box

The FA-UMAB Fire Alarm Switch Box by Orbit Industries is a 4-inch square, 3-1/2 inch deep electrical box designed for fire alarm installations. It features a built-in adjustable mounting adapter that allows the box to be positioned from flush up to 1-1/2 inches, facilitating versatile installation in various applications. This product is suitable for electrical distributors and lighting solutions providers requiring durable, adjustable wire and cable enclosures compliant with UL standards.

Specifications

• Width: 4 Inch
• Height: 4 Inch
• Depth: 3-1/2 Inch
• Material: 16 Gauge Welded Galvanized Sheet Steel
• Volume: 46.0 Cubic Inches

Features

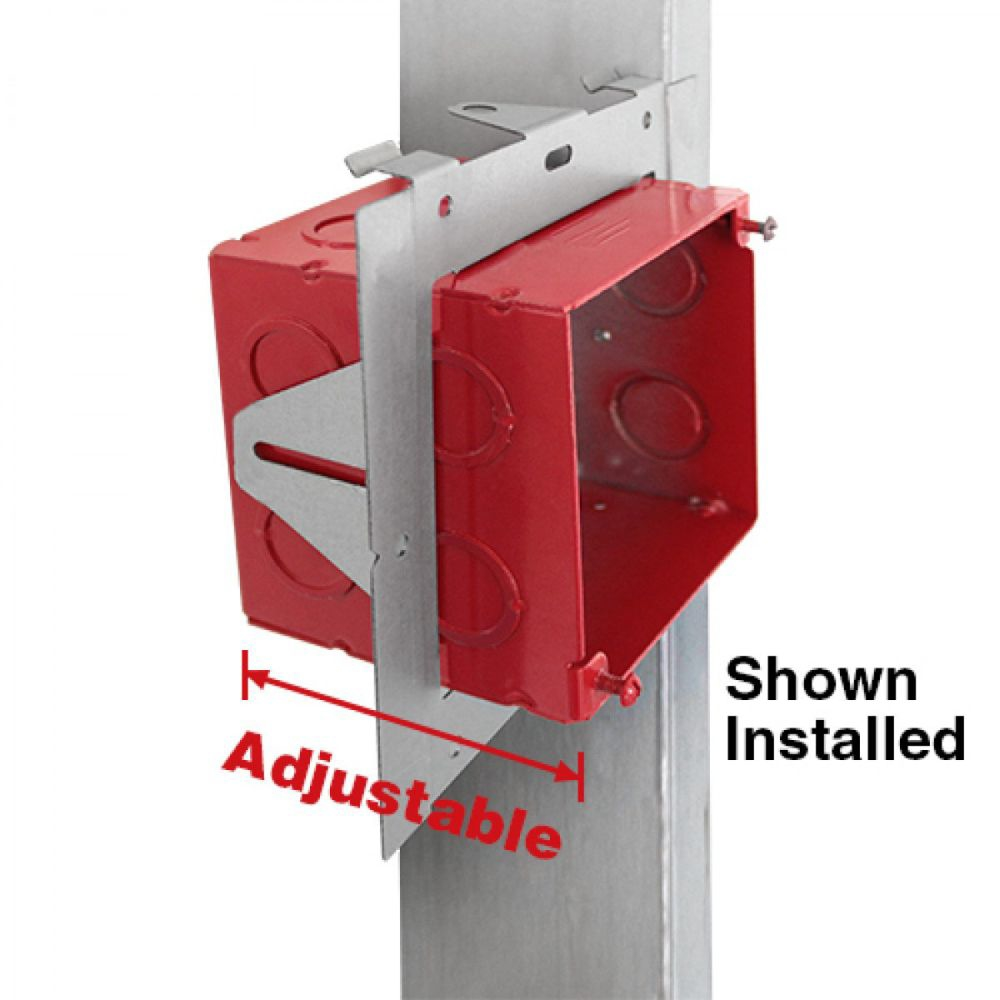

• Adjustable mounting adapter allows positioning from flush up to 1-1/2 inches
• Guided slots on each side enable easy adjustment and secure fastening by loosening screws

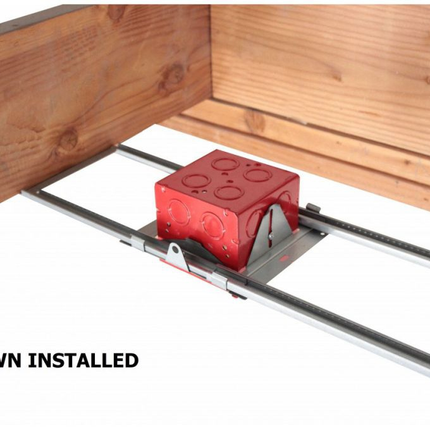

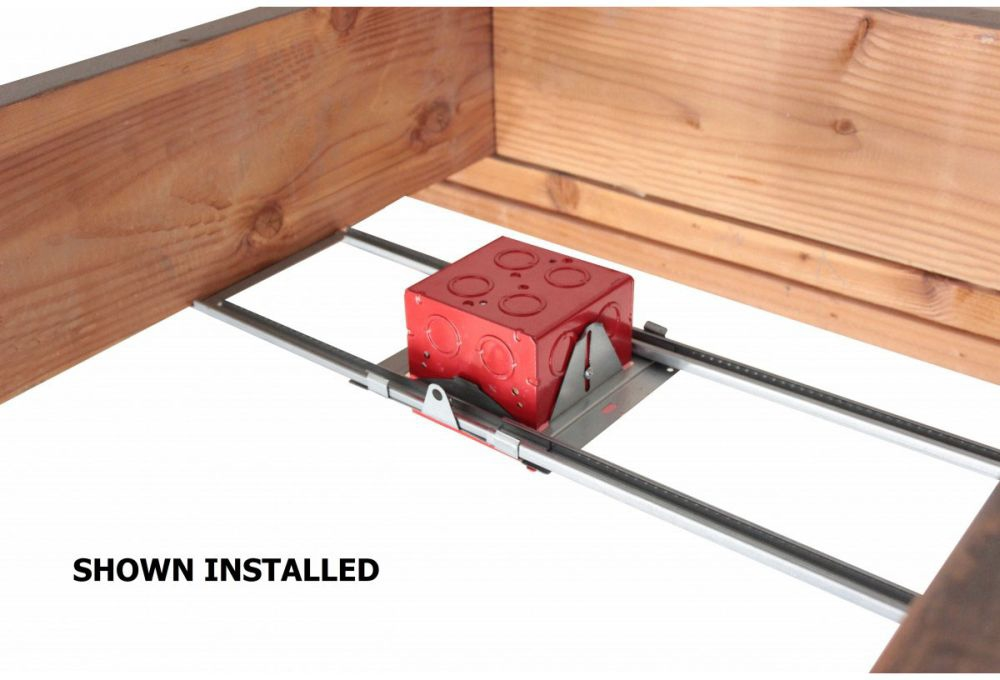

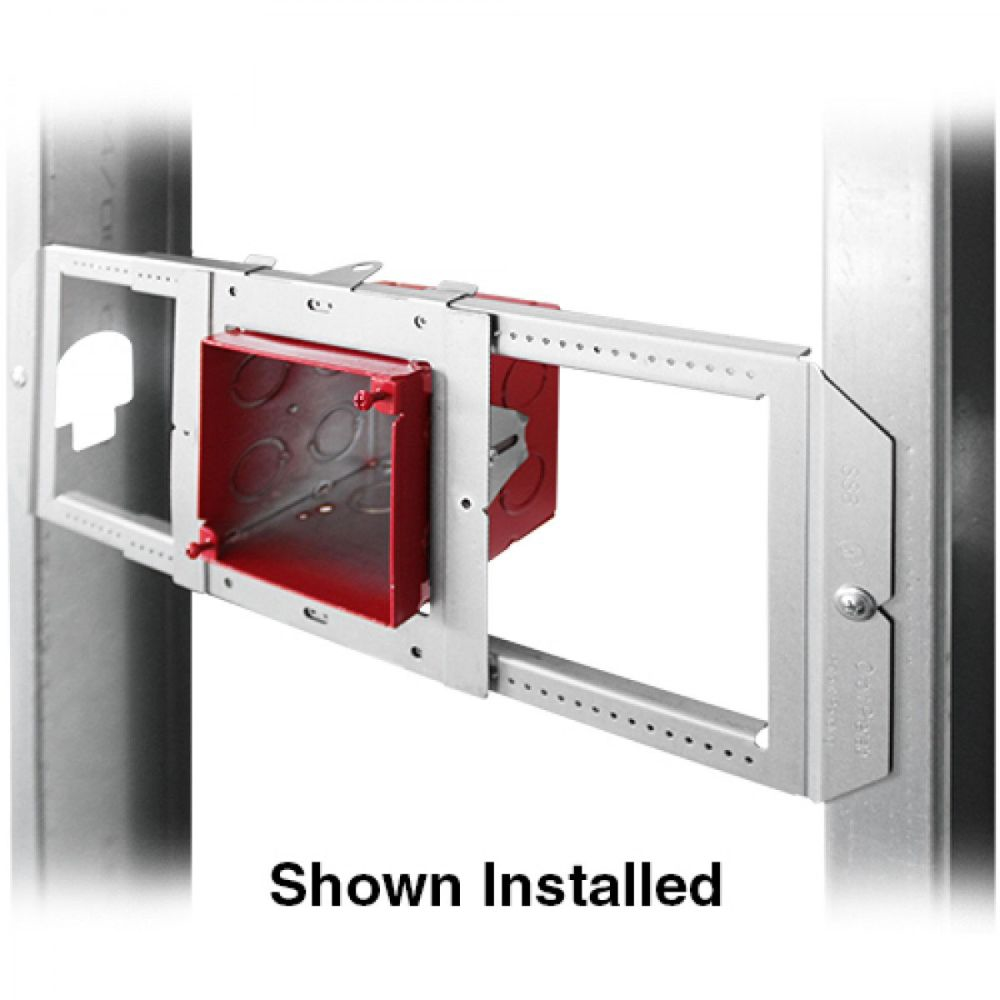

• Can be mounted directly to studs or used with back support bracket for between-stud or ceiling installation
• Durable red powder coat finish specifically for fire alarm applications
• Meets UL Standard 514A and is RoHS compliant
• Patented design
