Features

• Philips T5 Warranty period - 36 months.
• Sustainable Lighting Solution - low mercury.
• Ultra slim profile allows for flexibility in design.
• Less mercury combined with energy efficiency and long life reduces the impact on the environment.
• Our green end-caps mean you are using ALTO® environmentally-responsible lamps.
• Only 1.4mg of mercury per lamp.
• Slim profile lamp and ballast.
• Operates on programmed start electronic ballasts only.
• Available in 14, 21, 28, and 35 Watts with 3000, 3500, 4100 color temperatures.

Applications

• Ideal for general, decorative and architectural lighting in offices, retail stores, hotels, schools and hospitals.

Specifications

General Information

• Base: G5  [ G5]
• Life to 50% Failures Preheat (Nom): 24000 h
• Features: HE Alto®  [ High Efficiency Alto]
• System Description: High Efficiency
• LSF Preheat 2000 h Rated: 99 %
• LSF Preheat 4000 h Rated: 99 %
• LSF Preheat 6000 h Rated: 99 %
• LSF Preheat 8000 h Rated: 99 %
• LSF Preheat 16000 h Rated: 97 %
• LSF Preheat 20000 h Rated: 84 %

Light Technical

• Color Code: 830  [ CCT of 3000K]
• Initial lumen (Nom): 2900 lm
• Luminous Flux (Rated) (Nom): 2675 lm
• Color Designation: Warm White (WW)
• Luminous Efficacy (@ Max Lumen, Rated) (Nom): 104 lm/W
• Correlated Color Temperature (Nom): 3000 K
• Luminous Efficacy (rated) (Nom): 96 lm/W
• Color Rendering Index (Max): 85
• Color Rendering Index (Min): 80
• Color Rendering Index (Nom): 82
• LLMF 2000 h Rated: 96 %
• LLMF 4000 h Rated: 95 %
• LLMF 6000 h Rated: 94 %
• LLMF 8000 h Rated: 93 %
• LLMF 12000 h Rated: 92 %
• LLMF 16000 h Rated: 91 %
• LLMF 20000 h Rated: 90 %

Operating and Electrical

• Power (Rated) (Nom): 27.9 W
• Lamp Current (Nom): 0.170 A

Temperature

• Design Temperature (Nom): 35 °C

Controls and Dimming

• Dimmable: Yes

Mechanical and Housing

• Cap-Base Information: Green  [ Green Cap]

Approval and Application

• Energy Efficiency Label (EEL): A
• Mercury (Hg) Content (Nom): 1.4 mg

Product Data

• Order product name: 28W/830 Min Bipin T5 HE ALTO UNP/40
• EAN/UPC - Product: 046677230845
• Order code: 230847
• Numerator - Quantity Per Pack: 1
• Numerator - Packs per outer box: 40
• Material Nr. (12NC): 927990683022
• Net Weight (Piece): 104.500 g
• ILCOS Code: FDH-28/30/1B-L/P-G5-16/1150

Installation Diagrams

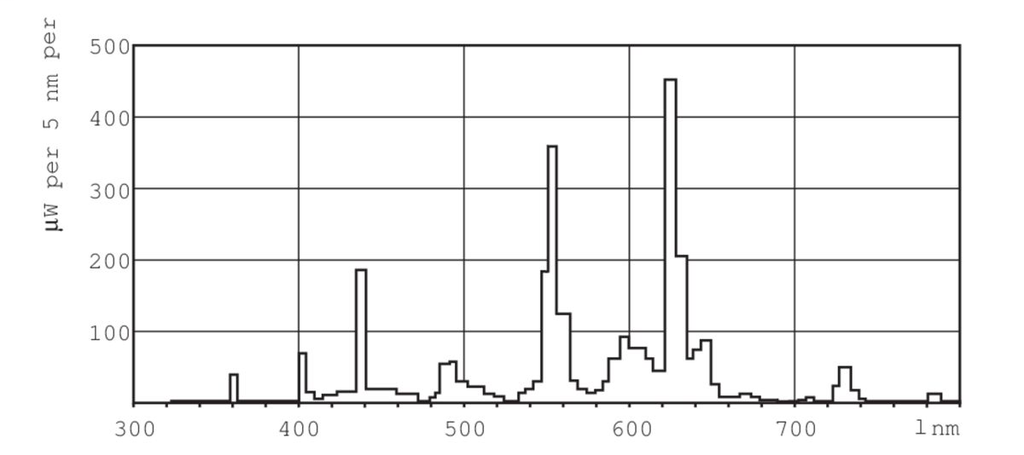

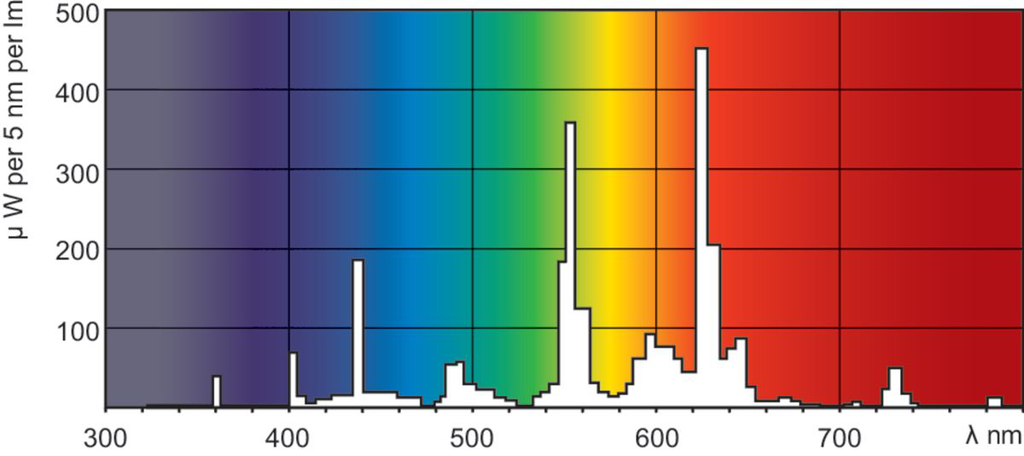

Performance Diagrams

Photometrics

Warnings

• Lamp contains mercury. Manage in Accord with Disposal Laws. See: www.lamprecycle.org or 1-800-555-0050
